Letro LEGEND II - Hose Cutting and Addition Tips for Pools; Tips on Hose Cutting for Larger Pools; Tips on Hose Cutting for Smaller Pools

TIPS FOR CUTTING HOSE IN A SMALL POOL,
AND FOR ADDING HOSES FOR LARGE
POOLS.
1. Tips on Hose Cutting for Larger Pools.
If the hose is short of the farthest end of the
pool, add an additional section of hose (Part #
LX17), one Swivel (Part # LX19), two Mender
Nuts w/O-Rings (Part # LX20), and one Hose

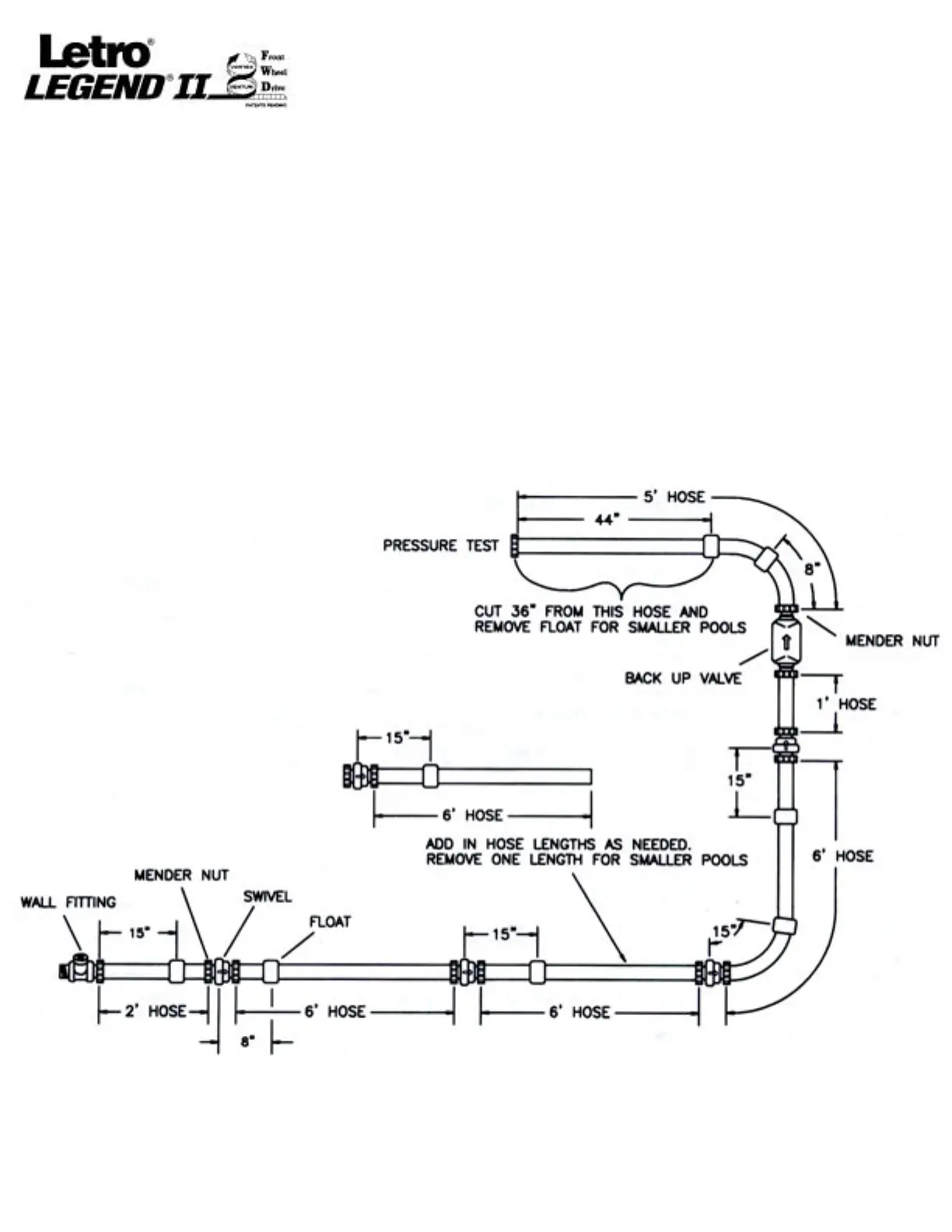

Float (Part # LXD10). See diagram below. Re-
measure and follow guide on page 7.
1. Tips on Hose Cutting for Smaller Pools.
If the hose hangs over the deck more than 9
feet or the pool is less than 6 feet deep and
narrow, cut 36 inches off the 5 ft. section hose
at the end of the feed hose and remove one
float. Then remove one 6 ft.hose (see
diagram), 1 swivel and 2 mender nuts. Re-
measure and cut hose according to the guide
on page 7.
