B. Pool Connections
The Legend II comes equipped to connect
to a female threaded 1-1/2" dedicated return
line. An adjustable gate valve with a
pressure gauge should be installed to allow
a regulated amount of water flow from your
pool system to the Legend II. For more
information contact our Technical Support
Department at 1-800-223-1695.
Also, if the pool doesn't have a dedicated
cleaner line please contact our Technical
Support Department at 1-800-223-1695
C. Installing the Twist Lock Pressure
Relief Valve (Wall Fitting)
II. Installation Instructions

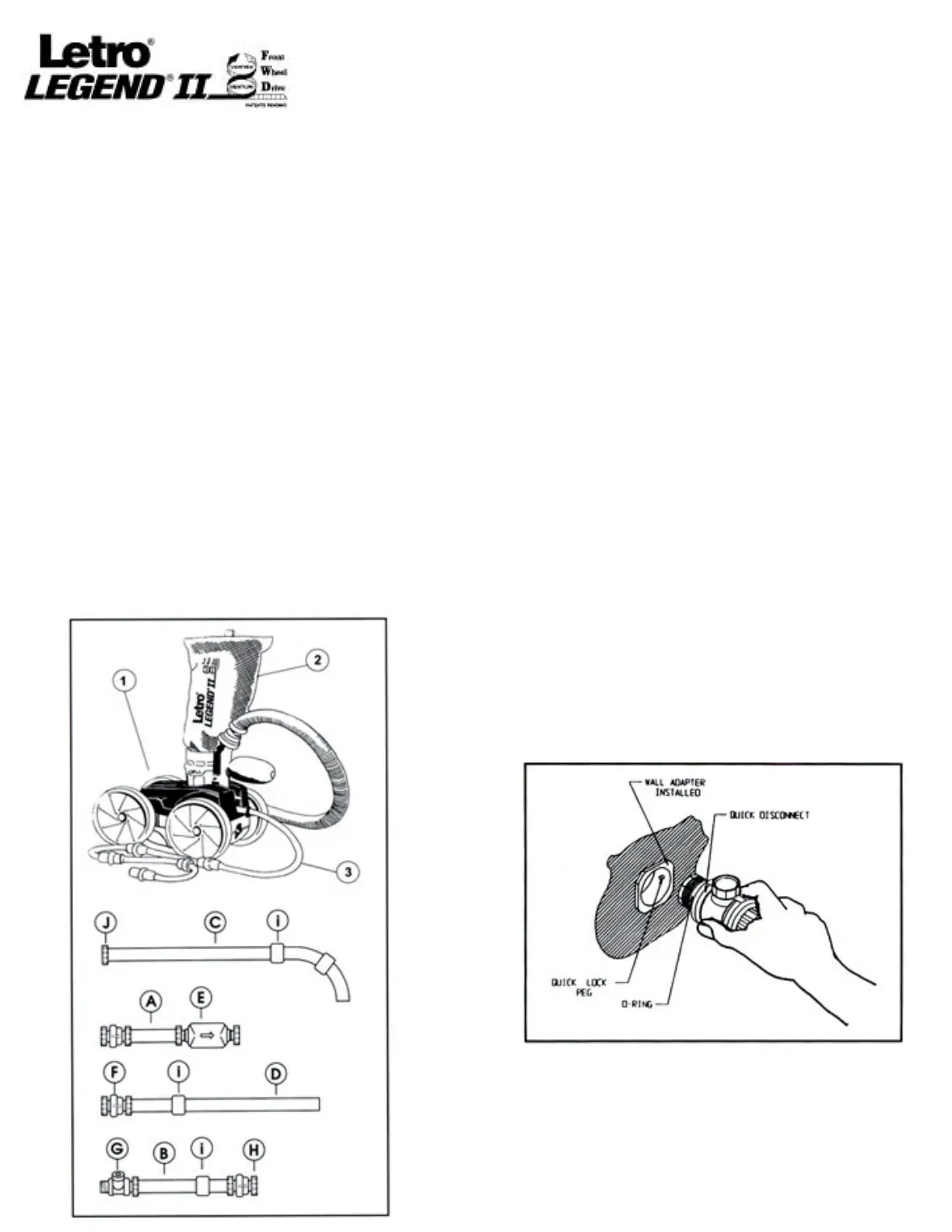

A. Legend II Components
The Legend II Box Contains:
1. Cleaner Head
2. Sand & Silt Bag
3. Sweep Hose
4. Complete Feed Hose
a. 1 - 1 ft hose
b. 1 - 2 ft hose
c. 1 - 5 ft hose
d. 3 - 6 ft hose
e. 1- Back-Up Valve
f. 4 - Swivels
g. 1 - Wall Fitting
h. 12 Mender Nuts
i. 7 - Hose Floats
j. 1 - Pressure Tester
1. Take out any existing pool cleaner and/or
wall fitting.
2. Turn on the filtration pump and booster
pump, flush out the plumbing line.
3. Turn off filter pump
4. Remove the Wall Adapter from the Wall
Fitting and screw Adapter by hand into the
dedicated line. Turn until tight.
5. Take the Wall Fitting and Twist Lock the
Wall Fitting into the Wall Adapter 1/4 turn; to
a snug fit. Once the Wall Adapter is secure
you can now twist lock and unlock to remove
Wall Fitting with ease from the Wall Adapter.
