INSTALLATION GUIDE

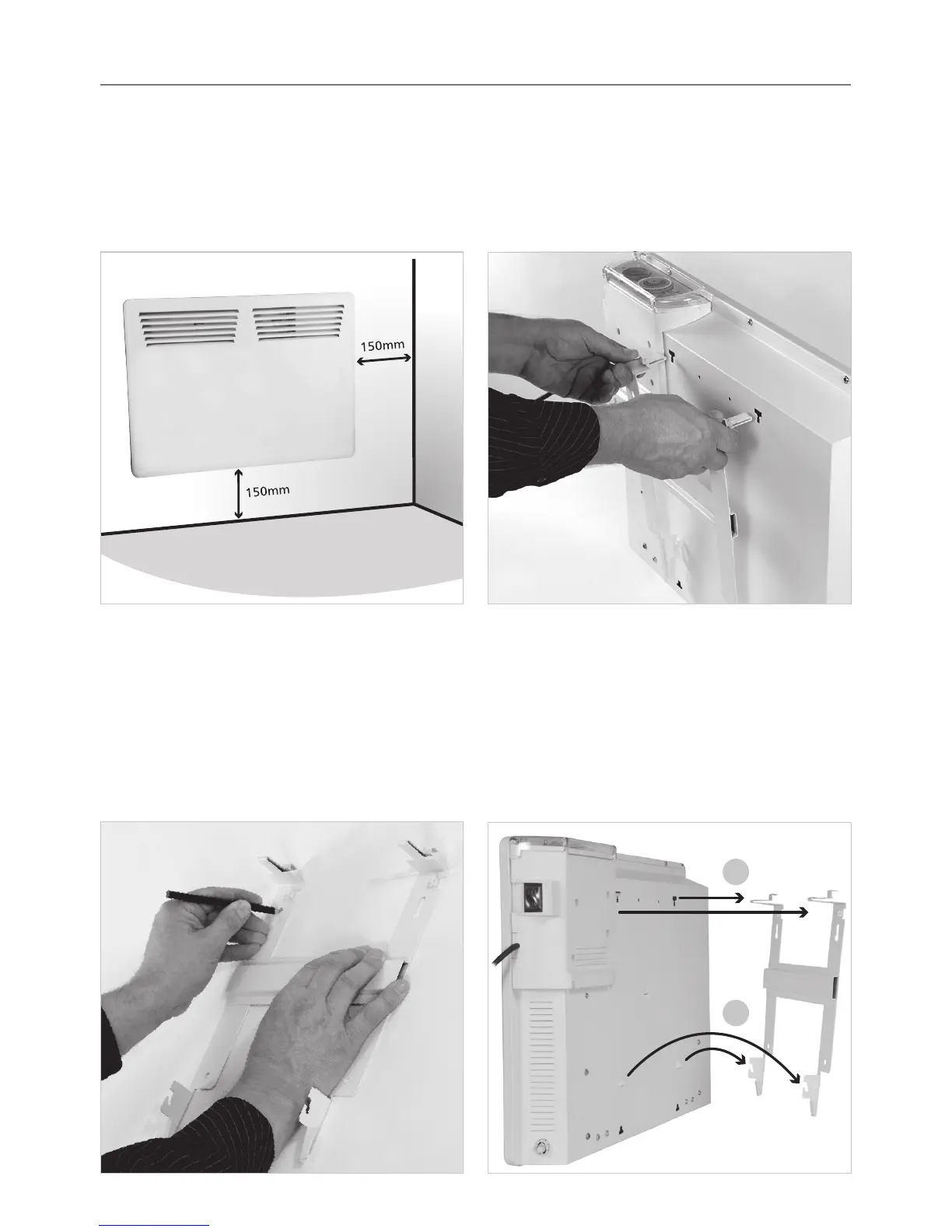

1. Whenmountingtheheaterontothewall
ensure the heater is unplugged from the mains
socketandallpowerswitchesareturnedoff.
Asuitablewallmountingarearequiresatleast
150mmofemptyclearanceonALLfoursides.
3. Positionthebracketonthewallinthedesired
locationandmarktheholesonthewallfor
drilling,makingsurethebracketislevel.
Drillholestoasuitabledepthandsecurethe
mountingbrackettothewallwiththefour
mounting screws supplied. For masonry walls
use the wall plugs with screws provided.
2. Detachthemountingbracketfromthebackof
thepanelheaterbypushingdownonthetop
bracketandthenpullingthetopbracketsout.
Thebottomsectionwillthenslidedownand
out,releasingthemountingbracket.
4. Hanguptheheateronthebracketsandsecure;
Firstlylocatetheheaterontothelowerbracket
andpushbacktolocateandclicktheupper
bracketsintoposition.Checkheaterissecure
andplugheaterintomainssocket.
