5
LED Definition

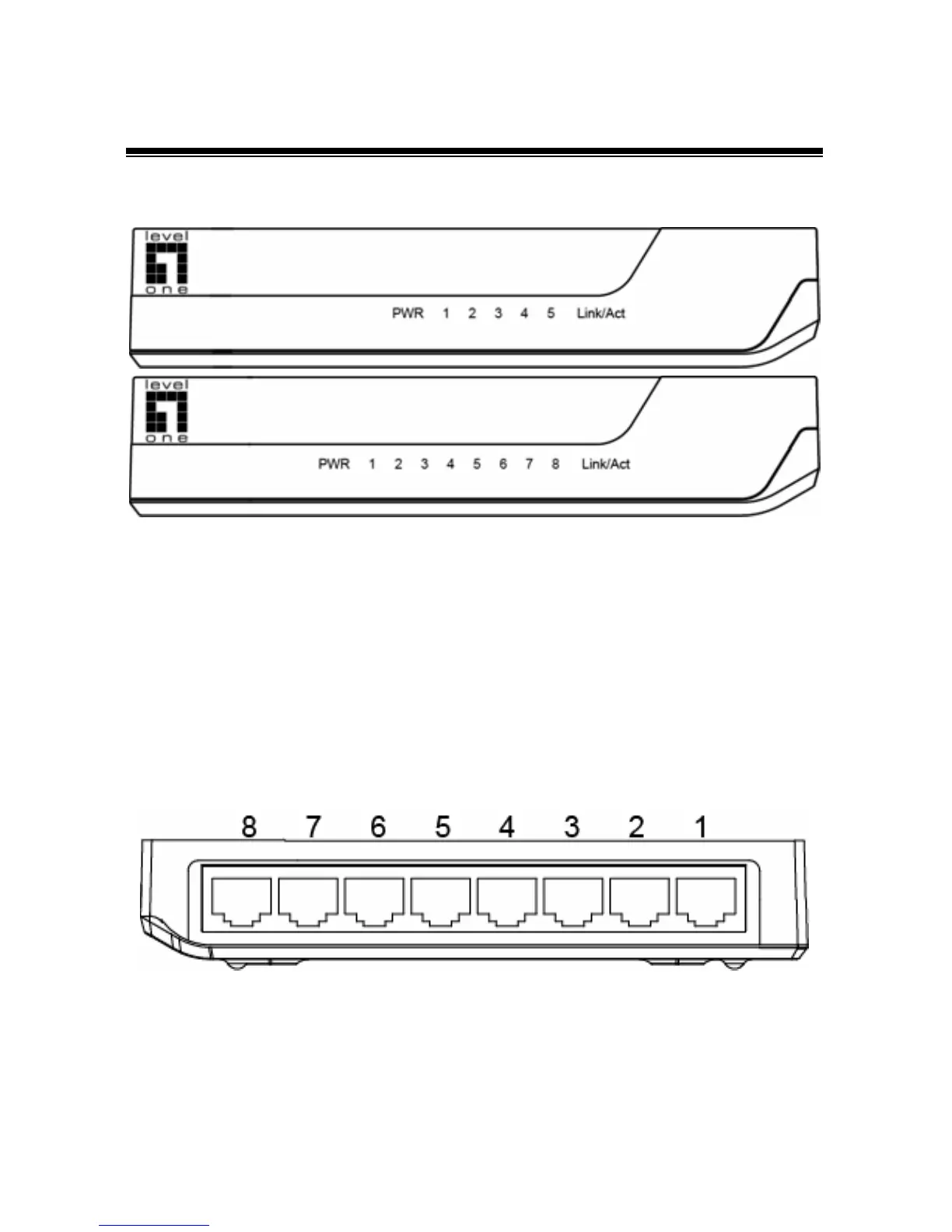

FSW-0511/FSW-0811 Front Panel
PWR This indicator will light up when the Switch powers up
Link/Act One LED indicator will light green when a device is
connected to the corresponding port. It flashes when
data is being transmitted or received on the connection.
Rear Panel
The rear panel of the FSW-0511/FSW-0811 consists of 5/8
10/100Mbps RJ45 Ports. All ports can work as the Uplink port.
