VLAN Tag Priority Decision: Decide out layer VLAN Tag’s priority, use internal VLAN tag’s priority or 802.1p
remarking decision priority.
Q in Q direction: Select Q in Q direction, which port adds tag, and which port removes tag.
5.12 Remote Setting
5.12.1 TS1000 Functions

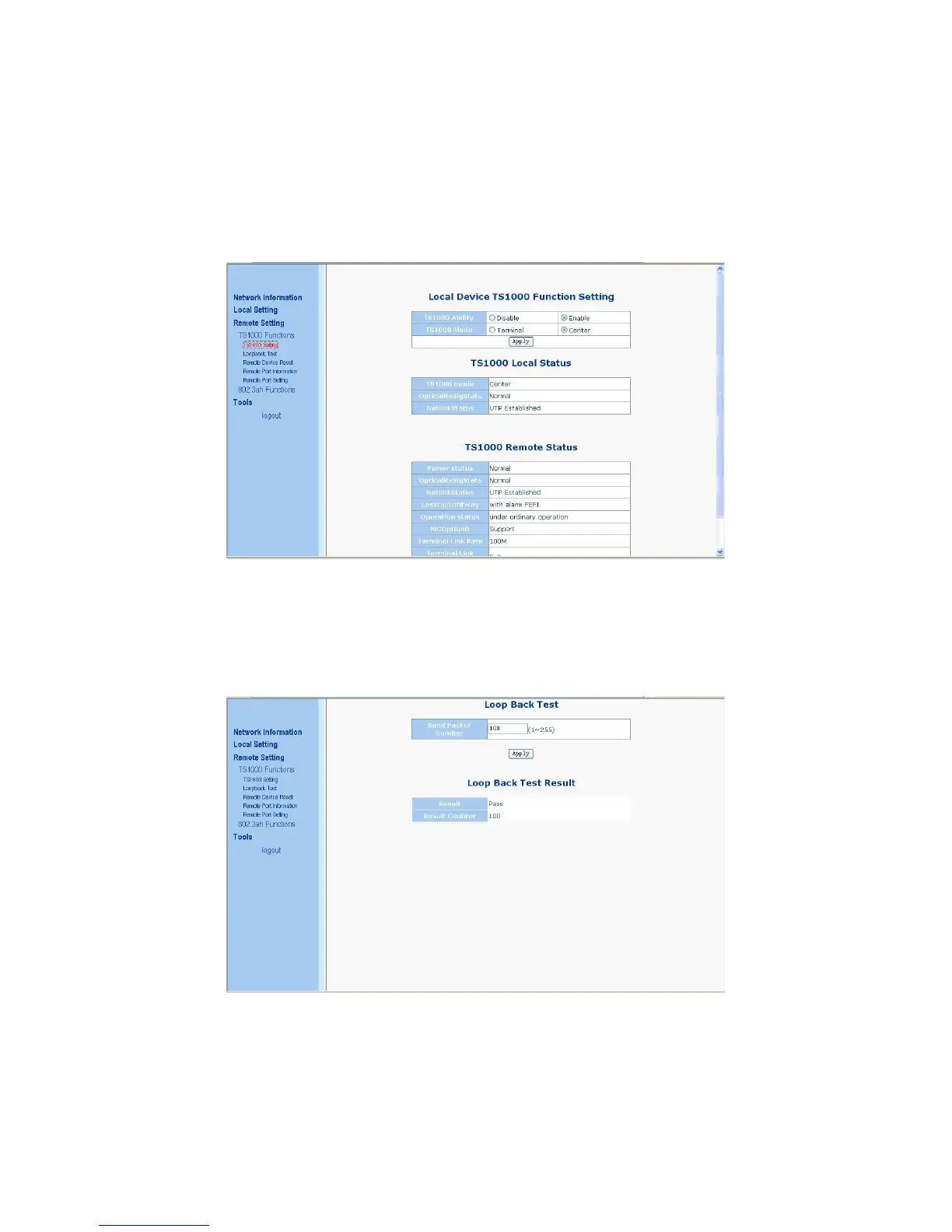

5.12.1.1 TS1000 Setting
This page could enable/disable TS1000, and set the TS1000 as center mode or terminal mode.
If TS1000 is enabled, the TS1000 information will be displayed in the web. And if it’s in center mode, and remote
device is in terminal mode, remote TS1000 information will also be shown in the page.
5.12.1.2 Loopback Test
This page could start TS1000 loopback function. User could set TS1000 loopback packet number.
After click the “Apply” button, the loopback result will be displayed in the web.
