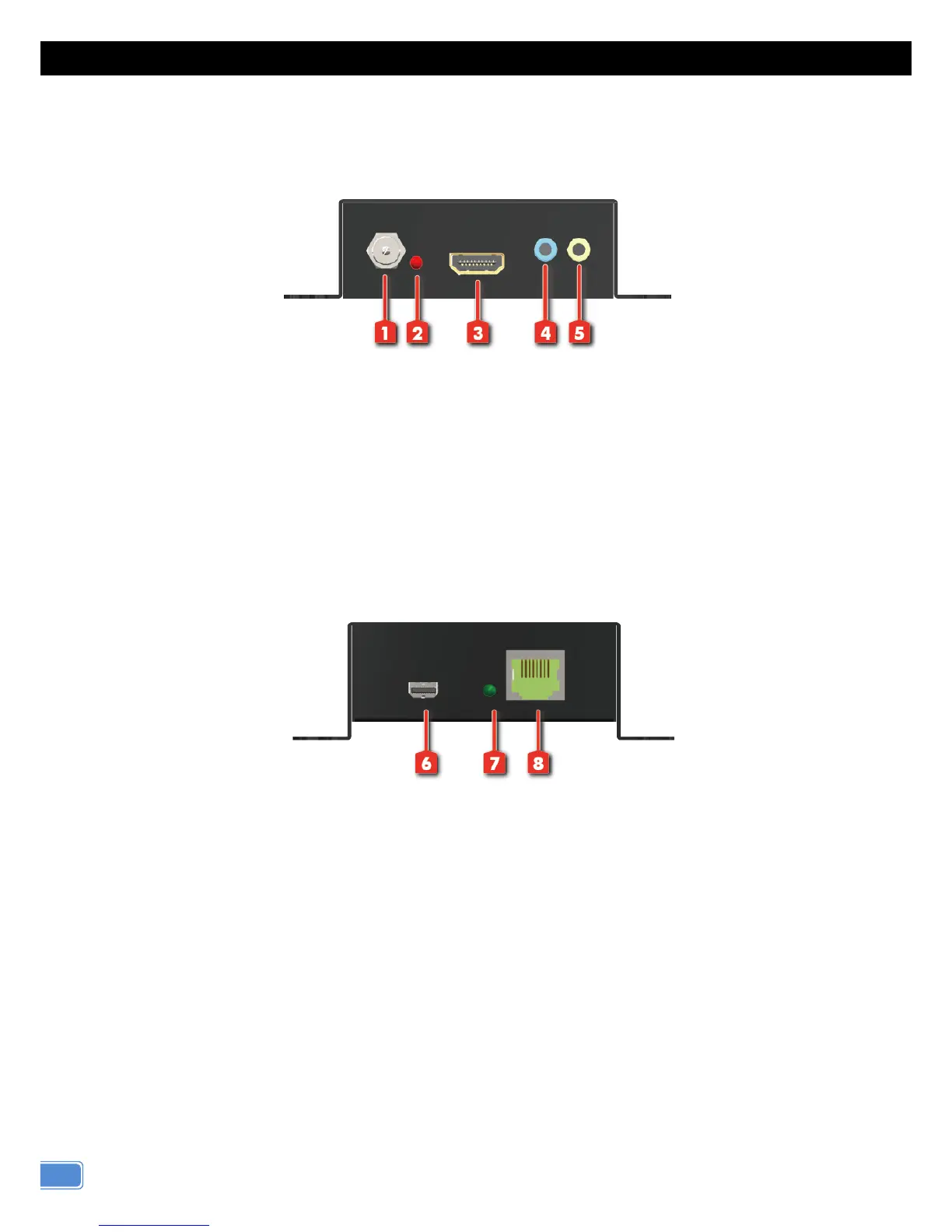

PANEL DESCRIPTIONS
Transmitter
►
HVE-9005T
Front Panel
1. Latch-locking power jack: Connect to 5V DC power supply
2. LED: Power indicator
3. HDMI IN: Connects to a HDMI source with a HDMI male-male cable
4. IR Blaster: Infrared 3.5mm socket for plugging in the extension cable of IR blaster
5. IR Receiver: Infrared 3.5mm socket for plugging in the extension cable of IR receiver
Rear Panel
6. Mini-USB: F/W update
7. LED: T/R link indicator
8. RJ45: Plug in a Cat-5/5e/6 cable that needs to be linked to the receiving unit HVE-9005R
