3
Power connection:
This industrial Fast Ethernet 8 port POE switch is equipped with 4 x 10/100/1000M PSE port, each port can
deliver 30W POE power. It comes with a 6 pin terminal block. It can be connected with 48-56VDC power
source. Always Make sure to use 56VDC for IEEE802.3at or 30W power connection.
WARNING any exceeded input voltage will not make this unit function and may damage this unit.

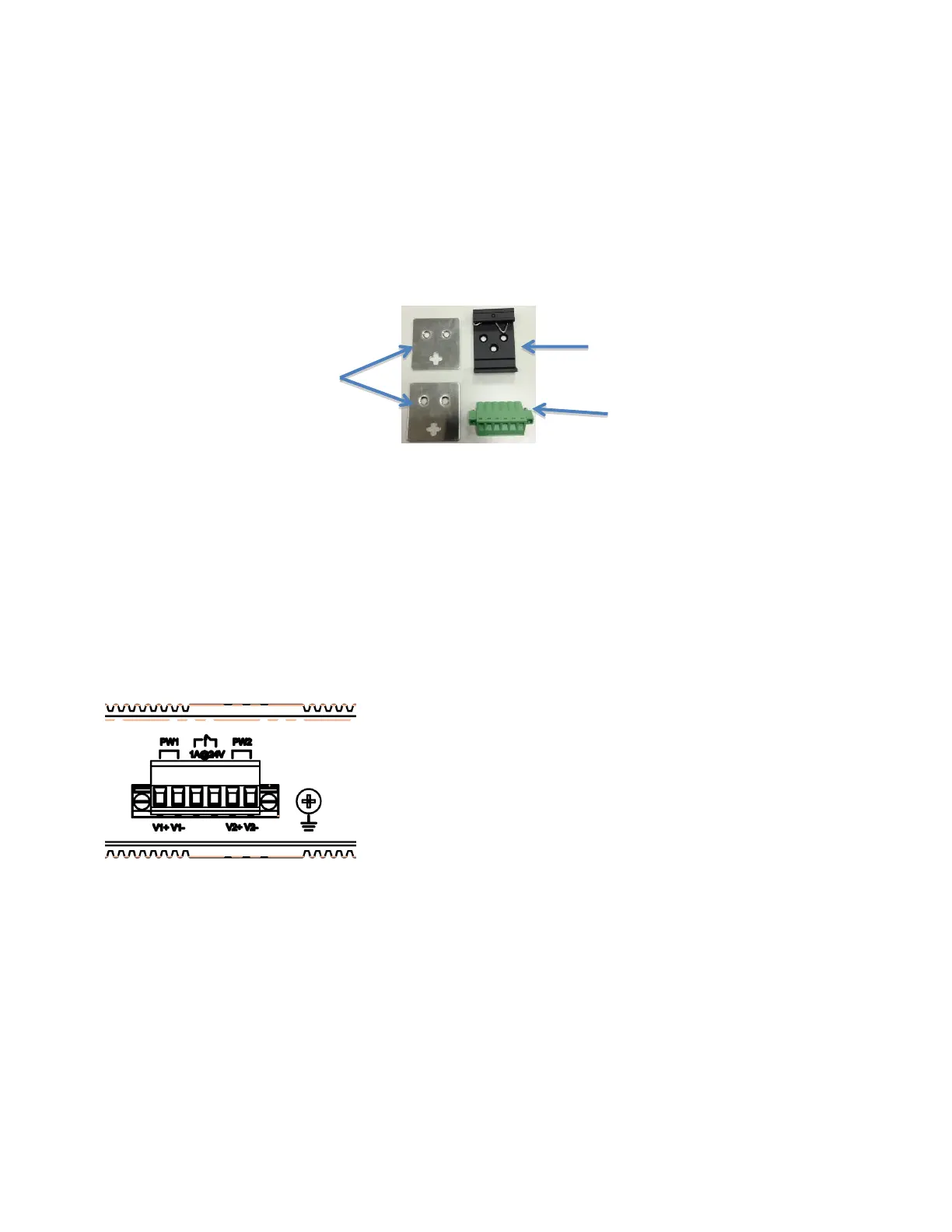

To make power connection Follow the printed polarity for V1+, V1-,
V2+, V2-, and ground. Connect positive wire to V+ , connect negative
wire to V-, also connect neutral wire to the ground screw as shown .
Relay -- You may use 24V@1A relay connection to your external
device for special purpose. When 2 powers are connected, the relay is
in OPEN mode. When any power source fails, the relay change to
SHORT status.
Power connecting procedure:
STEP 1 Pull out 6 pin terminal block.
STEP 2 Connect wire to V1+, V1-, or V2+, V2-, and Ground the neutral wire to the ground screw.
STEP 3 Plug back 6 pin terminal block to its place.
WARNING
Always ground the power source to maintain a clean power input. Due to too many cheap made power
supplies, it creates too much noise, and it will cause the power input fluctuates when connect to this
unit. To avoid this, always ground the power source to gain a clean power input.
Din Rail Bracket x 1
Wall mount bracket x 2
6 pin Terminal Block x1
Installation package:
