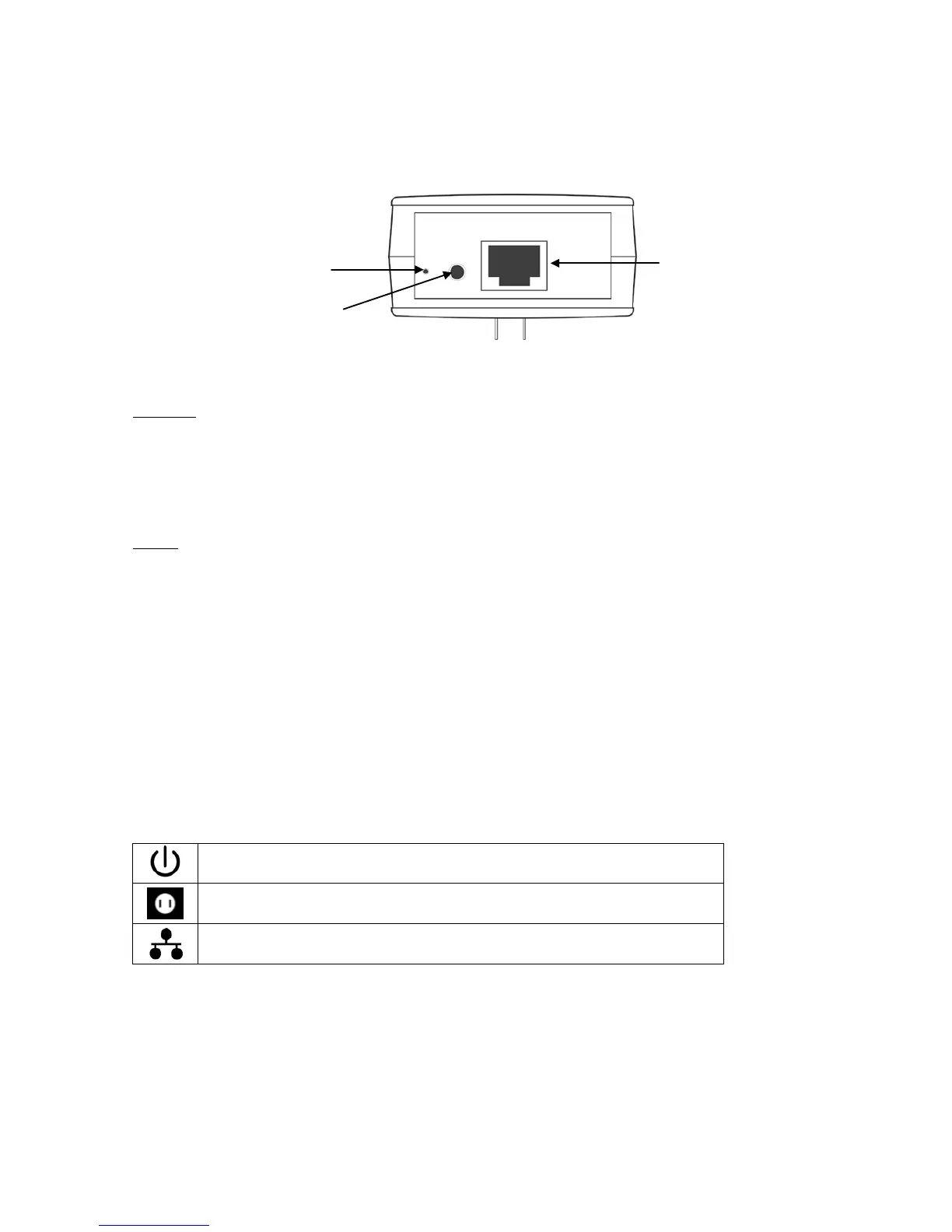

The bottom casing contains a recessed Reset Button, a Security Button, and an Ethernet
Port.
(INSERT FINAL CASING DESIGN)
Buttons
Security
This button is designed to generate an individual HomePlug AV network group under
multiple nodes environment. Please refer to the optional Individual HomePlug AV
Network Setup section below for more details.
Reset
This button is used to clear ALL data and restore ALL settings to the factory default
values.
Note: The HomePlug AV Ethernet Bridge must be plugged in to restore it to factory
defaults. Using a small object like a paper clip, depress and hold the Reset button until
the status lights begin to flash. The Reset button will need to be depressed for about 10
to 15 seconds for the reset to occur.
LED Indicators
The Powerline Ethernet Adaptor has three LEDs indicator:
Turn on when connected to AC power supply.
Turn on when detected and connected with another HomePlug adaptor
within the network.
Turn on
when connected to the Ethernet card of the computer or
Ethernet Hub / Switch.
Ethernet Port
Reset Button
Security Button
