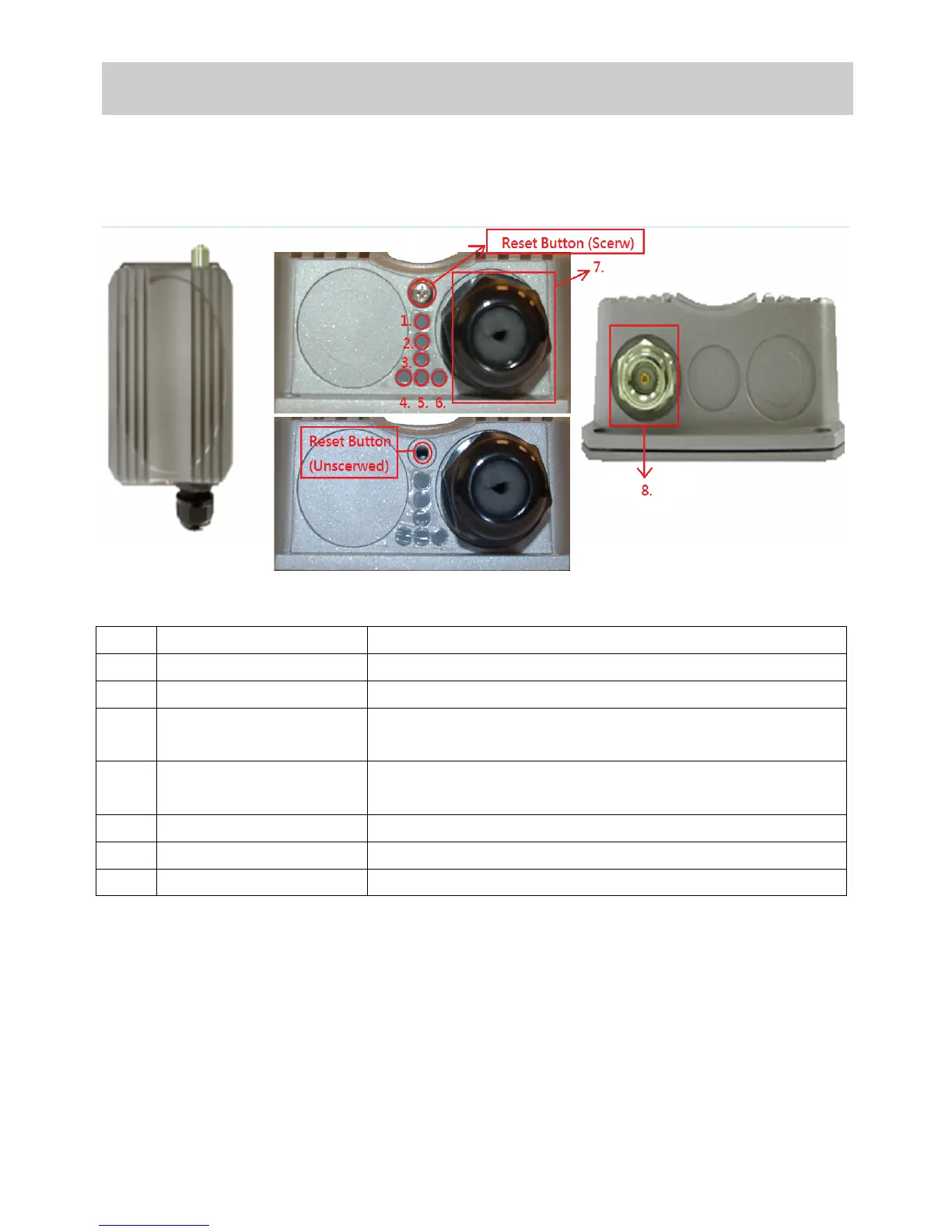

System Overview
WAB-3003
1 Power Red LED ON indicates Power on, and OFF indicates power off
2~3 Wireless Signal Strength For showing the signal strength situation (7: Yellow; 8: Green)
4 WLAN Green LED ON indicates system ready
5 Wireless Signal
Strength
For showing the signal strength situation
6 Ethernet
Green LED ON indicates connection, OFF indicates no
connection, and BLINKING indicates transmitting data.
7 RJ – 45 PoE Connector For connecting to the Power Sourcing Equipment (PSE)
8 N-type Connector For connecting to an antenna
9 Reset Button *(Screw) For resetting the system of AP
2
Reset Procedure
1. Make sure the WAB-3003 completes booting and is already running
(The booting process of system usually takes 2 minutes)
2. *Unscrew the Screw then you will see a reset button (inside the hole)
3. Use the provided reset pin to press and hold the reset button for 15 seconds
4. Release the reset button and leave the system re-booting for 2 minutes
