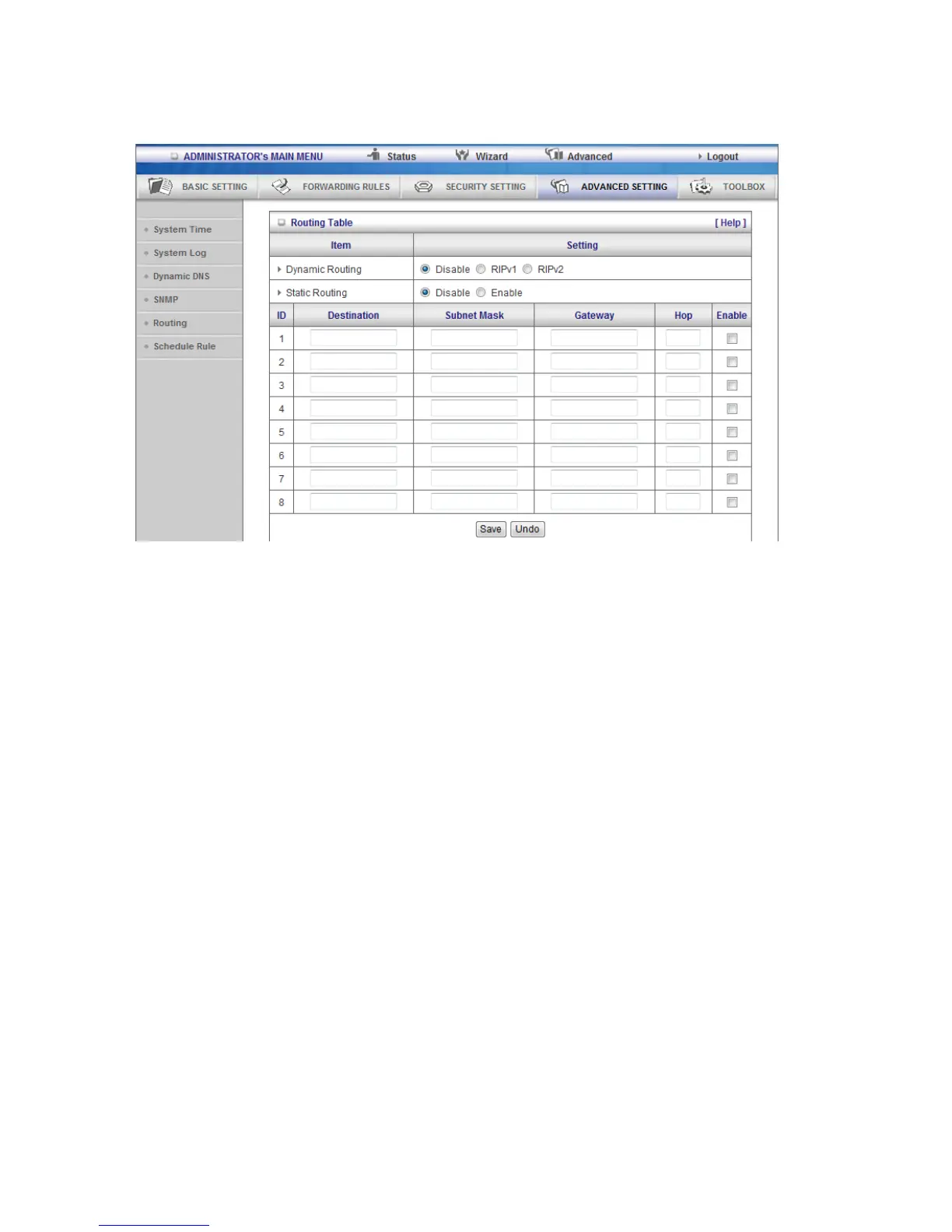

3.3.4.5 Routing
Routing Tables allow you to determine which physical interface address to use for outgoing IP data grams. If
you have more than one routers and subnets, you will need to enable routing table to allow packets to find
proper routing path and allow different subnets to communicate with each other.
Routing Table settings are settings used to setup the functions of static.
Dynamic Routing
Routing Information Protocol (RIP) will exchange information about destinations for computing routes
throughout the network. Please select RIPv2 only if you have different subnet in your network.
Otherwise, please select RIPv1 if you need this protocol.
Static Routing: For static routing, you can specify up to 8 routing rules. You can enter the destination IP
address, subnet mask, gateway, hop for each routing rule, and then enable or disable the rule by checking or
un-checking the Enable checkbox.
