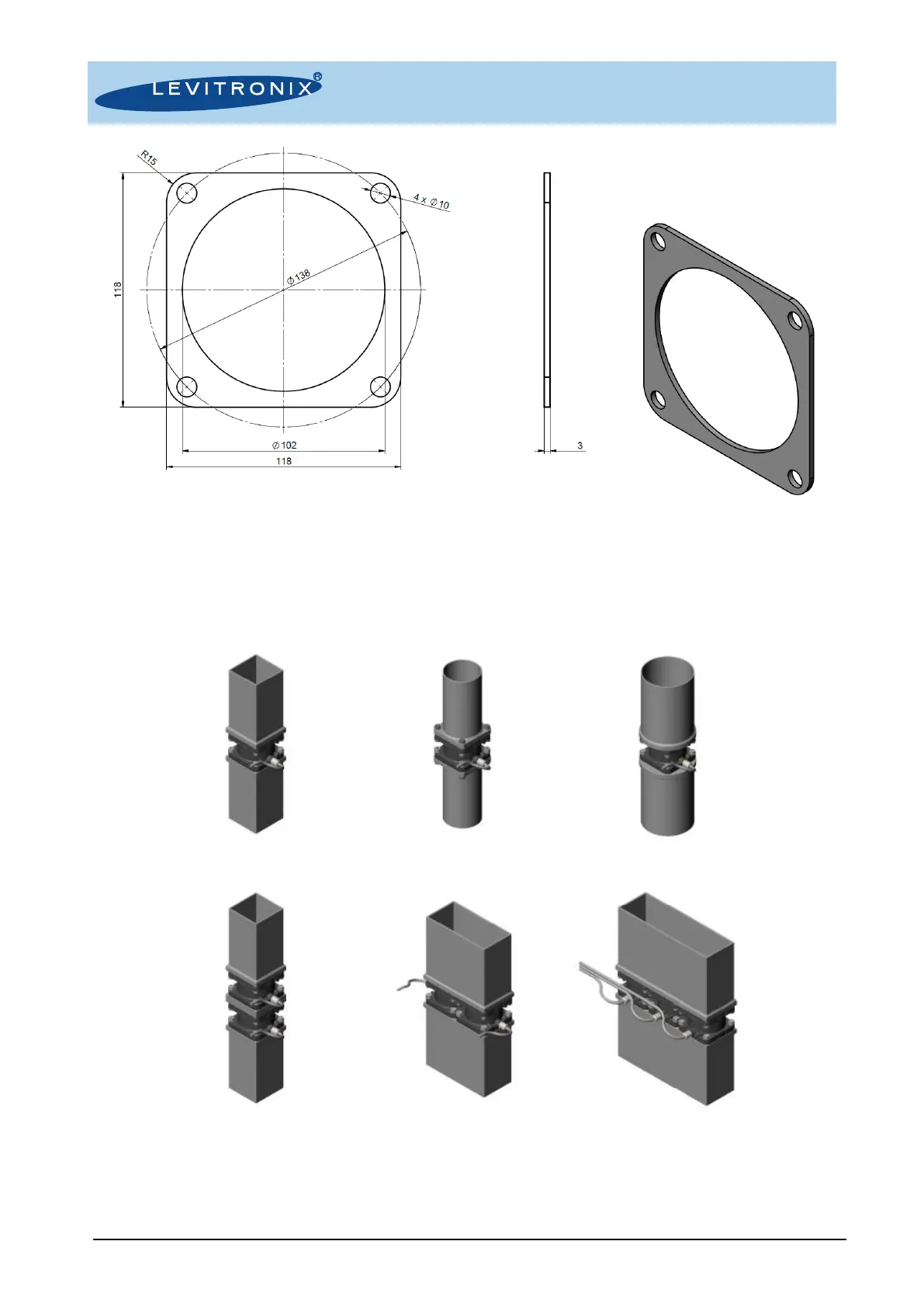

Figure 15: Flat Gasket Dimensions (mm) used by Levitronix

4.2.2 Mounting Proposals

BFS-i06 fans can be adapted into many different duct systems and may be operated in parallel or series to

achieve higher flow or pressure. This section shows a few of many possible mounting scenarios. For more in-

depth information contact Levitronix

technical support (section 6.3).

Figure 16: Possible mountings of BFS-i06 in different duct systems

Square duct

Round duct,

large diameter

2 fans in series,

up to 2 x pressure

Round duct,

small diameter

2 fans in parallel,

up to 2 x flow rate

3 fans in parallel

3 x flow rate
