Levoit Core 300 User Manual

6
GETTING STARTED

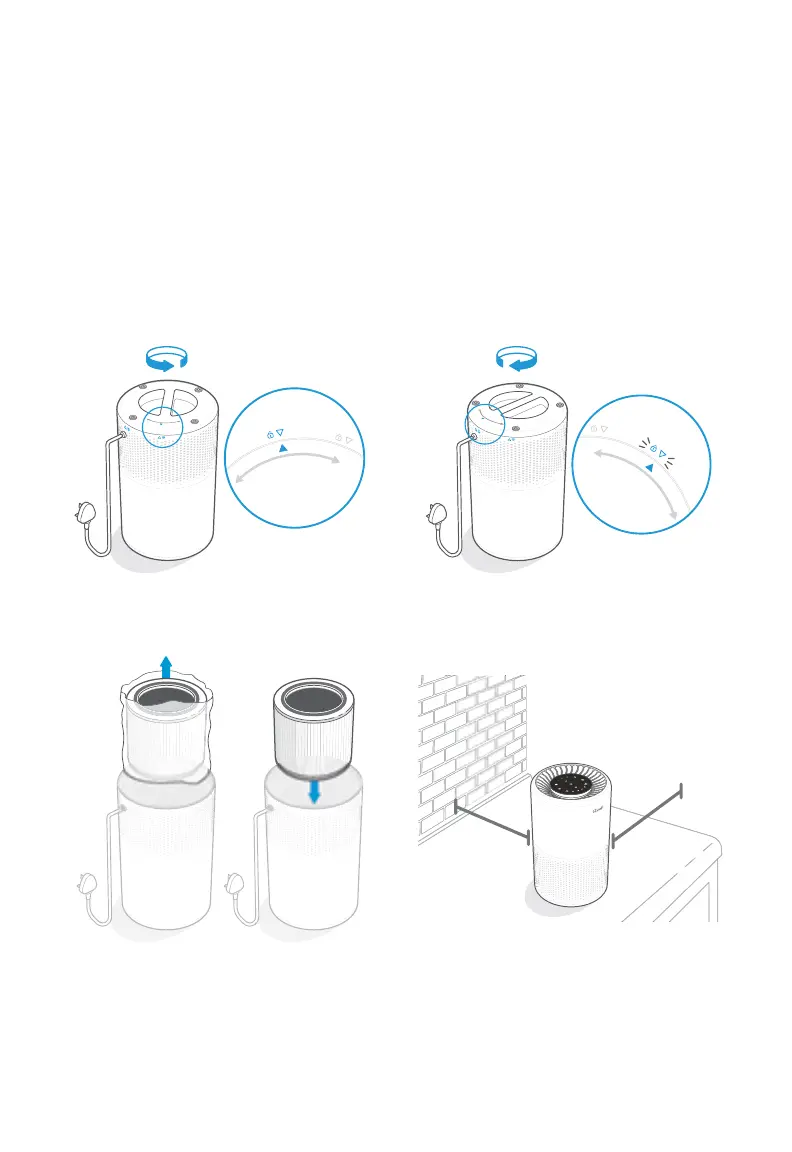

1. Flip the air purifier over. Twist the filter
cover anticlockwise and remove it.
[Figure 1.1]
2. Remove the filter from its plastic
packaging and place the filter back into
the air purifier. [Figure 1.2]
3. Replace the filter cover and twist
clockwise to lock. [Figure 1.3]
Figure 1.1
Figure 1.2
Figure 1.4
Figure 1.3
4. Place the air purifier on a flat, stable
surface with the display facing up. Allow
at least 38 cm / 15 inches of clearance
on all sides of the air purifier. Keep away
from anything that would block airflow,
such as curtains. [Figure 1.4]
cover should
snap shut
38 cm /
15 in
38 cm /
15 in

Levoit Core 300 Specifications

General

Anti-odor filter	Yes
Particle filtration	0.3 µm
Filtering capability	Cigarette smoke, Fine dust, Pollen
Number of filter stages	3
Efficiency	99.97 %
Noise level	50 dB
Certification	FCC, ETL, CA PROP 65
Air purify rate	- m³/h
Noise level (night mode)	24 dB
Timer duration (maximum)	8 h
Timer duration (minimum)	2 h
Operating temperature (T-T)	-10 - 40 °C
Suitable for room area up to	20 m²
Operating relative humidity (H-H)	0 - 85 %
Clean Air Delivery Rate (CADR) (dust)	140 m³/h
Clean Air Delivery Rate (CADR) (smoke)	141 m³/h
Clean Air Delivery Rate (CADR) (pollen)	145 m³/h
Sustainability certificates	ENERGY STAR
AC input voltage	120 V
AC input frequency	60 Hz
Power consumption (max)	45 W
Power consumption (standby)	0.8 W
Control type	Touch
Display type	LCD
Product color	Black, Silver

Weight and Dimensions

Width	220 mm
Height	360 mm
Weight	3400 g
