ELECTRICAL CONNECTIONS • ELEKTRISCHE VERBINDUNGEN • BRANCHEMENTS ELECTRIQUE •
CONEXIONES ELECTRICAS • ELEKTRISKA ANSLUTNINGAR
Page 21

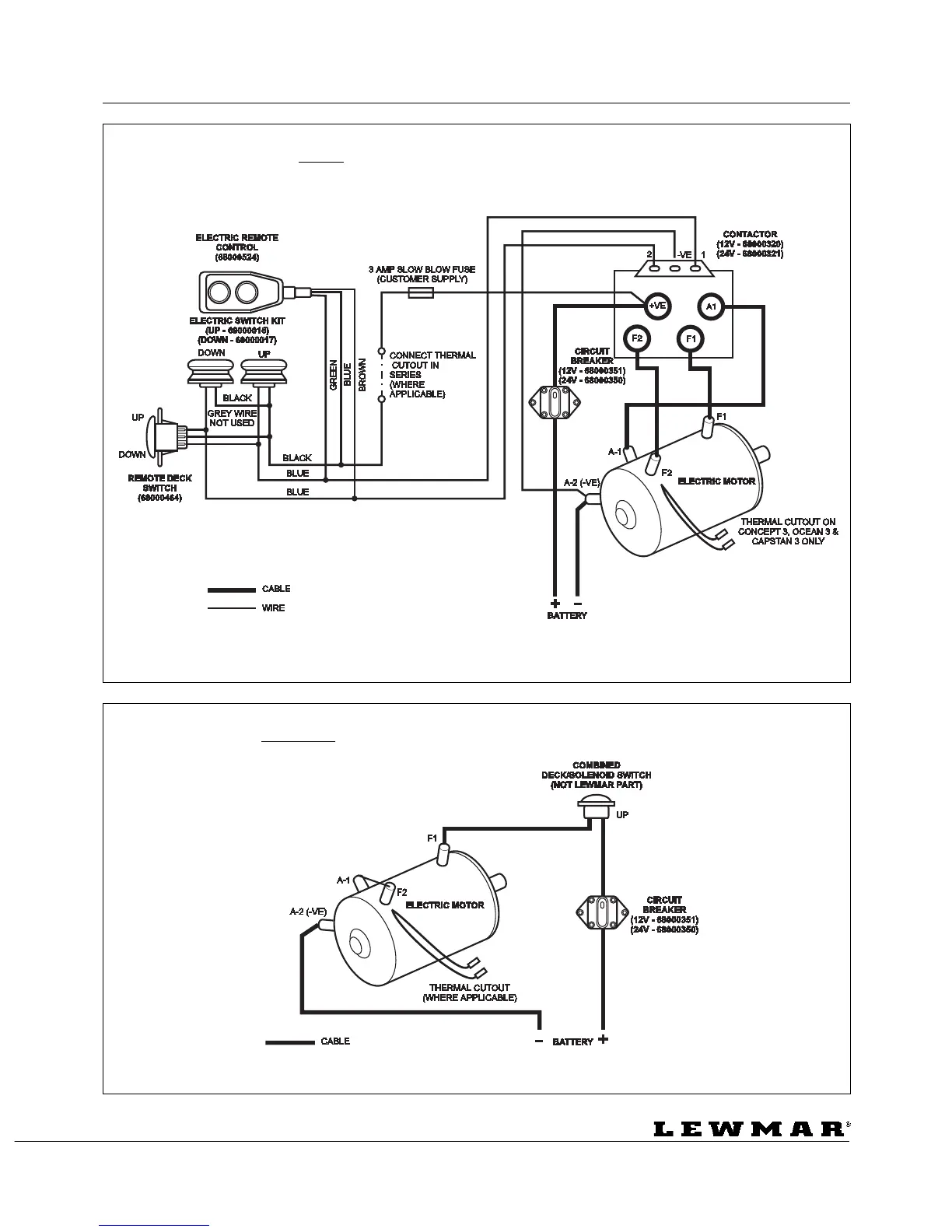

Concept/Ocean 3 12v/24v
Series Wound Dual Direction Windlass Contactor Wiring Diagram - WSD 0876
Concept/Ocean/Capstan 3 12v/24v
Series Wound Single Direction Solenoid Switch Wiring Diagram - WSD 0876
