ELECTRICAL CONNECTIONS • ELEKTRISCHE VERBINDUNGEN • BRANCHEMENTS ELECTRIQUE •
CONEXIONES ELECTRICAS • ELEKTRISKA ANSLUTNINGAR
Page 20

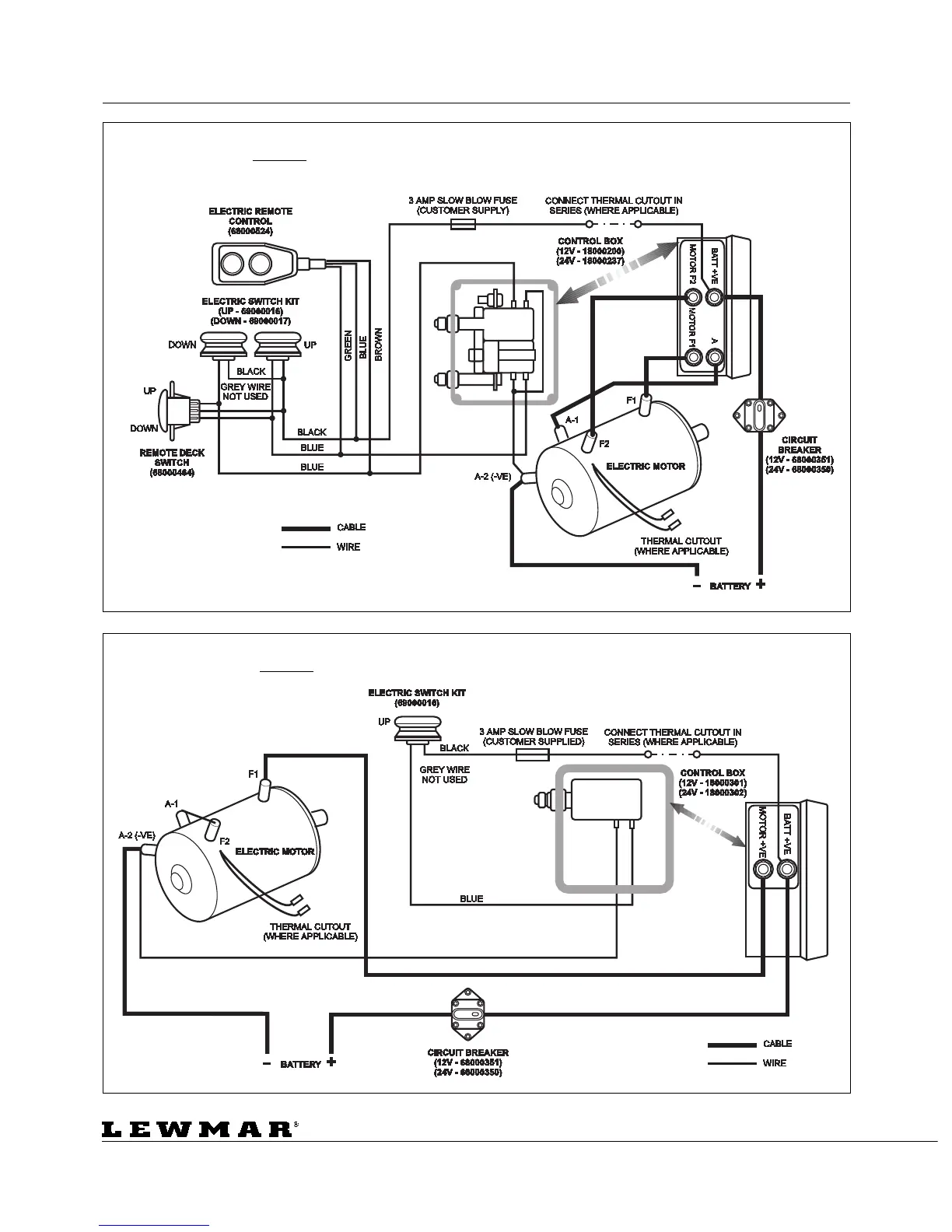

Concept/Ocean/Capstan 3 12v/24v
Series Wound Single Direction Control Box Wiring Diagram - WSD 0876
Concept/Ocean 3 12v/24v
Series Wound Dual Direction Control Box Wiring Diagram - WSD 0876
