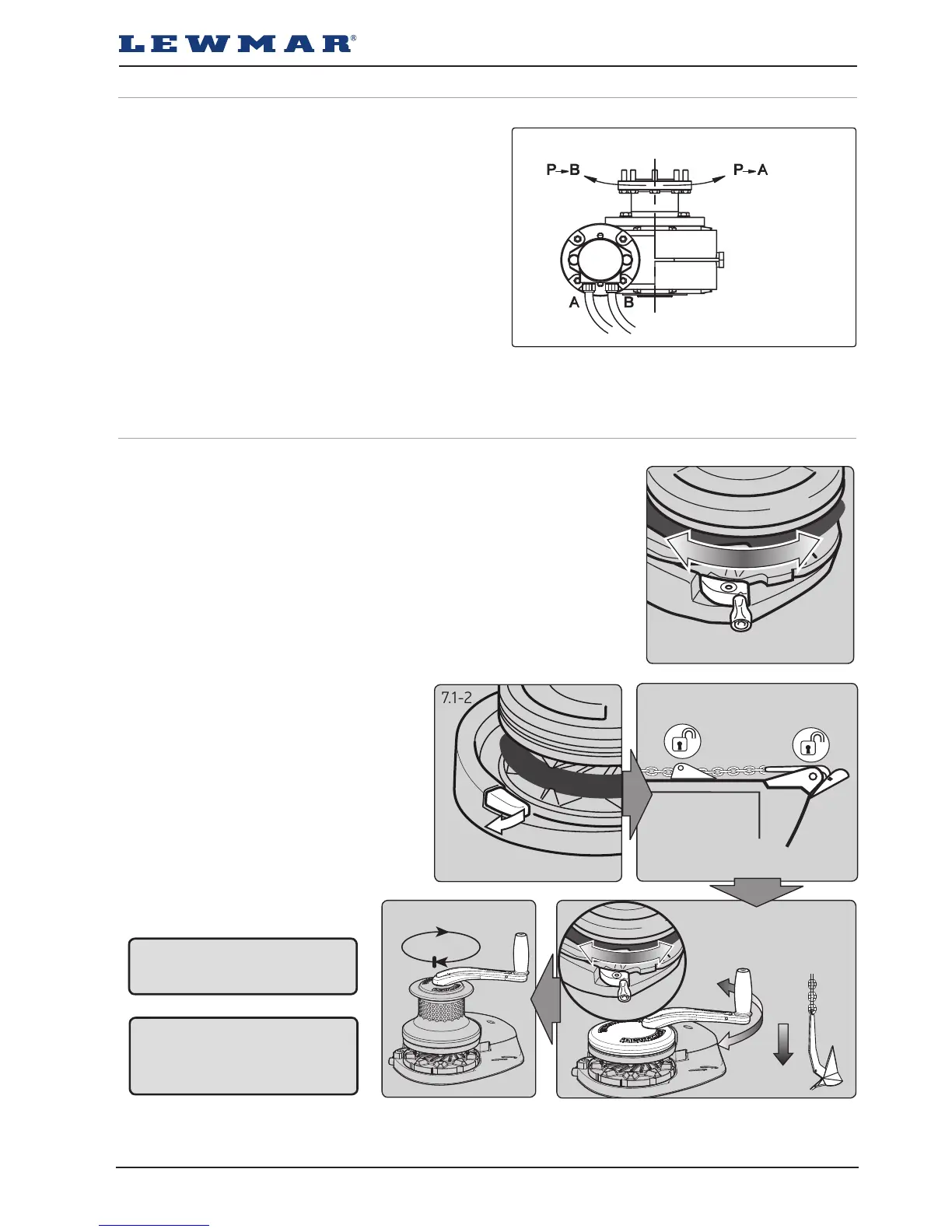

Standard Motor/gearbox Fig 6.4
7.1-3
7.1-4
7.1-5
7.1-1
7.1-2
7. Operation
Use this method for quicker anchor deployment and to save battery
power.
Models V1-3
Check fall-safe pawl is in vertical disengaged position and held clear by
fall safe lever.
Models V4-5
Check pawl is in disengaged position.
Models V6 & V-Sport
This model has no fall-safe pawl.
7.1 V1-6 Braked anchor free-fall
Gypsy only
1. Release any anchor locks and when safe ro-
tate handle anti-clockwise until anchor pays
out.
2. Adjust rate of fall with handle.
Once paid out fully tighten gypsy drive cap.
Gypsy/drum
3. Place a Lewmar handle into the drum top
nut and operate as gypsy version above.
WARNING! Always remove
winch handle after use.
WARNING! Isolate the wind-
lass using circuit breaker/
isolator.
The location of the ports for the standard motor/
gearbox is shown in Fig 6.4 (no drain connection).
The Lewmar hydraulic motor ports are:
A & B ports ½” BSP.
NOTE: Refer to your installed hydraulic system manual for
hydraulic drives.
6.4 Motor ports - standard motor/gearbox
