Damaged power cords can cause fire or electric shock. Please
observe the following when handling power cords:
• Handle power cords at the plug.
• Never disconnect power cords by pulling on the cord.
• Never touch power cords with wet hands, as this could
cause short circuit or electric shock.
• Protect power cords from being pinched or walked on,
particularly at plugs, convenience receptacles, and points
of connection with the unit.
• Never tie knots in power cords or tie power cords together.
• Examine power cords for damage on a regular basis.
CAUTION
Never make or break connections to the RT-10 unless the
RT-10 and all associated components are powered off.
CAUTION
Basic Operation
RT-10
2-9
3. Component Video Output Connectors
Provide component video output. All versions include one
group of RCA and one group of BNC connectors labeled
COMPONENT VIDEO. Some versions also include a Mini D
Ribbon connector labeled D1/D2. All component video output
connectors can be used at the same time.
. . . Rear Panel Overview continues on page 2-10
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216,
4,819,098, and 4,907,093 licensed for limited viewing uses only.
COMPONENT VIDEO
PB
PR
Y
PR
PB Y
S-VIDEOVIDEO
VIDEO OUTPUTS
Manufactured under license from Dolby Laboratories. "Dolby," "MLP Lossless," and the
double-D symbol are trademarks of Dolby Laboratories.
IR IN
ON
OFF
TRIGGER
D1/D2
S/PDIF
AUDIO OUTPUTS
AES/EBU
FRONT
L
R
SURROUND
CENTER
SUB
L
R
LEXICON, INC.
MADE IN JAPAN
SERIAL NO.
RT–10
Manufactured under license from Digital Theater Systems, Inc. U.S. Pat. No. 5,451,942, 5,956,674,
5,974,380, 5,978,762, and other world-wide patents issued and pending. "DTS" and "DTS Digital
Surround" are registered trademarks of Digital Theater Systems, Inc. © 1996, 2000 Digital Theater
Systems, Inc. All rights reserved.
1
AC IN
~
TRIGGER
INPUT
–
+
TV A/V EUROCONNECTOR

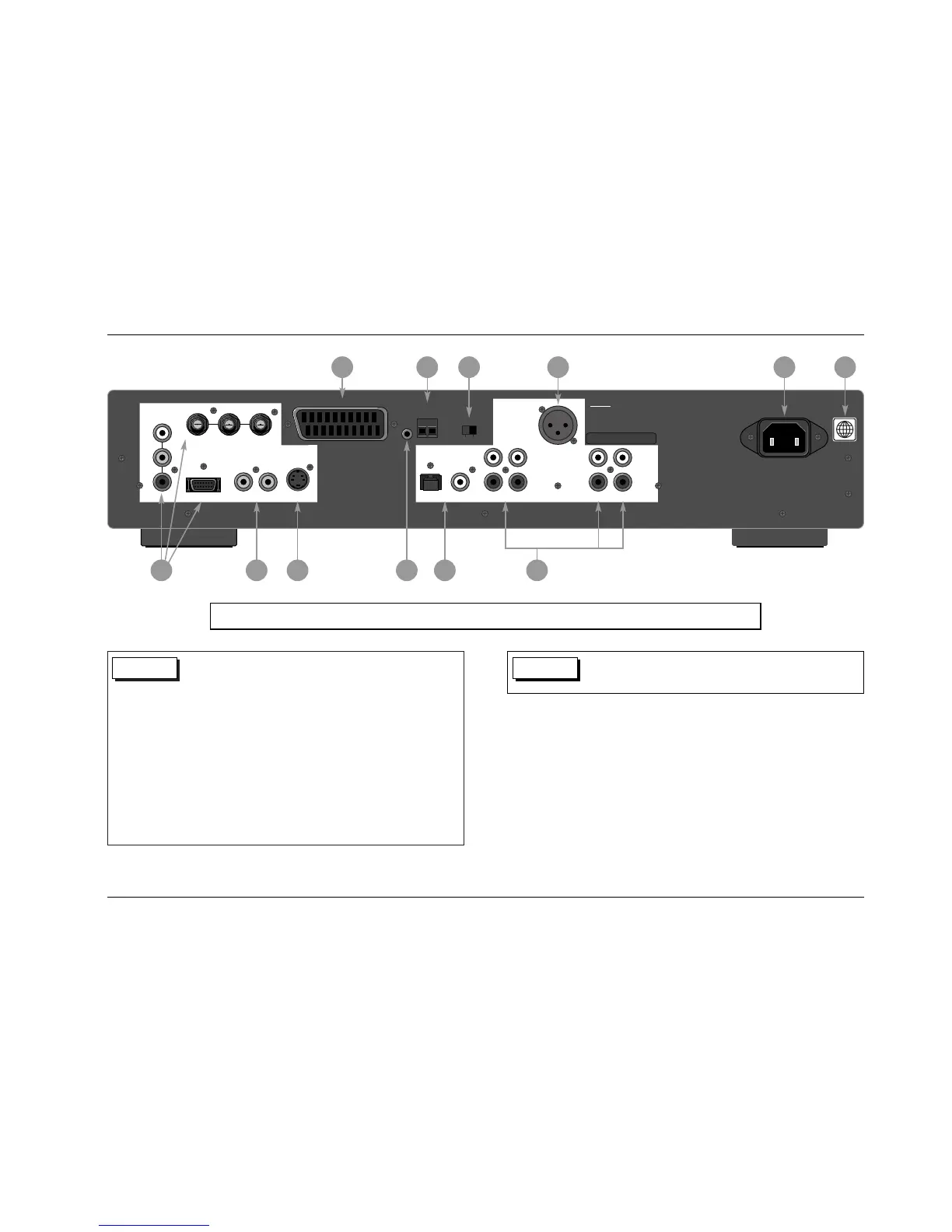

The numbers in the RT-10 rear panel illustration shown above correspond to the numbered items that begin on the previous page.
126 10 9
11
7
3 4 5 7 8
