POSITIONING THE MICROPHONES FOR AUTOMATIC CALIBRATION (continued)
When calibrating for multiple listening
positions in a single row, position the
microphones:
3 At the approximate spot where the listener’s head
will be during listening
3 In a clear line-of-sight path with the speakers
3 In a location unobstructed by furniture and other
fixtures, where echoes will not obscure calibration
noise signals
3 At least 2 feet (0.61m) from all speakers and
walls, but within 30 feet (9.14m) of all speakers
The illustration to the right provides an example of
proper microphone placement when calibrating for
multiple listening positions in a single row. Each micro-
phone is positioned in a single listening position within a
single row, allowing the RV-5 to calibrate optimal
speaker distances and output levels for that row at the
expense of a single listening position.

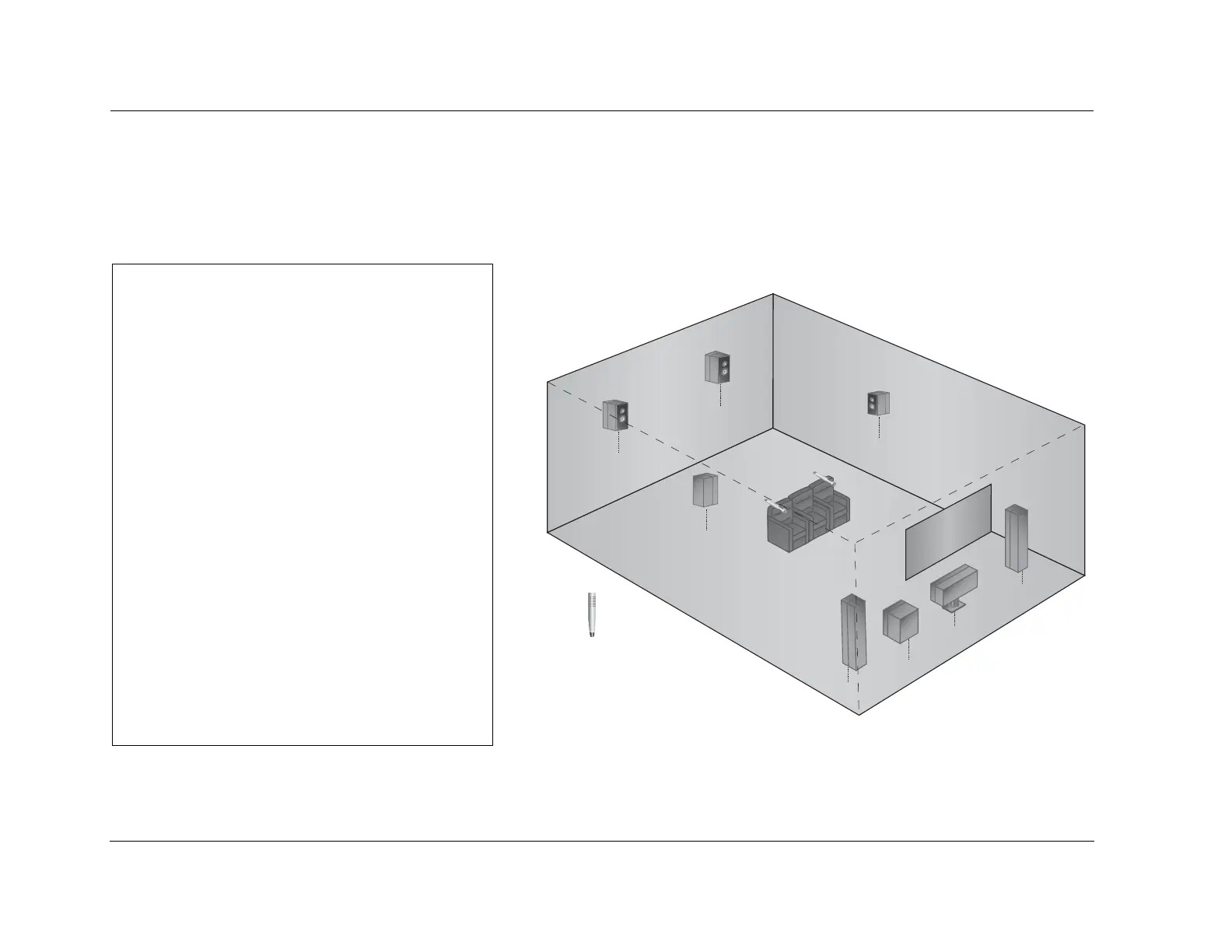

PROPER microphone placement to achieve the best results for multiple listening positions in a single row
Front
Left
Center
Subwoofer
Front
Right
Microphone
Side
Right
Rear
Right
Rear
Left
Side
Left
