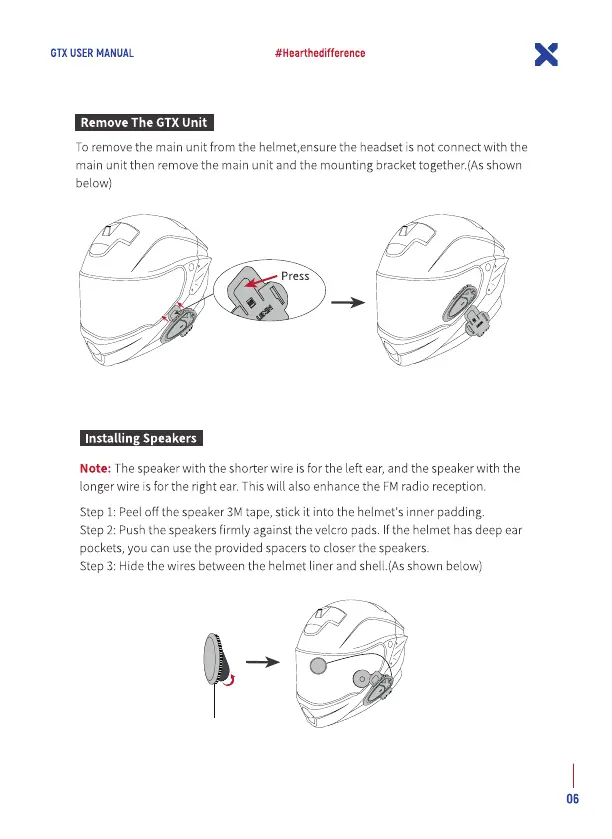

GTX USER MANUAL
Remove The GTX unit
#Hearthedifference
x
To remove the main unit from the helmet,ensure the headset is not connect with the
main unit then remove the main unit and the mounting bracket together(As shown
below)
Installing Speakers
Press
Note: The speaker with the shorter wire is for the left ear, and the speaker with the
longer wire isfor the right ear.This will also enhance the FMradio reception.
Step 1: Peel off the speaker 3Mtape, stick it into the helmet's inner padding.
Step 2: Pushthe speakersfirmly against the velcro pads. If the helmet has deep ear
pockets,you can use the provided spacersto closer the speakers.
Step 3: Hide the wires between the helmet liner and shell.(As shown below)
06
