Note: If the shell of your helmet is a little thick, you could put the Spacer in the
middle of the clamp. Or you may use the sticker style mounting bracket to hold the
main unit on some special large size helmet or the half helmet.
3.2 Locate an area in the nose section just to the left of center to mount the
microphone. If you are installing into an open face helmet, please adjust the direction
of the microphone so that the triangular mark on the microphone is pointing towards
your mouth.

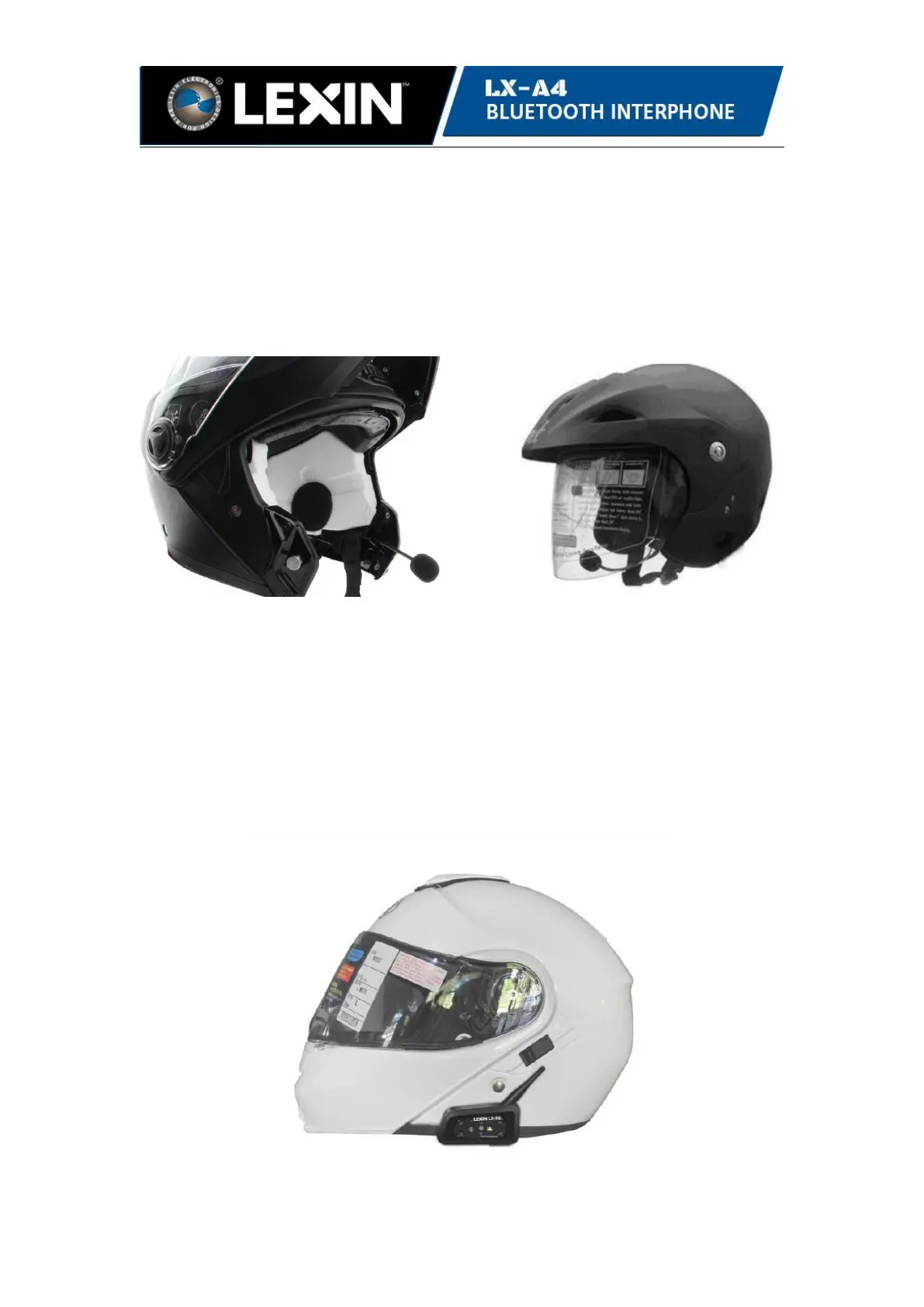

Boom Microphone for Open Face Helmet and Full Helmet
3.3 Place the speakers into the cheek pads. Push the speakers and microphone firmly
against the Velcro pads.
3.4 Push the wires into the gap between the helmet liner and shell.
3.5 Mount the LX-A4 SAFE CHATTER main unit on the bracket, and slide it into the
L-shape hole.
3.6 Mount the LX-A4 main unit on the bracket.
