32 58D6056
T
PILOT
O
F
F
P
I
L
O
T
O
N
OPERATING INSTRUCTIONS
LIGHTING PILOT FOR THE FIRST TIME
INITIAL LIGHTING
Purge air from the supply line as follows:
• Open main shutoff valve.
• Unscrew main pressure test point.
• Leave inlet test screw open until gas comes in.
• When gas is flowing, tighten inlet screw immediately.
LEAK TESTING
You may check for gas leaks with the following methods only:
• Soap and water solution
• An approved leak testing spray
• Electronic sniffer
Check for gas leaks in each of the following locations:
• Pipe from the gas supply line connection to the gas valve
• Burner thread inlet • Field made joints
• Pilot • Factory made joints
• Each joint or connection • All joints on valve and control body
If using a soap and water
solution to test for leaks,
DO NOT spray solution onto
control body.
WARNING
NOTE: Remove any excessive pipe
compound from the connections.
Excessive pipe compound can set off
electronic sniffers.
The control has an interlock device that does not allow the lighting of the stove up
to the moment the safety device of the fl ame has not interrupted the gas fl ow. After
that period of time (when the magnet is closed), it is possible to start the lighting
operation.
The gas control knob is designed to be operated by hand. DO NOT use any tools
during this operation. Damaged knobs may result in serious injury.
WARNING
1. Depress and turn knob counterclockwise
to pilot position.
2. Depress fully and hold pilot gas knob. The elec-
tronic ignitor will automatically ignite the pilot.
Keep knob fully depressed for a few seconds.
Release and check that pilot continues to burn.
If the pilot does not stay lit, repeat steps 1 and 2.
LIGHTING PILOT

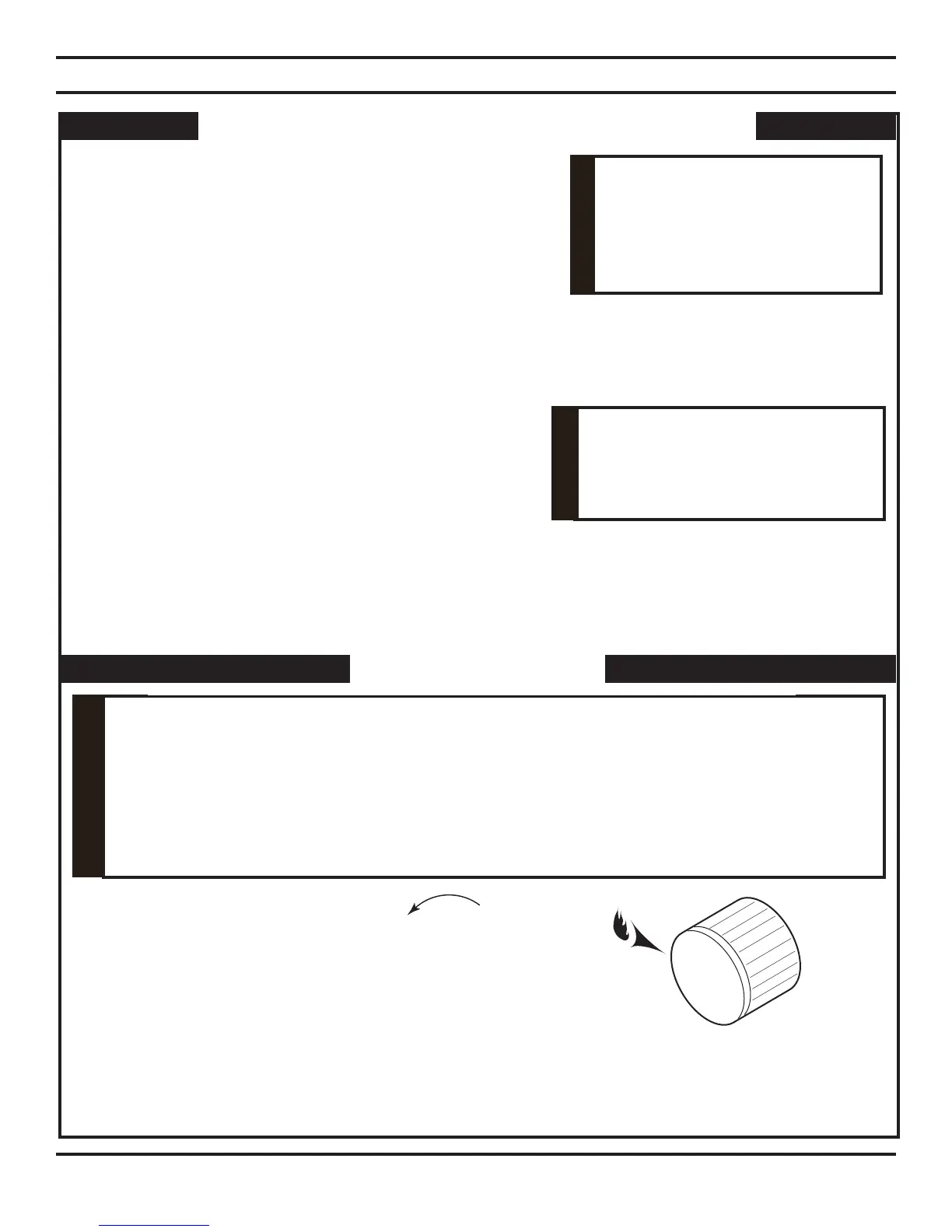

Figure 41 - Pilot Position
Never use an open fl ame to
check for gas leak.
WARNING
