Lexmark MX421 - Control Panel Assembly (MX321) Removal

Control panel assembly (MX321) removal
1 Open the ADF.
2 Remove the numeric keypad cover. See “Numeric keypad cover (MX321) removal” on page 241.

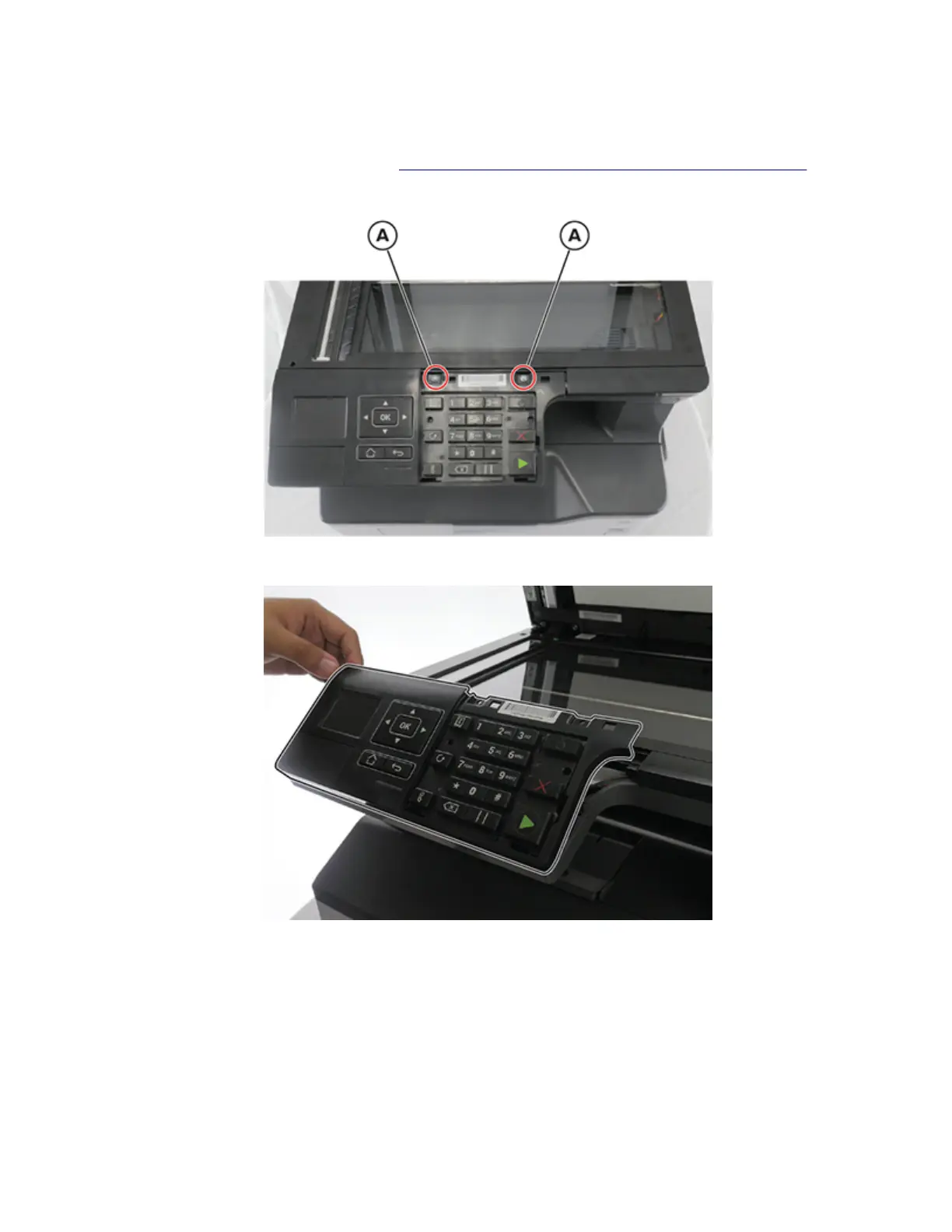

3 Remove the two screws (A).
4 Carefully disengage the assembly from the rear cover.
7017-2xx, -4xx, -6xx
Parts removal
245
