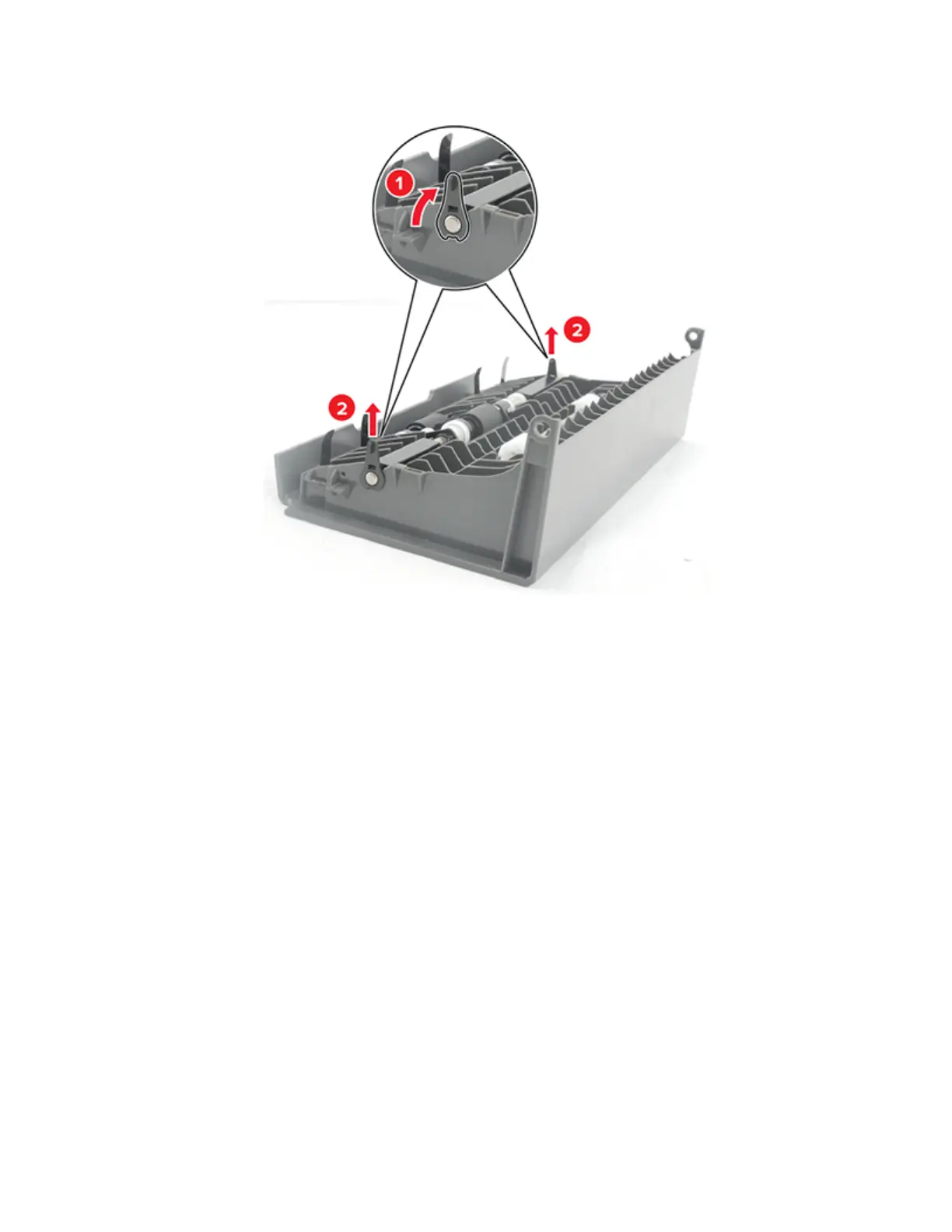

3 Rotate the latches as shown, and then pull up to remove the roller.
Installation note: The roller is properly installed if the following parts are positioned as shown.
7017-2xx, -4xx, -6xx
Parts removal
290
