3 Close door B.

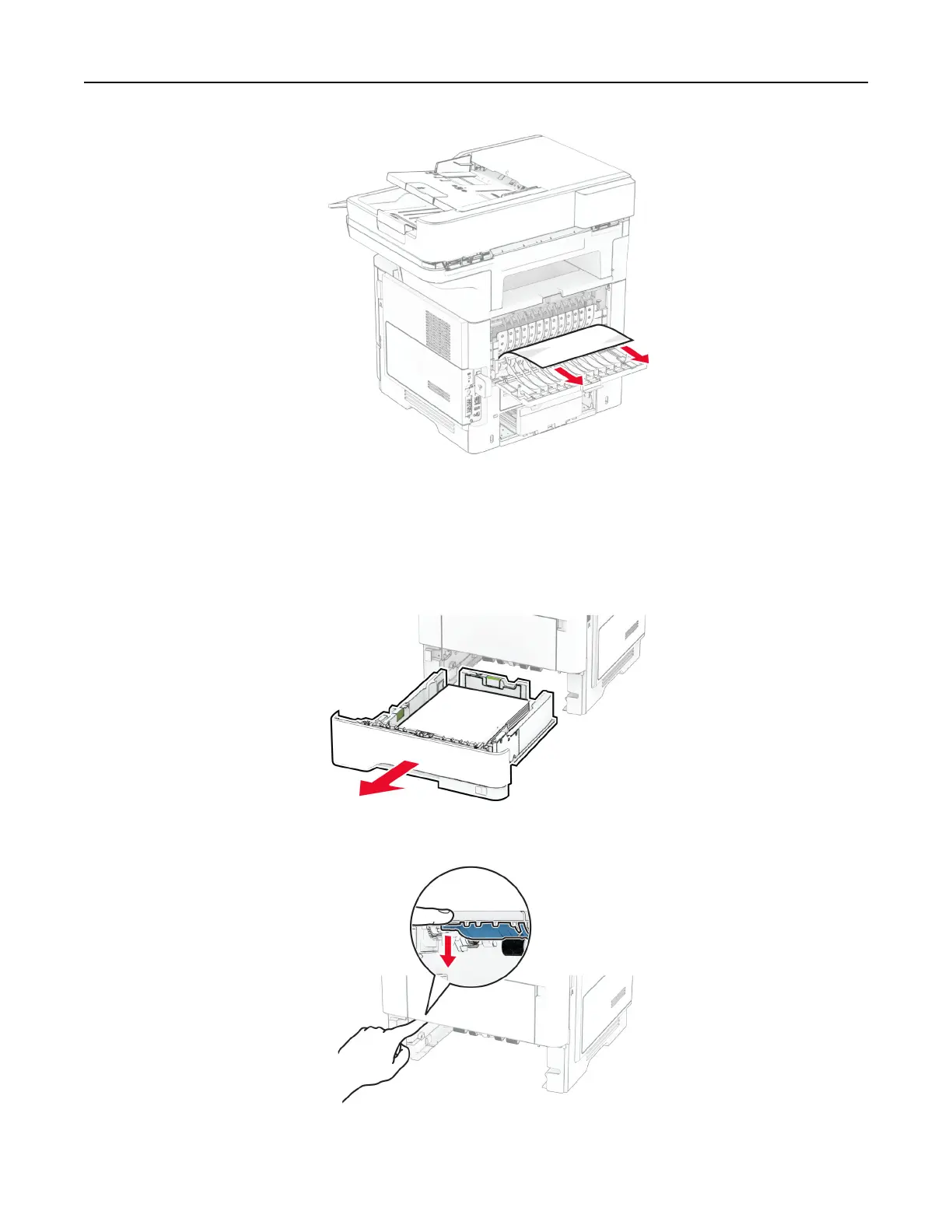

Paper jam in the duplex unit

1 Remove the tray.

2 Push the duplex unit latch to open the duplex unit.

Troubleshoot a problem 258
