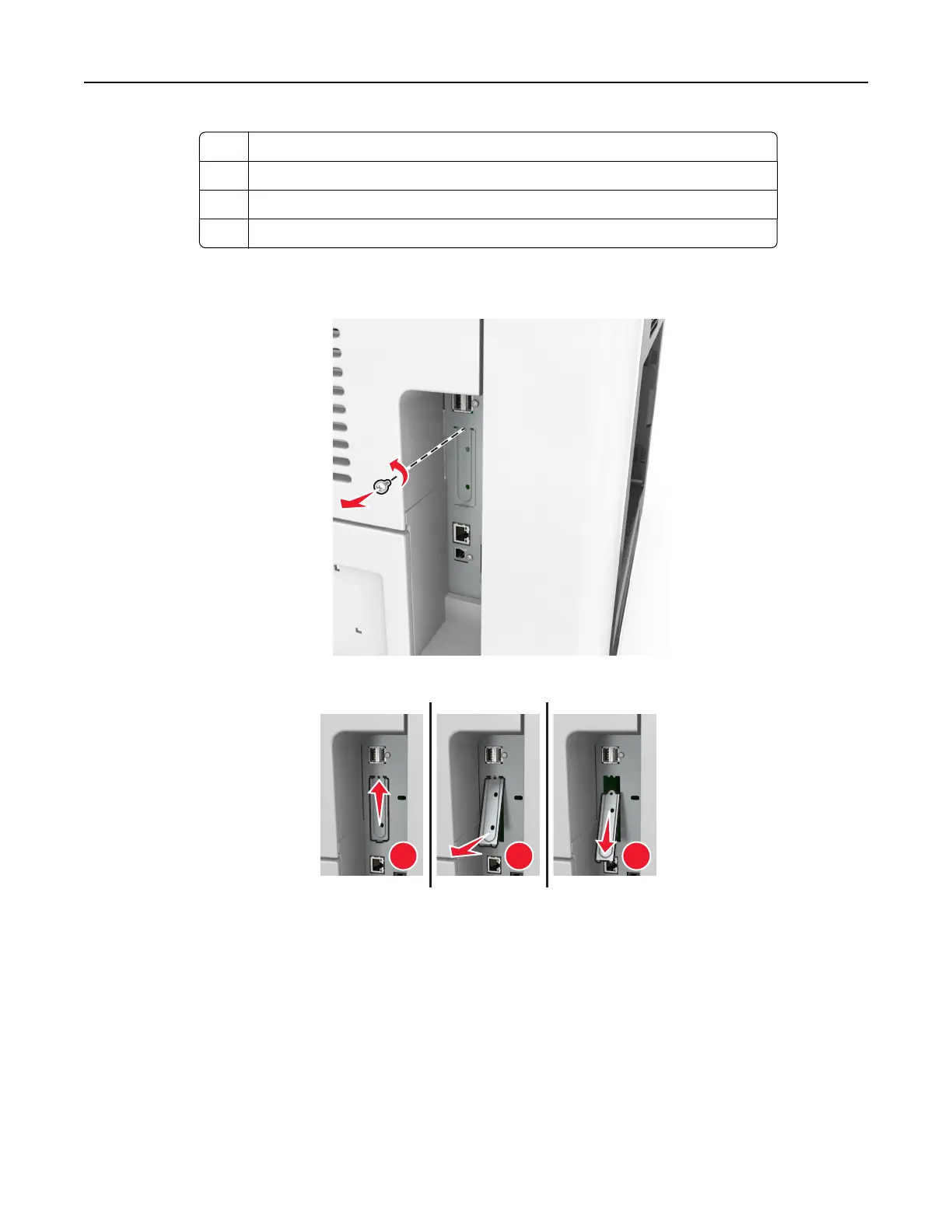

1 ISP solution

2 Screw for attaching the plastic bracket to the ISP

3 Screws for attaching the ISP mounting bracket to the controller board shield

4 Plastic bracket

4 Remove the metal cover from the ISP opening.

a Loosen the screw.

b Lift the metal cover, and then pull it out completely.

1 2 3

Additional printer setup 35
