1-40 Service Manual
4025-XXX
Mechanical Drive for Registration

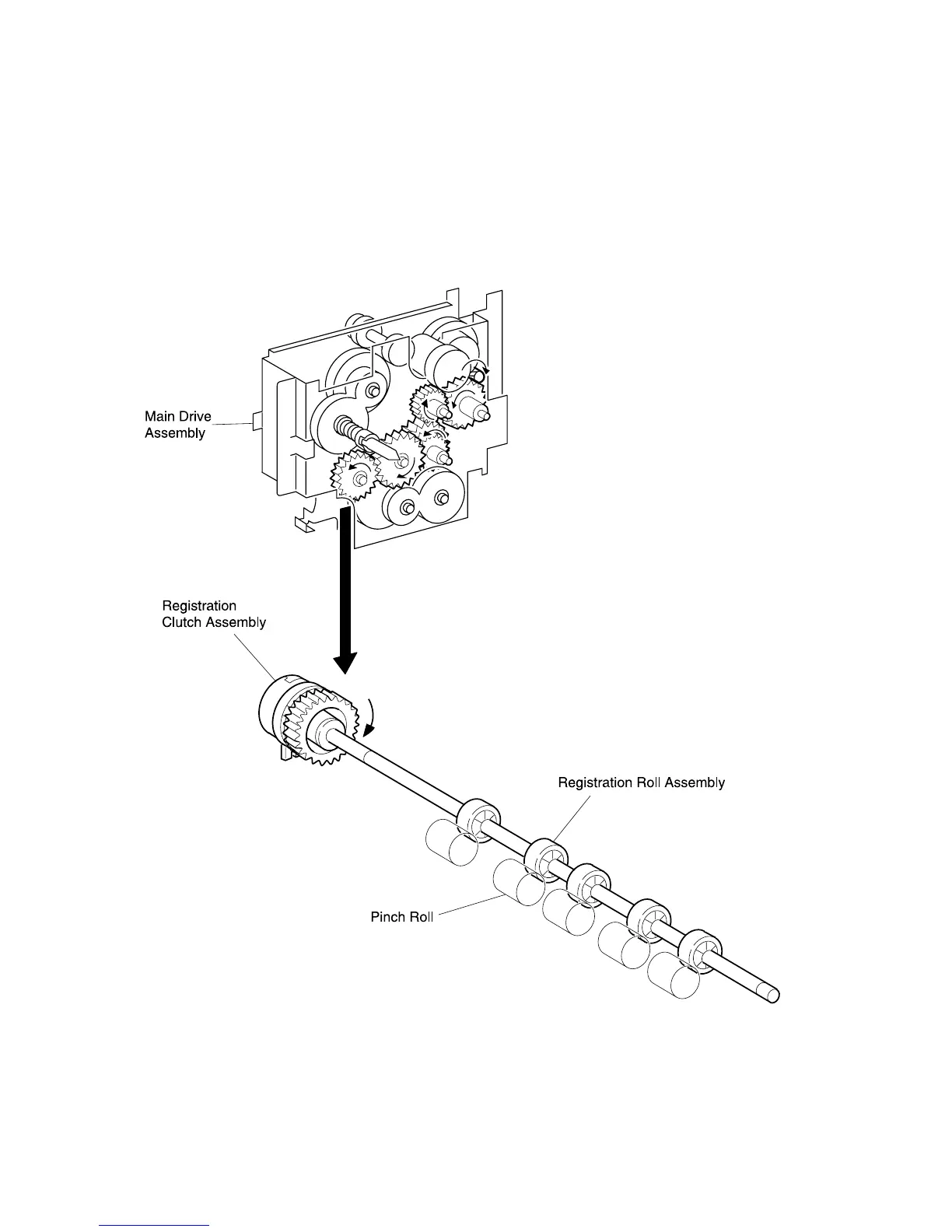

The Main Motor provides mechanical drive for the Registration Roll. The Main Drive
Assembly transmits drive to the Registration Clutch. At a specific time in the print cycle
the MCU switches on the Registration Clutch to align the paper with the image on the PC
drum. The Registration Clutch transmits drive to the Registration Roll, which rotates and
drives the sheet of paper into the Drum/BTR area.
