23
IPDS Printer and Host Setup Guide PSF/2 LAN Printing Using an Internal LAN Print Server

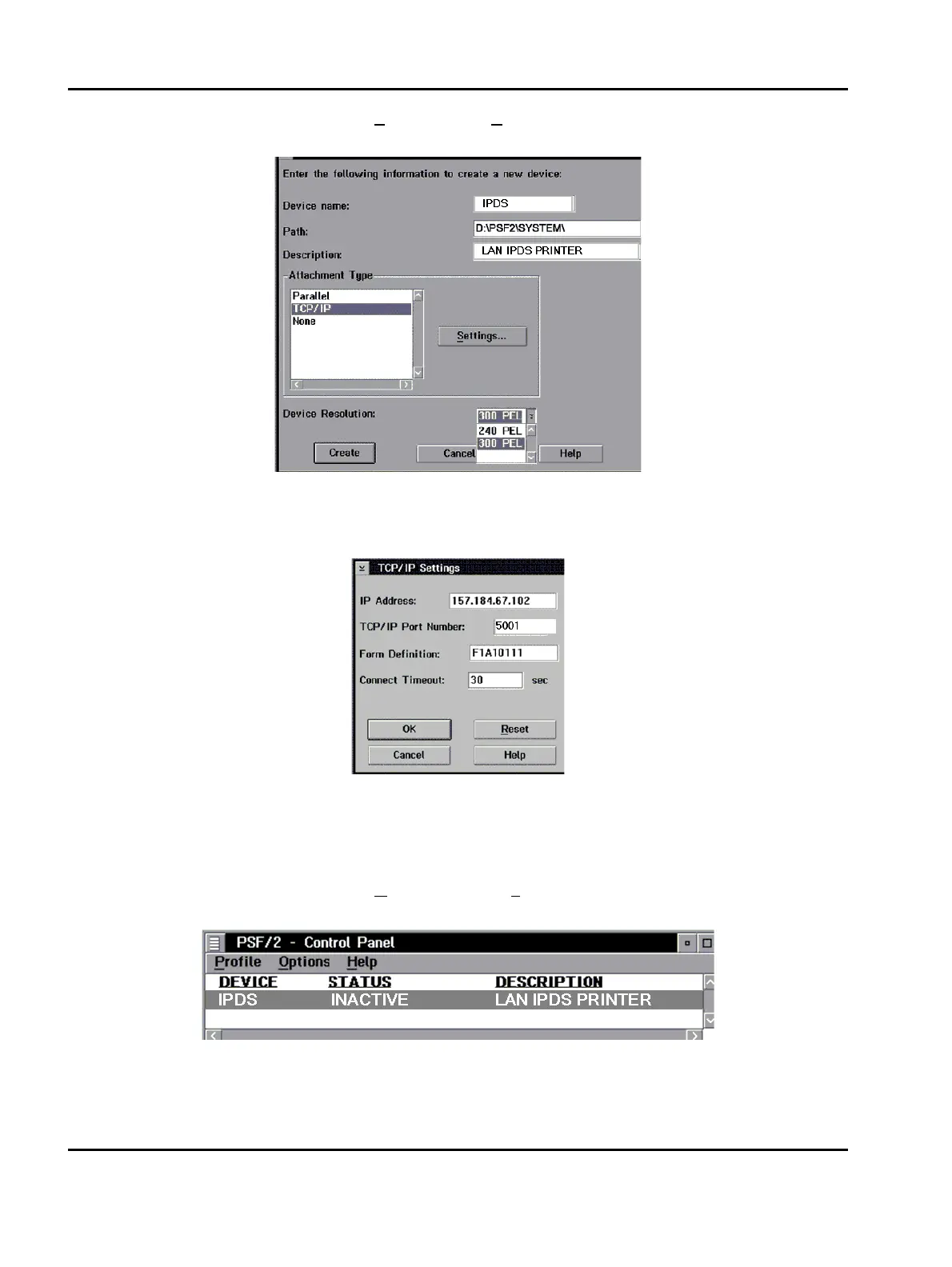

b) On the PSF/2 Control Panel select Profile and then New. The PSF/2 New Device menu appears.
Enter the device name and the device description and select a Device Resolution of 300 pel.
c) Select TCP/IP as Attachment Type and select Settings. The TCP/IP Settings menu appears.
Enter the IP address of the printer. The IP address should be obtained from your network administrator.
Enter the TCP/IP port selected in Step
1
.
d) Select OK and then Create. The PSF/2 printer device is now created and is ready to print from a
PSF/2 connected host.
e) On the PSF/2 Control Panel select O
ptions and Setup queues.
The Setup queues menu will appear. It will be blank at first. Enter the Queue name, description and select
the Device and then select Setup.
