4-3. Do-it-yourself maintenance
4
Maintenance and care
Fuse layout and amperage ratings

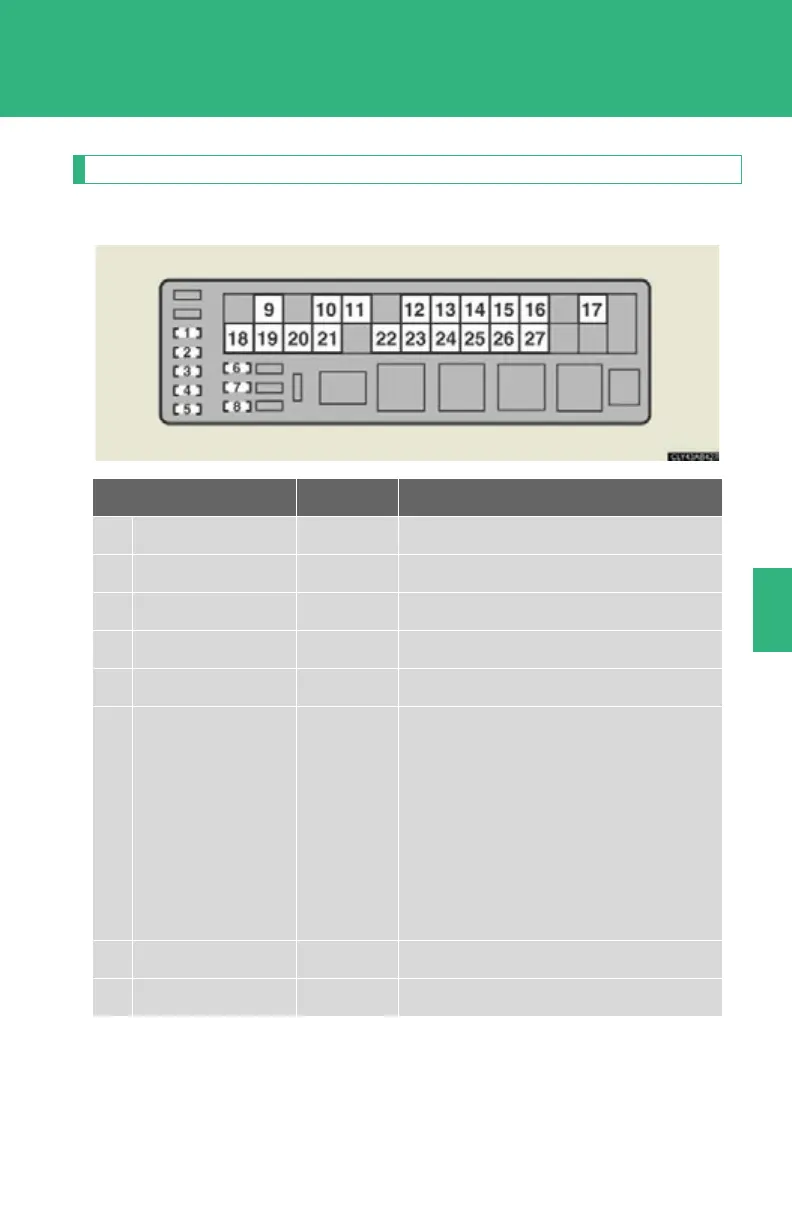

■ Engine compartment (type A fuse box)
Fuse Ampere Circuit
1
TURN-HAZ 15 A Emergency flashers, turn signals
2
IG2 MAIN 20 A IG2, IGN, GAUGE
3
RAD NO.2 30 A Audio
4
D/C CUT 20 A DOME, MPX-B
5
RAD NO.1 30 A Audio
6
MPX-B 10 A
Headlights, front fog lights, parking
lights, license plate lights, windshield
washer, power windows, power seats,
electric tilt and telescopic steering
column, meter, smart access system
with push-button start, outside rear
view mirrors, air conditioning system,
retractable hardtop, clock
7
DOME 10 A Interior lights, meter, outer foot lights
8
CDS 10 A Power source
To Next Page
