4-3. Do-it-yourself maintenance

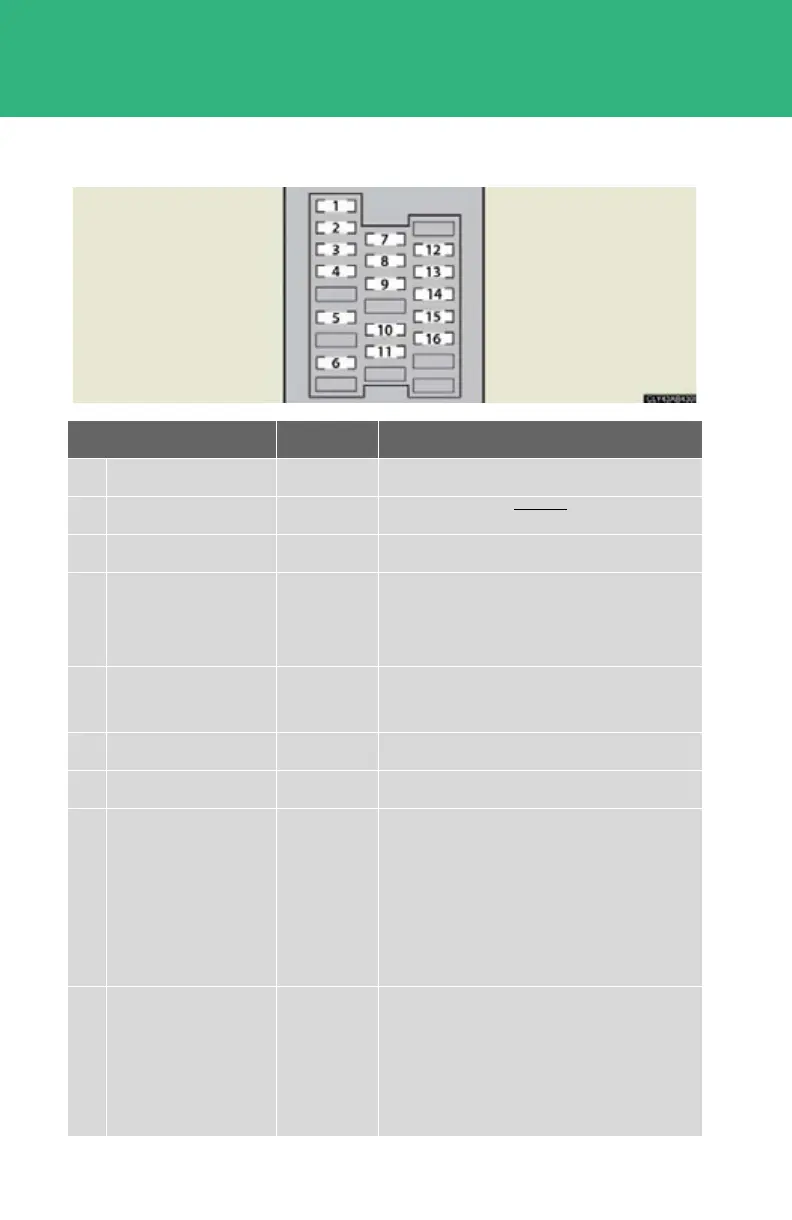

■ Passenger’s side instrument panel
Fuse Ampere Circuit
1
FR P/SEAT RH 30 A Power seat
2
DOOR DL 15 A
3
OBD 7.5 A On-board diagnosis system
4
STOP SW 7.5 A
Stop lights, multiport fuel injection sys-
tem/sequential multiport fuel injection
system, VDIM, shift lock system
5
TI & TE 20 A
Electric tilt and telescopic steering
column
6
RAD NO.3 10 A Audio
7
GAUGE 7.5 A Meter
8
IGN 10 A
SRS airbag system, steering lock sys-
tem, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, stop lights, smart access system
with push-button start, occupant
detection system
9
ACC 7.5 A
Audio, clock, air conditioning system,
navigation system, outside rear view
mirrors, smart access system with
push-button start, glove box light,
console box light
To Next Page
