1-1. For safe use
ES300h_OM_OM33B71U_(U)
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer seats
Can prevent the occupants from being thrown from the vehicle in the
event of vehicle rollover

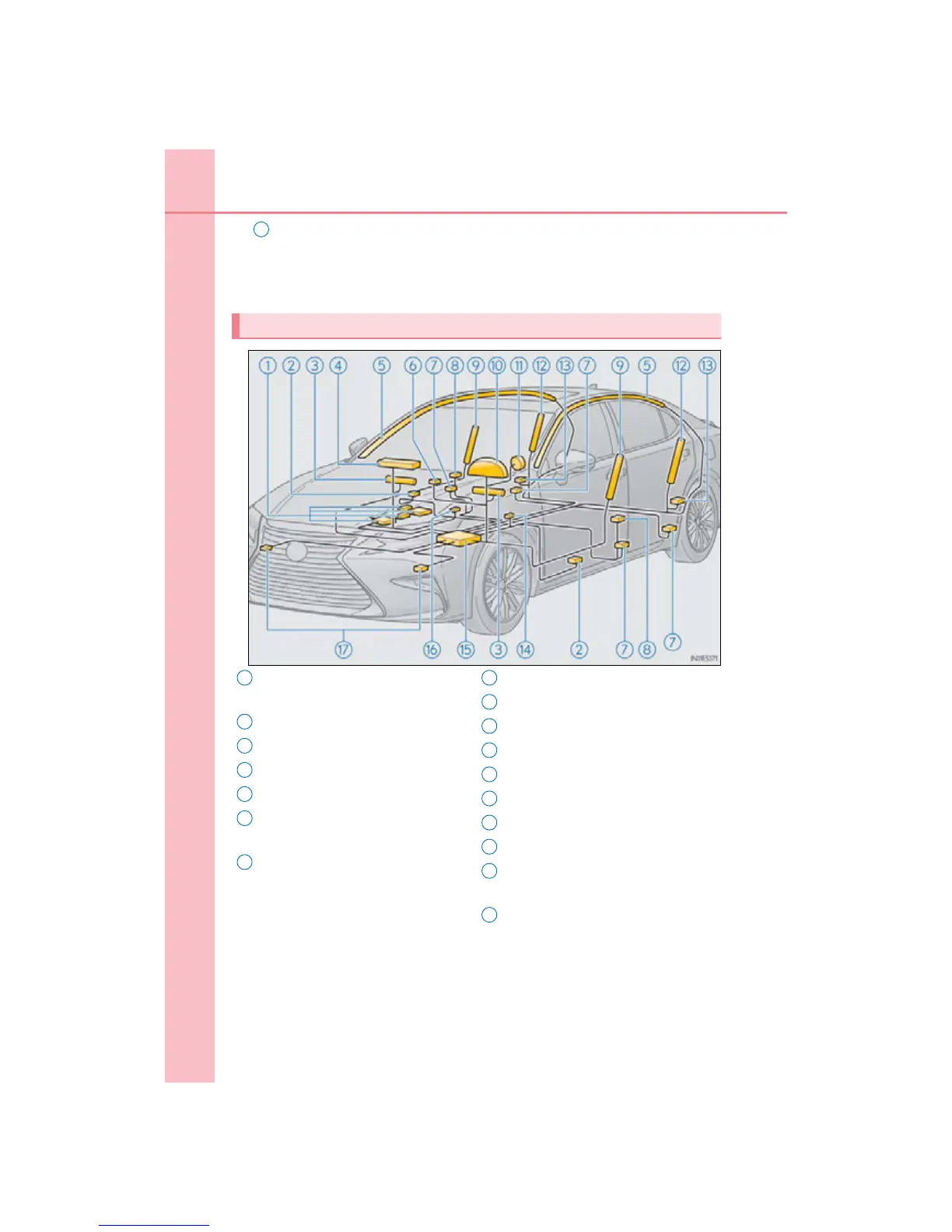

SRS airbag system components
4
Front passenger occupant classifi-
cation system (ECU and sensors)
Side impact sensors (front doors)
Knee airbags
Front passenger airbag
Curtain shield airbags
AIR BAG ON” and “AIR BAG
OFF” indicator lights
Seat belt pretensioners and force
limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Rear side airbags
Side impact sensors (rear)
Driver’s seat belt buckle switch
Airbag sensor assembly
Front passengers seat belt buckle
switch
Front impact sensors
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
