Lexus IS200 - REMOVE INSIDE HANDLE; REMOVE SERVICE HOLE COVER; REMOVE SERVICE HOLE PLATE; REMOVE REAR DOOR BELT MOULDING

H06185
H10383
Adhesive
Tape
H10384
Screw
H10471
H10472
−BODY REAR DOOR
BO−27
LEXUS IS200 (RM684E)

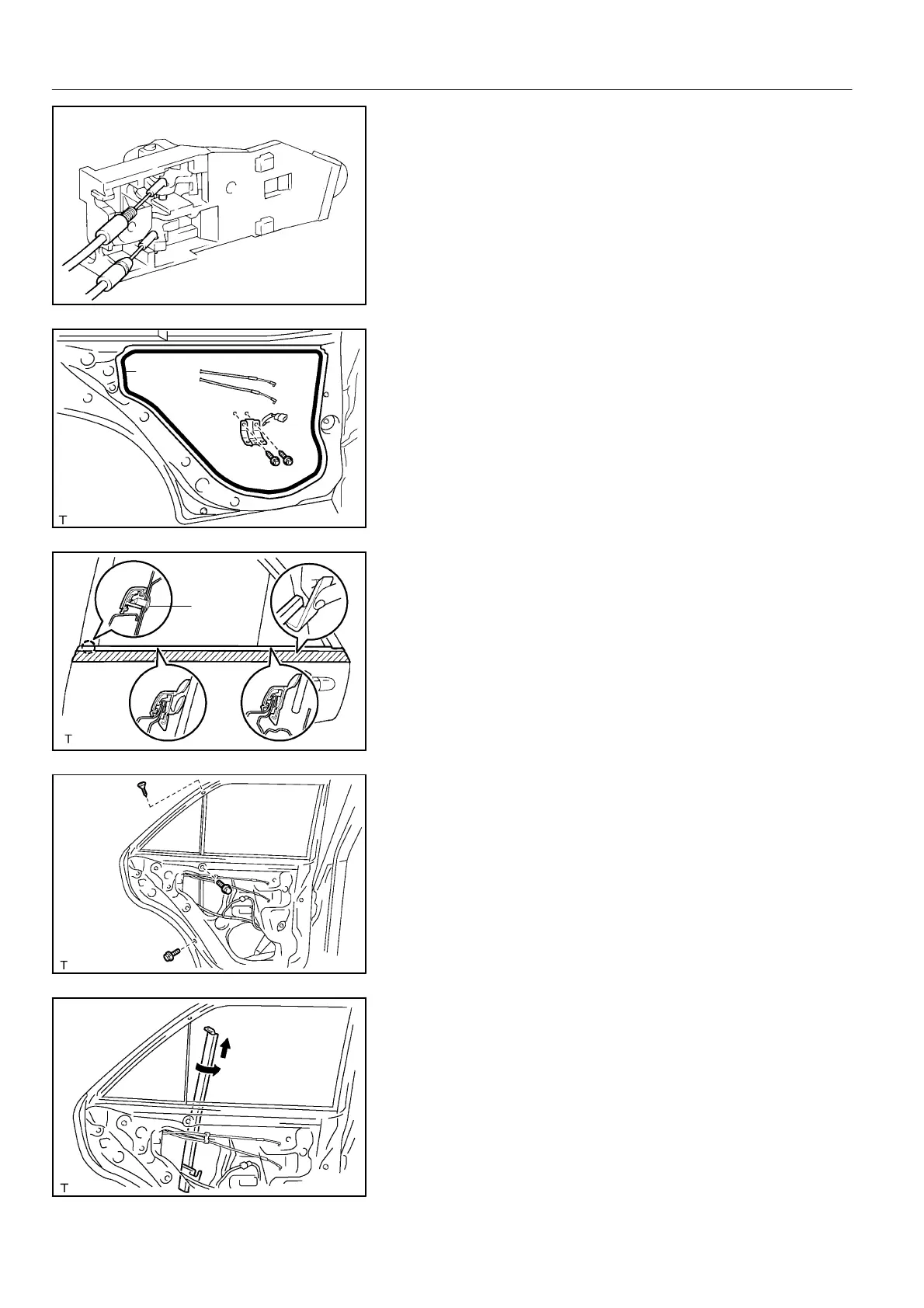

5. REMOVE INSIDE HANDLE
Remove the screw and inside handle, disconnect the 2 cables
from the inside handle.
6. REMOVE SERVICE HOLE COVER
(a) Disconnect the connector.
(b) Remove the 2 screws and door trim bracket.
(c) Remove the service hole cover.
7. w/o Double locking:
REMOVE SERVICE HOLE PLATE
Remove the 2 screws and service hole plate.
8. REMOVE DOOR GLASS RUN
9. REMOVE REAR DOOR BELT MOULDING
(a) Remove a screw.
(b) Apply protective tape to the outer surface as shown in the
illustration to keep the surface from being scratched.
(c) Using a moulding remover, remove the rear door belt
moulding as shown in the illustration.
10. REMOVE DIVISION BAR
(a) Remove the 2 bolts and screw.
(b) Pull the division bar forward.
(c) Rotate the division bar 90˚ and pull it upward as shown
in the illustration.
