H10474
H10382
H10476
H10386
H10387
BO−28
−BODY REAR DOOR
LEXUS IS200 (RM684E)

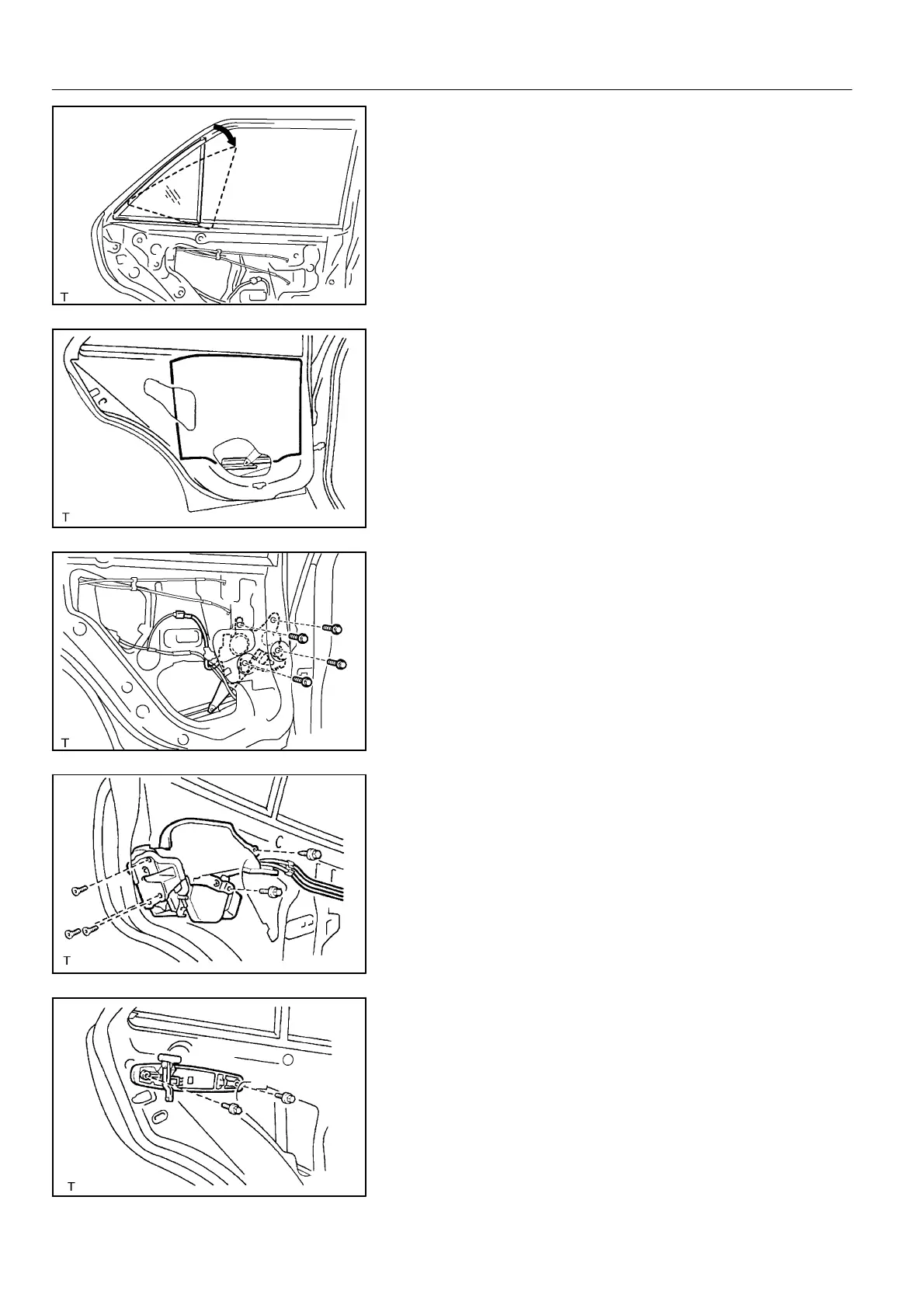

11. REMOVE REAR DOOR QUARTER WINDOW GLASS
(a) Remove the rear door quarter window glass as shown in
the illustration.
NOTICE:
Do not damage the glass.
(b) Remove the quarter window weatherstrip from the glass.
12. REMOVE DOOR GLASS
HINT:
Insert a shop rag inside the door panel to prevent scratching the
glass.
(a) Open the door glass.
(b) Tilt the door glass and disconnect the roller of the regula-
tor from the glass channel to remove the door glass.
13. REMOVE WINDOW REGULATOR
(a) Disconnect the connector.
(b) Remove the 4 bolts and window regulator.
14. REMOVE DOOR LOCK
(a) Remove the child protection cover.
(b) Disconnect the 2 links from the outside handle and key
cylinder.
(c) Remove the bolt and screw.
(d) Using a torx socket wrench, remove the 3 torx screws and
door lock.
Torx socket wrench: T30 (Part No. 09042−00010 or lo-
cally manufactured tool)
HINT:
Remove the door lock through the service hole.
(e) Disconnect the connector.
15. REMOVE OUTSIDE HANDLE
Remove the 2 bolts and outside handle.
16. REMOVE CUSHIONS
