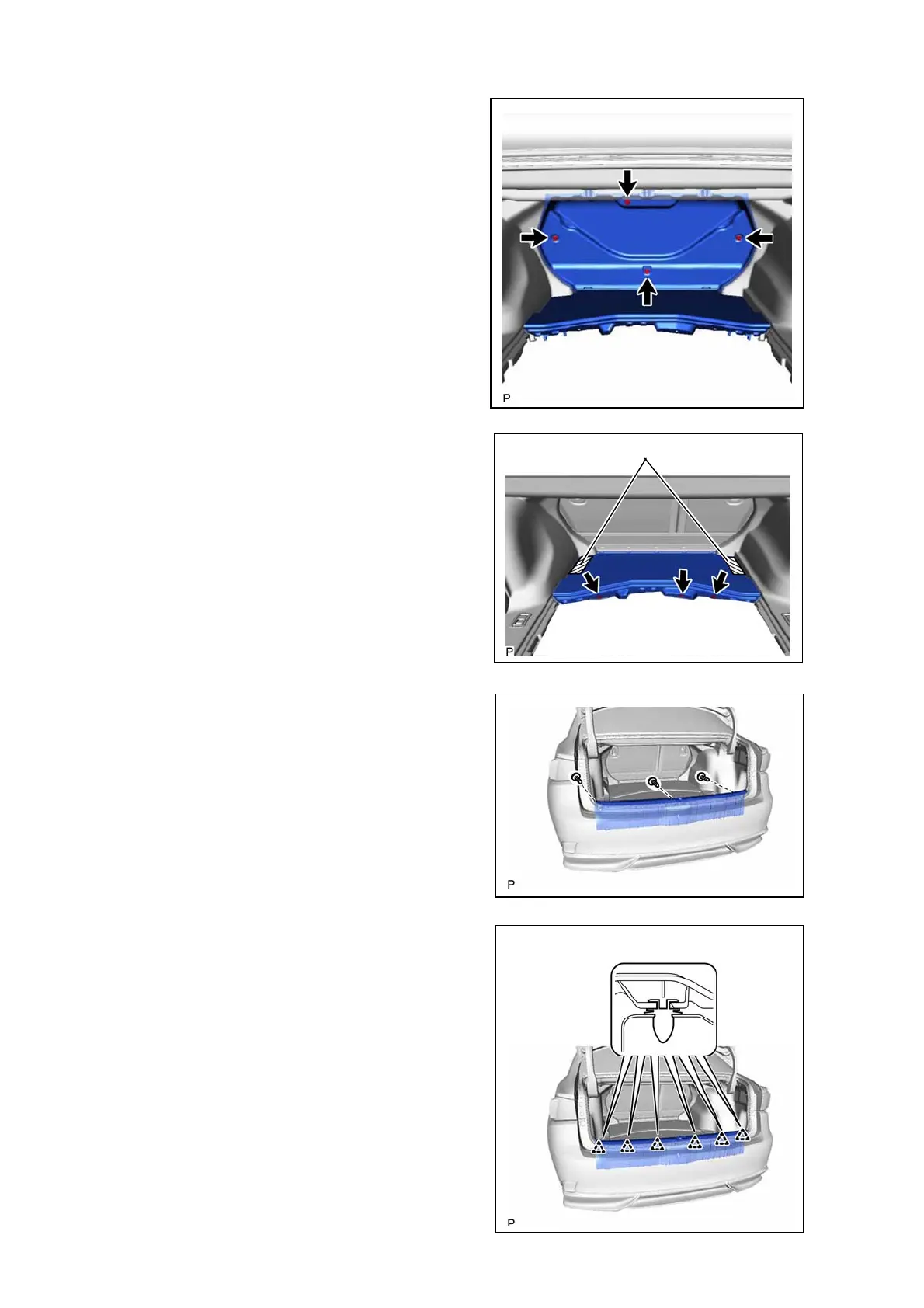

(3) Remove the 4 clips and front luggage
compartment trim cover.
23
Fastener
11. REMOVE FRONT LUGGAGE
COMPARTMENT TRIM COVER (for Fold
Down Seat Type)
(1) Remove the 3 clips.
(2) Disengage the 2 fasteners and remove the
front luggage compartment trim cover.
12. REMOVE REAR LUGGAGE
COMPARTMENT TRIM COVER
(1) Using a clip remover, remove the 3 clips.
(2) Disengage the 6 clips and remove the rear
luggagecompartment trim cover.
To Next Page
