4-3. Do-it-yourself maintenance
4
Maintenance and care

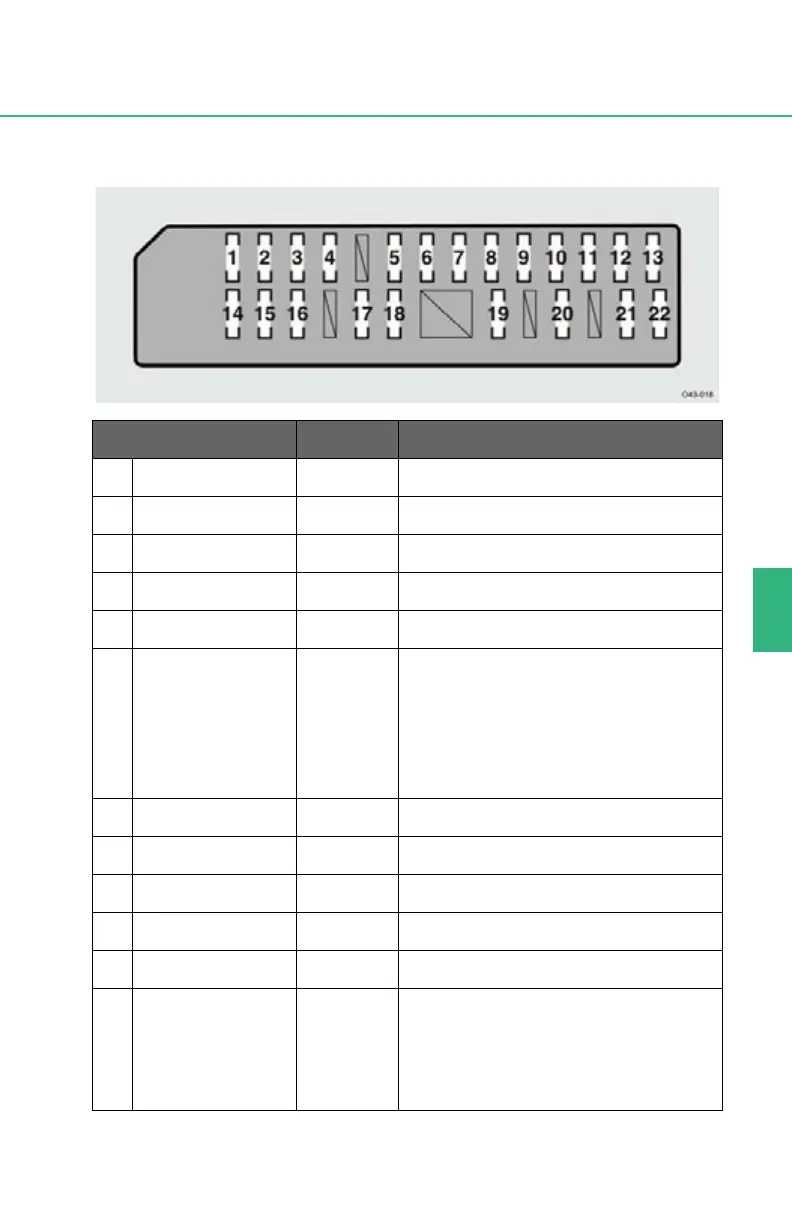

■ Driver’s side instrument panel
Fuse Ampere Circuit
1
D-P/W 20 A Power window (driver's side)
2
D-PWR SEAT 30 A Power seat (driver's side)
3
DRLCK ALT 25 A Main body ECU
4
RLY SIG 5 A PANEL
5
OBD 10 A On-board diagnosis
6
AM1 5 A
D-ACC, P-ACC, CDS FAN, WIP,
WASH, MIR HTR, D-S/HTR, P-S/
HTR, D-IG1-1, D-IG1-2, D-IG1-3, D-
IG1-4, P-IG1-1, P-IG1-2, P-IG1-3, P-
IG1-4, RR-IG1
7
D-S/HTR 15 A Seat heater (driver's side)
8
D-ACC 5 A Main body ECU
9
R/MIR 10 A Outside rear view mirrors
10
D-IG1-1 5 A CAN gateway ECU
11
D-IG1-4 5 A Seat heater (driver's side)
12
D-IG1-2 5 A
Main body ECU, rear hatch, EPS
(Electric Power Steering), tire pres-
sure warning system, charging system,
turn signal lights, emergency flashers
