Fuse layout and amperage ratings

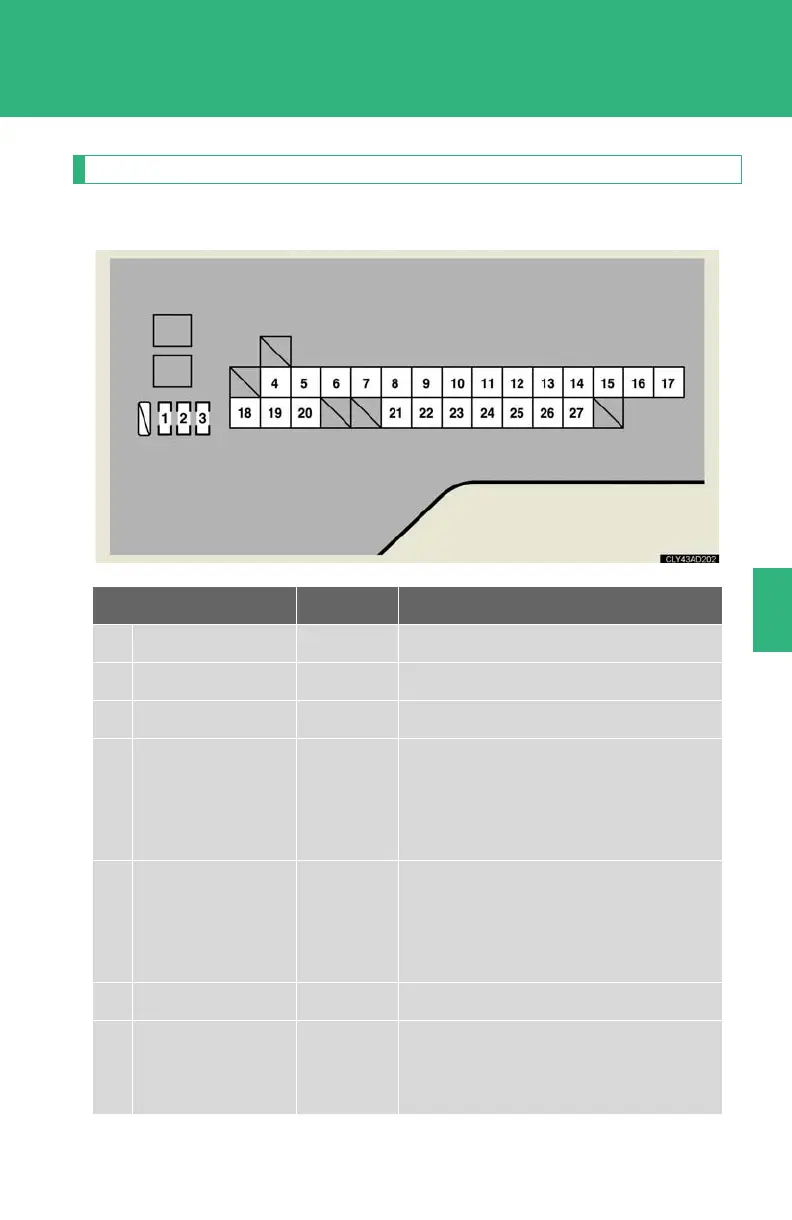

■ Engine compartment (type A fuse box)
Fuse Ampere Circuit
1
PTC HTR 3 25 A PTC heater
2
PTC HTR 1 25 A PTC heater
3
VSSR 5 A Electric power control system
4
ALT 180 A
AIR SUS, HTR, DEFOG, FAN NO.1,
H-LP CLN, PTC HTR 2, PTC HTR,
RR A/C, E/G RM1, D-J/B ALT,
P-J/B ALT, LUG-J/B ALT
5
P-J/B ALT 60 A
P P/SEAT 1, P P/SEAT 2, A/C,
RR SEAT, P-IG1-1, P-IG1-2, P-IG1-3,
P-IG1-4, P-ACC, P-CIG, AIR SUS,
climate control seat system
6
FAN NO.1 80 A Electric cooling fans
7
E/G RM1 80 A
DEICER, WIP, E/G RM-IG1-1,
E/G RM-IG1-2, NV-IR, FR FOG,
FR CTRL ALT, ABS MTR1
