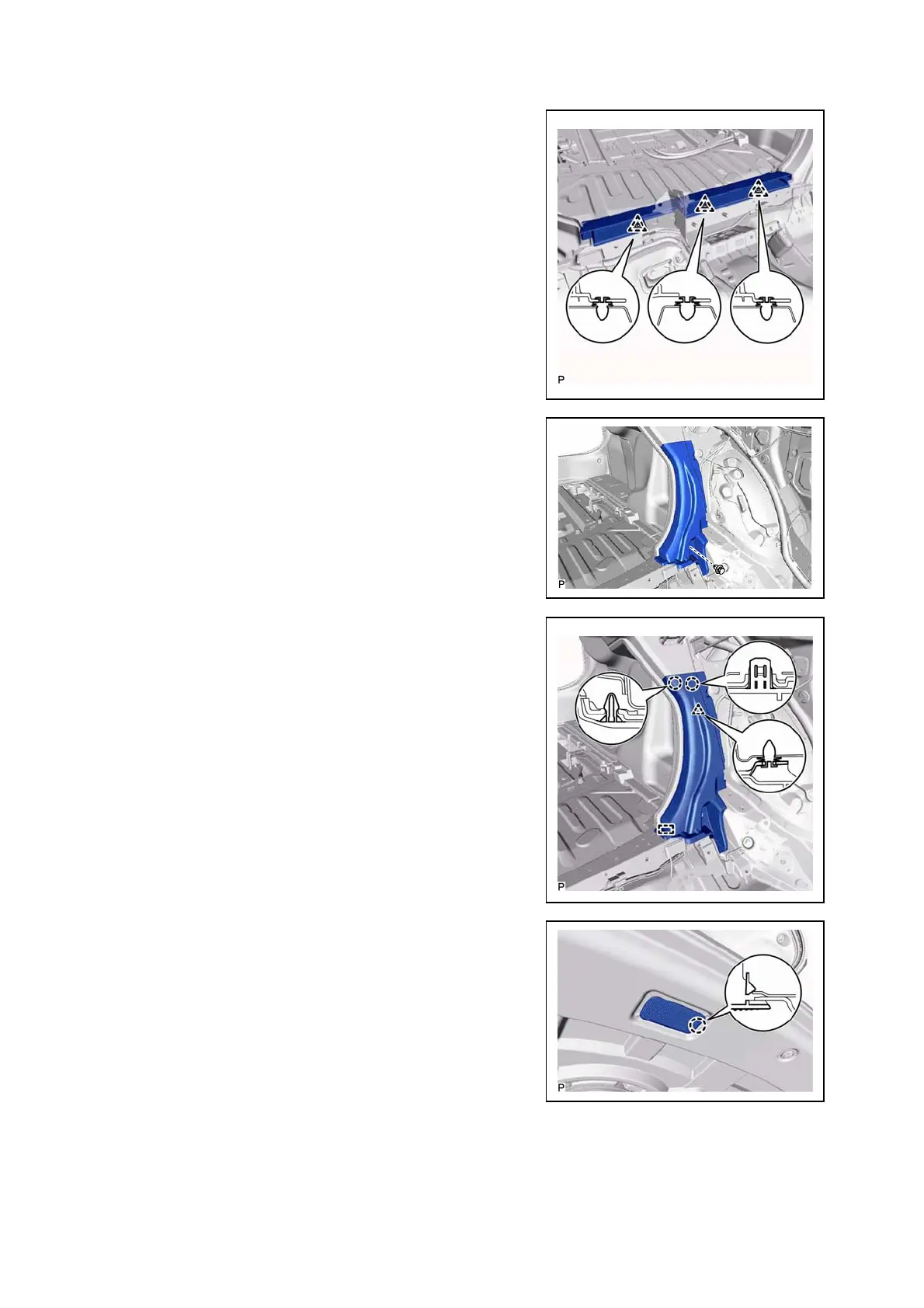

24. REMOVE REAR SEAT SUB FLOOR PANEL
(1) Disengage the 3 clips to remove the rear seat sub
floor panel.
25. REMOVE NO. 2 ROOM PARTITION COVER
(1) Remove the clip.
(2) Disengage the 2 claws and clip.
(3) Disengage the guide to remove the No. 2 room
partition cover.
26. REMOVE NO. 1 ROOM PARTITION COVER
Hint:
Use the same procedure as for the No. 2 room
partition cover.
27. REMOVE NO. 1 LUGGAGE COMPARTMENT
LIGHT ASSEMBLY
(1) Disengage the claw.
(2) Disconnect the connector to remove the No. 1
luggage compartment light assembly.
