28. REMOVE FRONT UPPER LUGGAGE
COMPARTMENT TRIM COVER

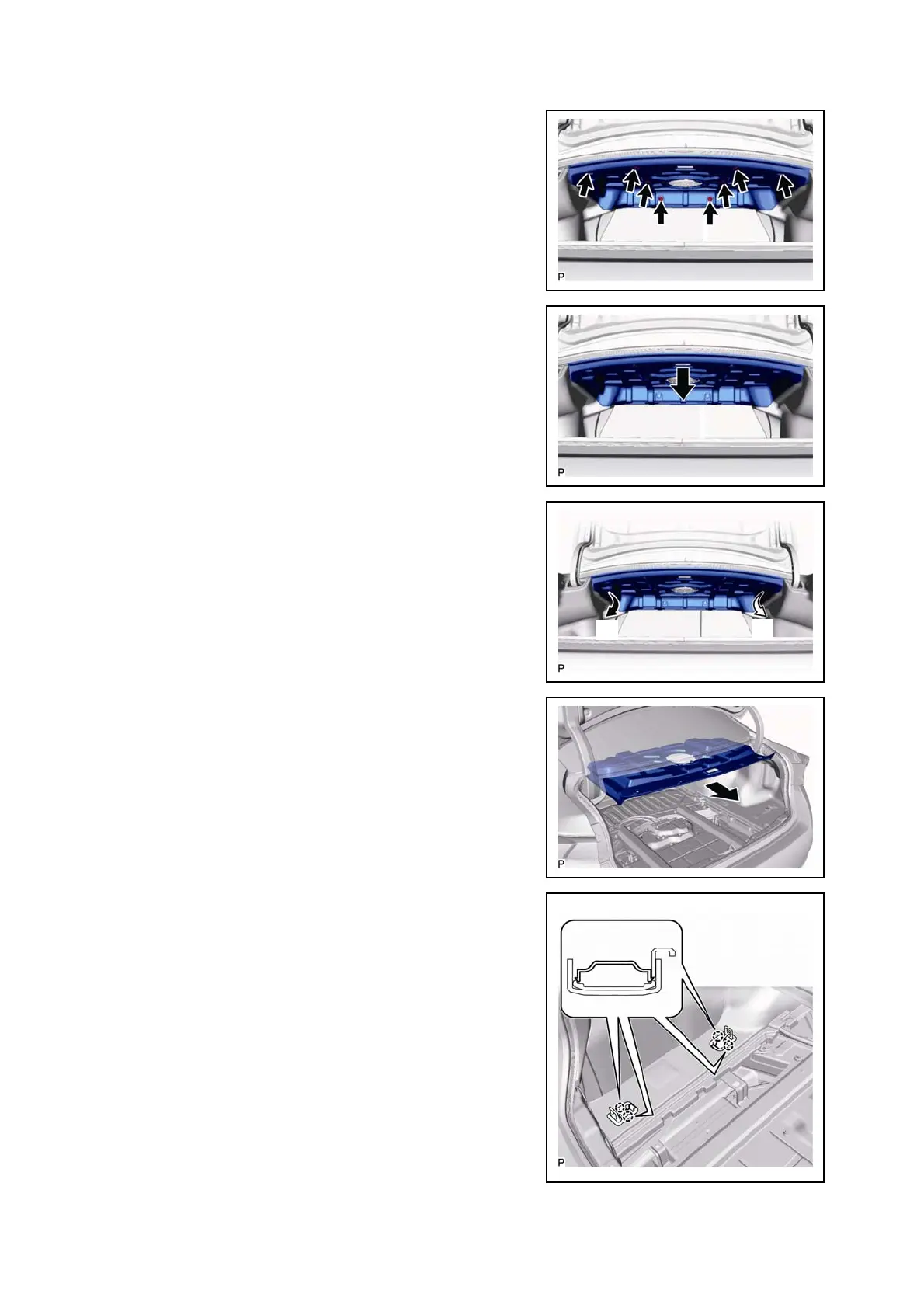

(1) Remove the 8 clips.
(2) Disconnect the front upper luggage compartment
trim cover as shown in the illustration.
(3) Disconnect the front upper luggage compartment
trim cover as indicated by the arrows, in the order
shown in the illustration.
(4) Remove the front upper luggage compartment trim
cover as shown in the illustration.
29. REMOVE ROPE HOOK ASSEMBLY (for LH Side)
(1) Disengage the 4 claws and open the 2 covers.
