Lexus RC300h - Page 35

31

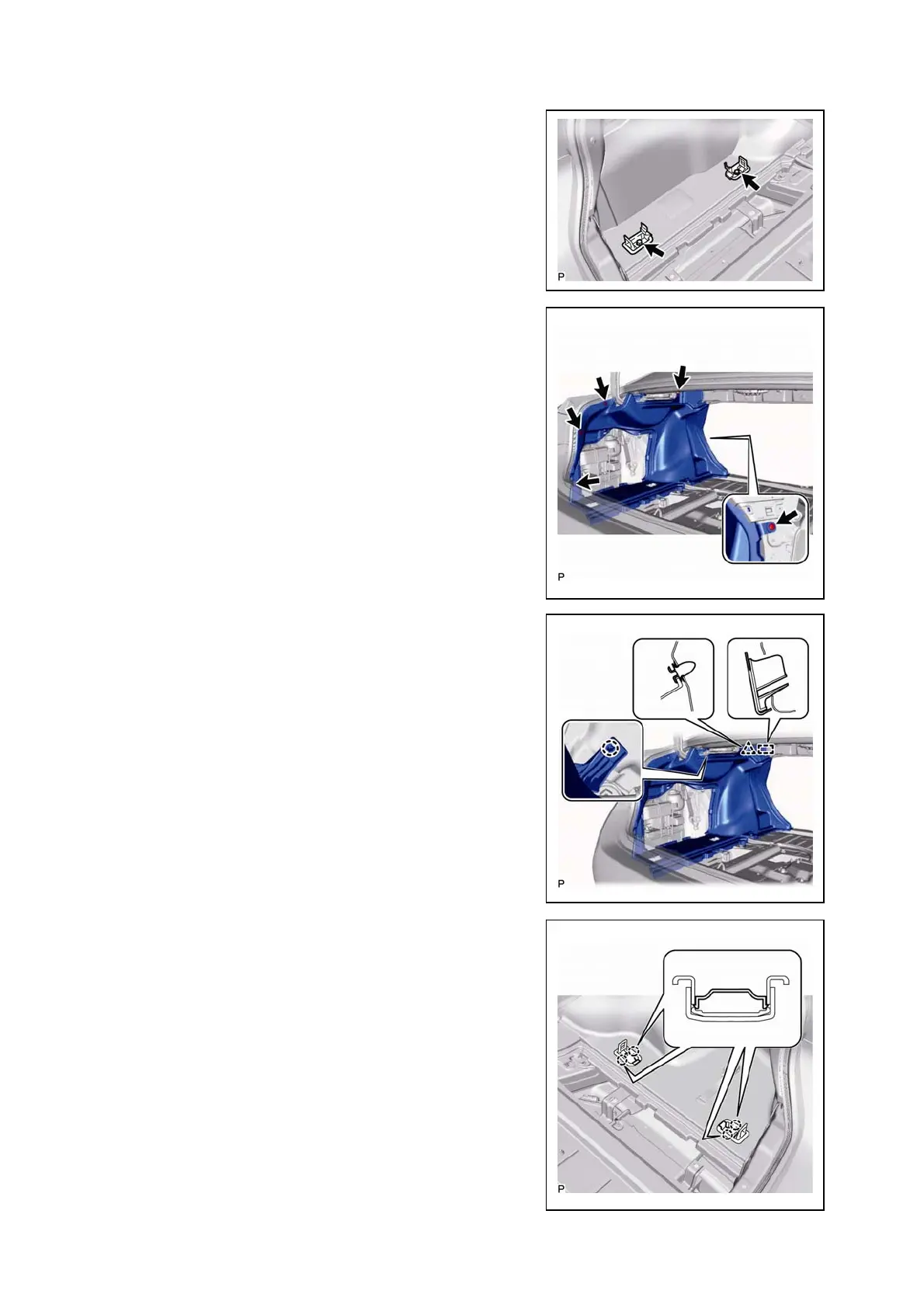

(2) Remove the 2 bolts and 2 rope hook assemblies.
30. REMOVE LUGGAGE COMPARTMENT TRIM
COVER LH (for LH Side)
(1) Using a clip remover, remove the 5 clips.
(2) Disengage the claw.
(3) Disengage the clip and guide to remove the luggage
compartment trim cover LH.
31. REMOVE ROPE HOOK ASSEMBLY (for RH Side)
(1) Disengage the 4 claws and open the 2 covers.
