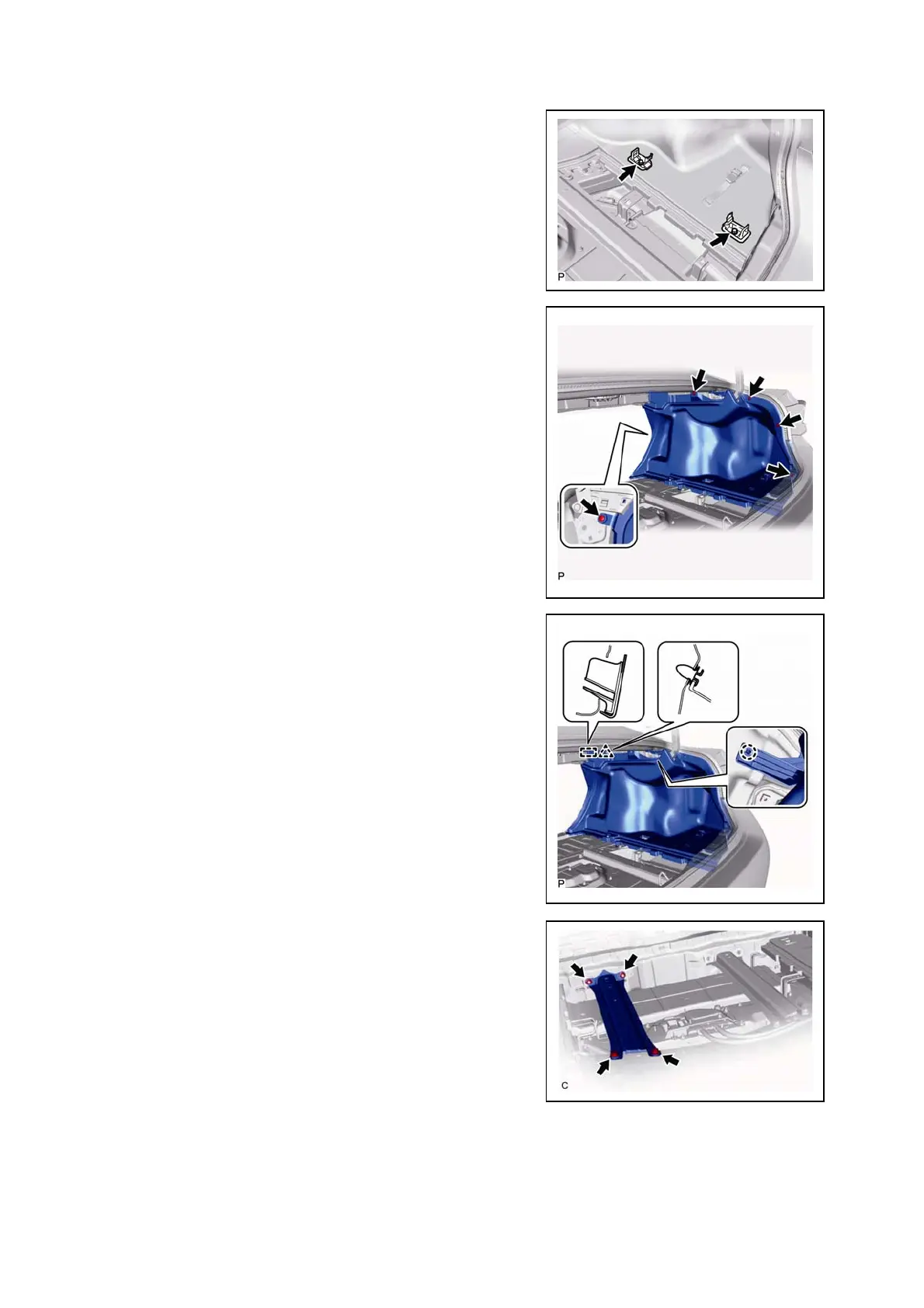

(2) Remove the 2 bolts and 2 rope hook assemblies.
32. REMOVE LUGGAGE COMPARTMENT TRIM
COVER RH (for RH Side)
(1) Using a clip remover, remove the 5 clips.
(2) Disengage the claw.
(3) Disengage the clip and guide to remove the luggage
compartment trim cover RH.
33. REMOVE REAR NO. 1 FLOOR CROSSMEMBER
BRACE RH
(1) Remove the 2 bolts, 2 nuts and rear No. 1 floor
crossmember brace RH.
