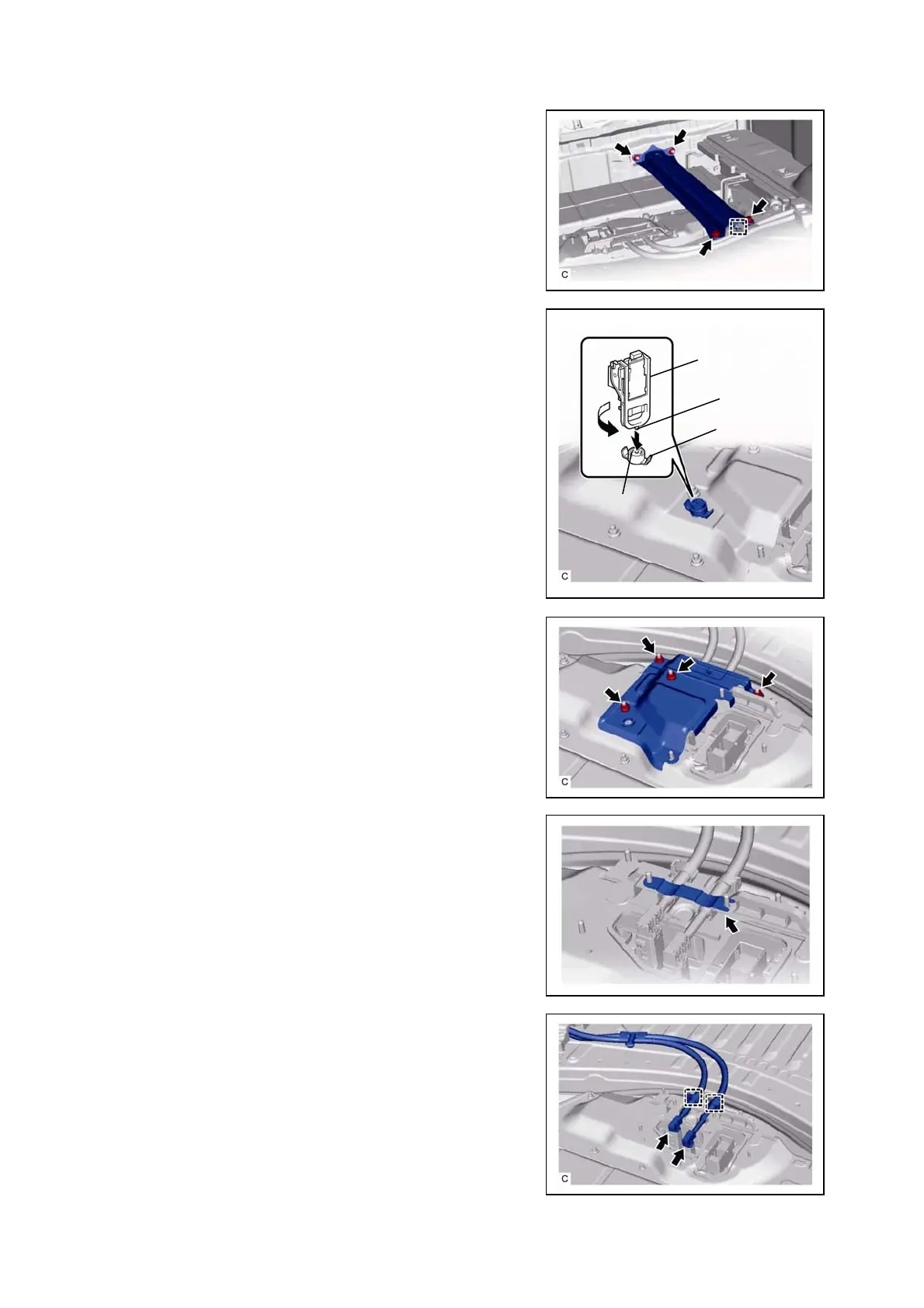

34. REMOVE REAR NO. 1 FLOOR CROSSMEMBER
BRACE LH
(1) Disengage the clamp.
(2) Remove the 2 bolts, 2 nuts and rear No. 1 floor
crossmember brace LH.
35. REMOVE NO. 4 HV BATTERY SHIELD PANEL
Caution:
Wear insulated gloves.
(1) Using the service plug grip, remove the battery cover
lock striker from the No. 4 HV battery shield panel.
Hint:
Insert the projection of the service plug grip and turn
the button of the battery cover lock striker
counterclockwise to release the lock.
(2) Remove the 4 nuts and No. 4 HV battery shield panel.
36. DISCONNECT FRAME WIRE
Caution:
Wear insulated gloves.
(1) Remove the earth terminal from the upper No. 1
hybrid battery cover sub-assembly.
(2) Disengage the 2 clamps.
(3) Disconnect the 2 frame wire connectors from the
hybrid battery terminal block.
Notice:
Insulate the disconnected connectors with insulating
tape.
Service Plug Grip
Turn
Button
Projection
Loc
Strike
