34

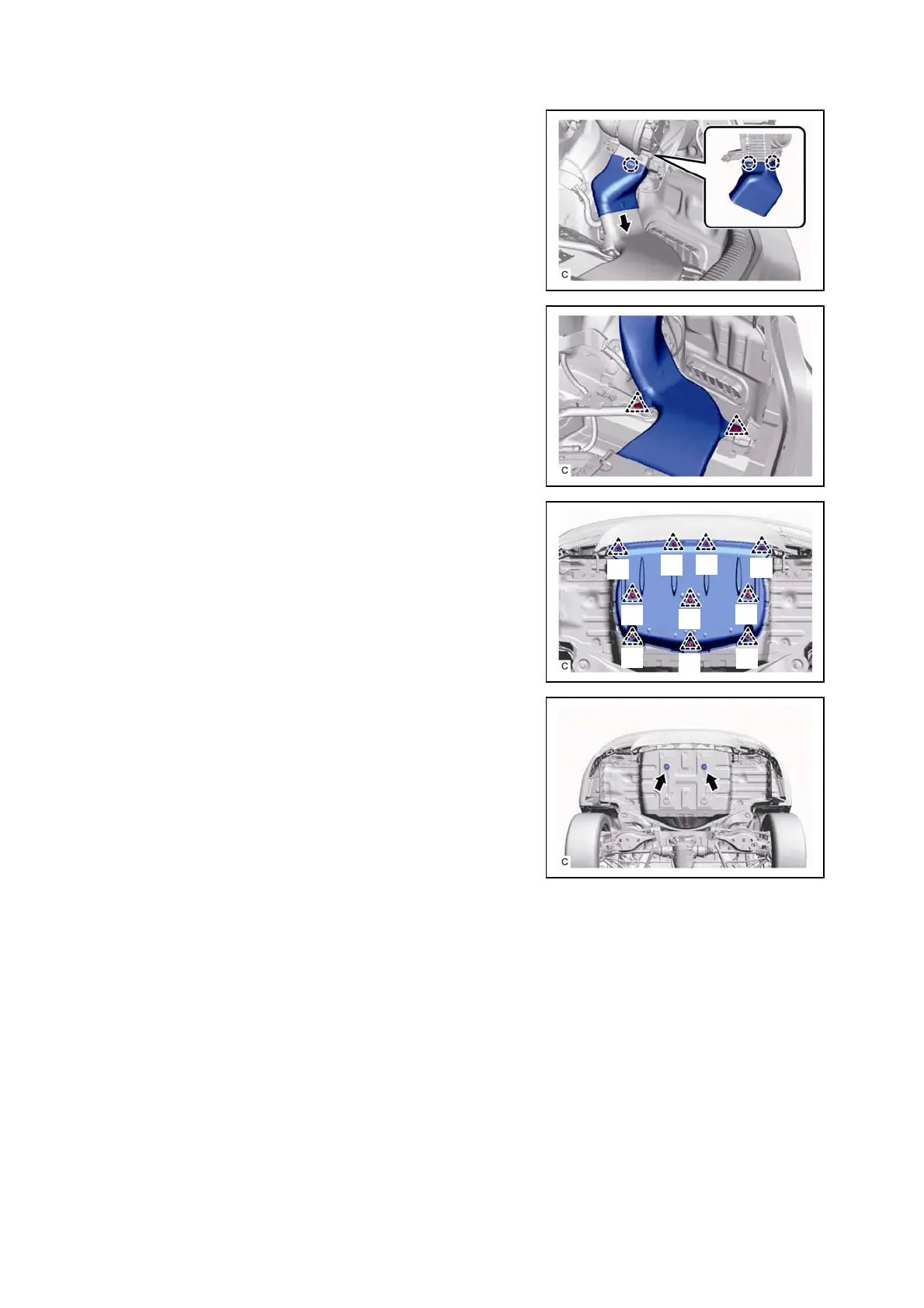

37. SEPARATE NO. 3 HYBRID BATTERY INTAKE
DUCT
(1) Disengage the 3 claws.
(2) Slide the No. 3 hybrid battery intake duct as shown
in the illustration to separate the No. 3 hybrid battery
intake duct from the battery cooling blower assembly.
38. REMOVE NO. 4 HYBRID BATTERY INTAKE
DUCT
Caution:
Wear insulated gloves.
(1) Remove the 2 clips and No. 4 hybrid battery intake
duct with No. 3 hybrid battery intake duct from the
HV battery.
39. REMOVE NO. 1 FLOOR UNDER COVER
ASSEMBLY
(1) Remove the 4 clips (A).
(2) Disengage the 6 clips (B) to remove the No. 1 floor
under cover assembly.
40. REMOVE HV BATTERY
Caution:
Wear insulated gloves.
(1) Remove the 2 grommets.
A
B
A
A
A
B
B
B
B
B
To Next Page
