Lexus RC300h - Page 39

35

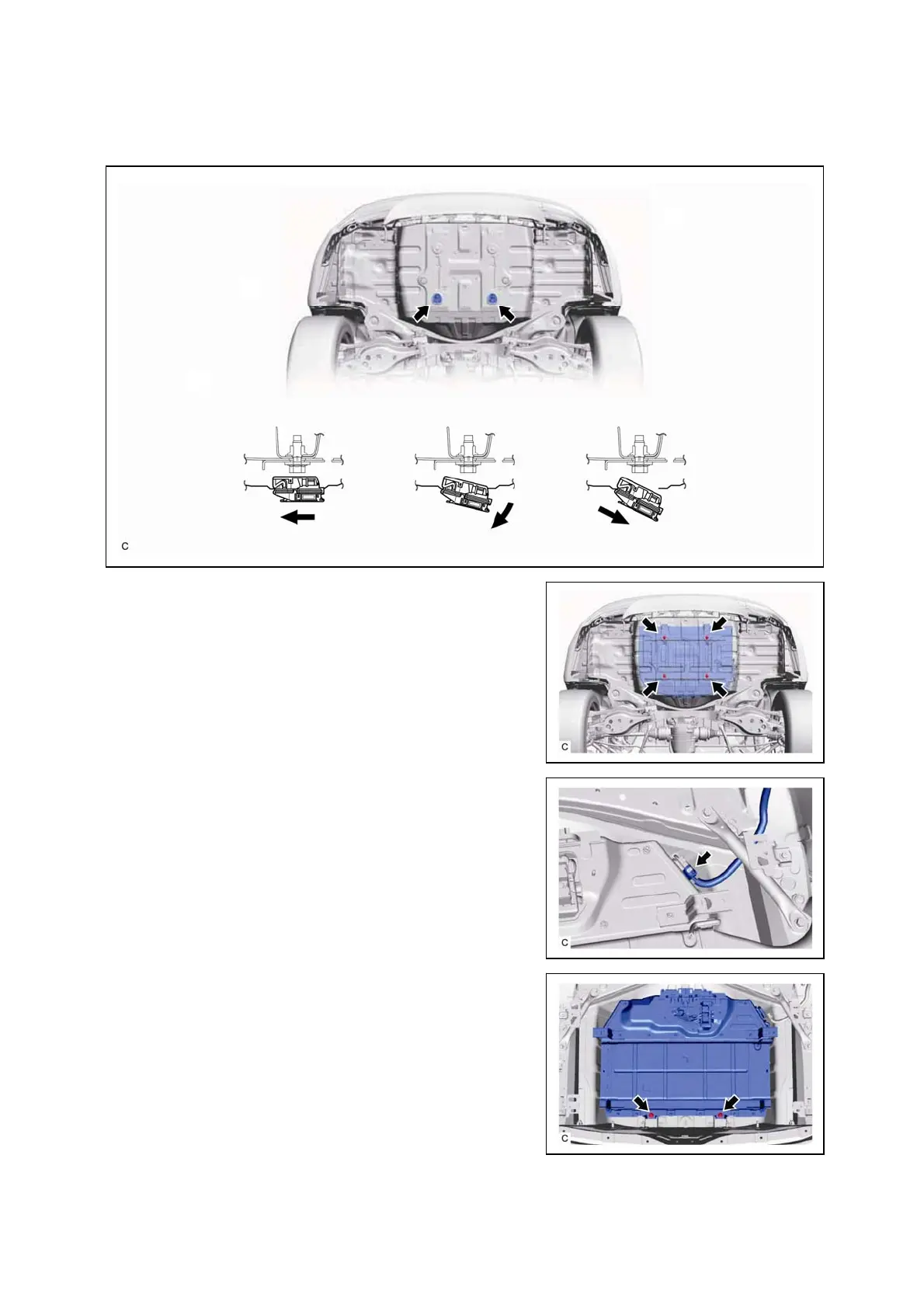

(2) Remove the 2 battery drain plugs as indicated by the arrows, in the order shown in the
illustration.
(3) Remove the 4 bolts.
(4) Disconnect the HV battery connector.
(5) Remove the 2 bolts.
1
2
3
Push the battery drain plug toward
the front of the vehicle.
While pushing the battery drain
plug, disengage the rear claw.
Remove the battery drain plug.
