401
6-3. Do-it-yourself maintenance
6
Maintenance and care
10 Install the cover.
11 Remove the protective tape.

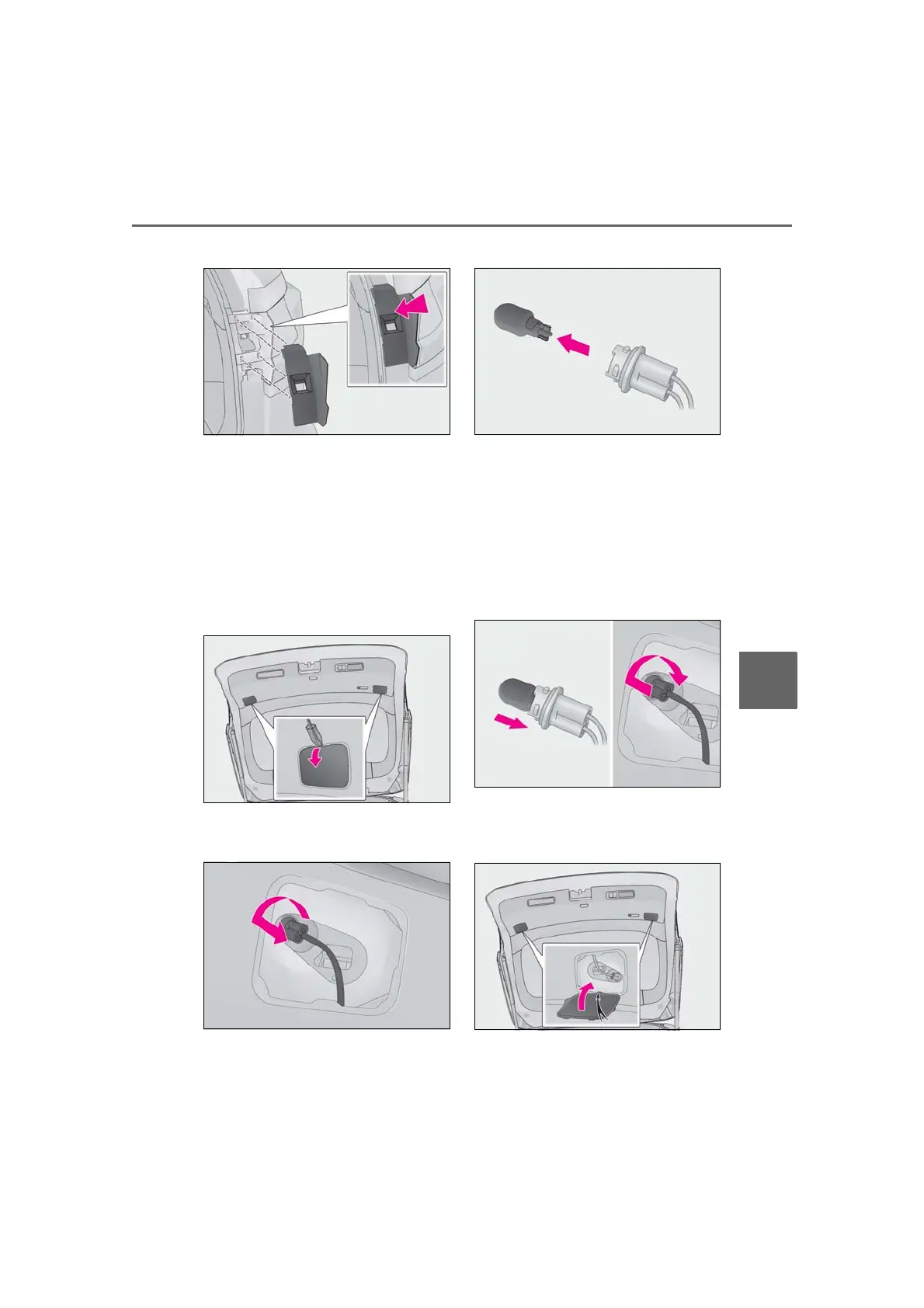

■ Back-up lights (bulb type)
1 Open the back door and remove
the cover.
Using a flathead screwdriver, remove the
cover.
To prevent scratching to the vehicle, wrap
the tip of the flathead screwdriver with a
cloth, etc.
2 Turn the bulb base counterclock-
wise and remove it.
3 Remove the light bulb.
4 Install a new light bulb and then
install the bulb base to the light unit
by inserting it and turning it clock-
wise.
After installing the bulb base, wiggle it
lightly to make sure it is securely installed
and turn on the back-up lights to visually
check that there is no light leaking from
between the bulb base and light unit.
5 Install the cover.
Align the tabs of the cover with the grooves
and install the cover.
