LEYBOLD DI2000 - Operation with Other Supply and Evaluation Units

8 300360490_002_C0 - 09/2016 - © Leybold
3.3.2 Operation with Other Supply And Evaluation Units
The transducer can be operated with other customer related display units or
voltage supplies.
Incorrect connection or inadmissible supply voltage can damage
the transducer.
The electrical connection is to be made in compliance with EMI requirements
(double-shielded cable) and according to the pin description shown below:

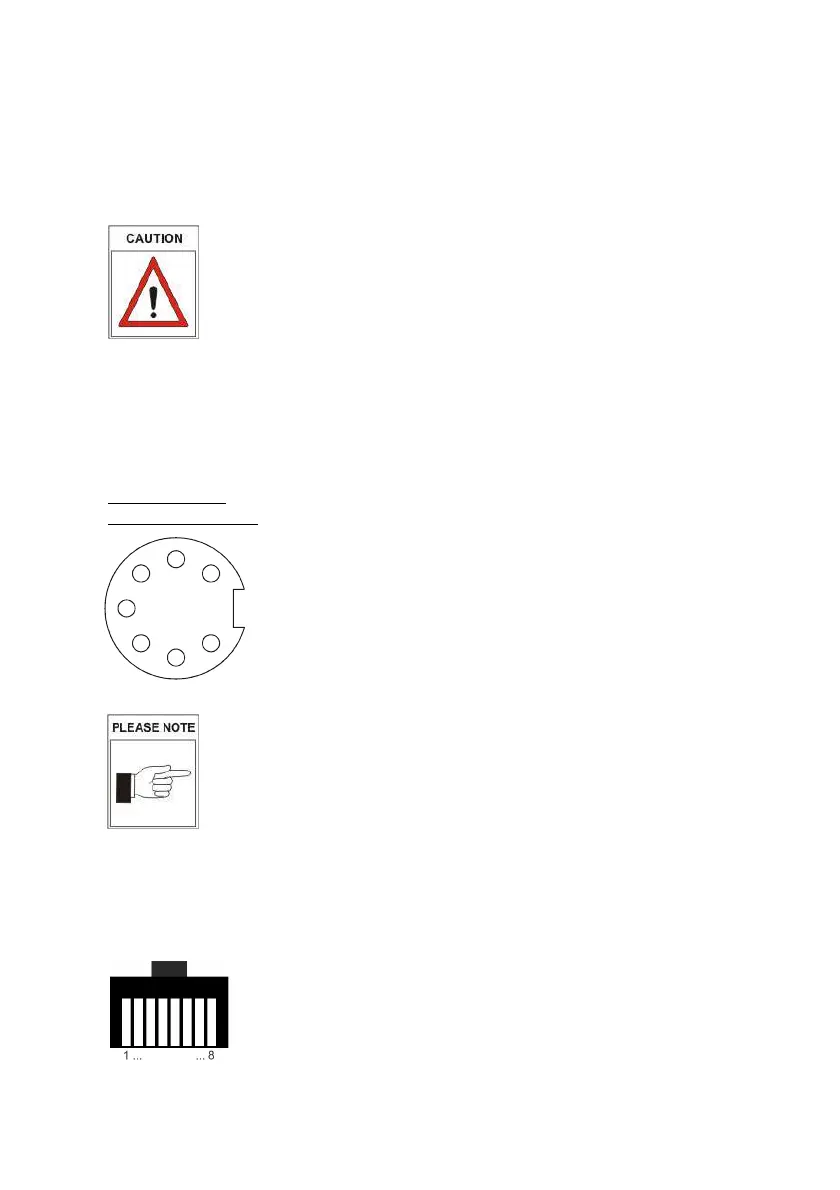

DI2000 / DI2001
Pin description
connector topview:
Diode plug, 7-pin, male
Pin 1:
Pin 2 brown+white/brown:
Pin 3 blue+white/blue:
Pin 4:
Pin 5 green+white/green:
Pin 6 orange+white/orange:
Pin 7 Schirm:
do not connect
Output 4 - 20 mA
1,91 MΩ to PIN 6
do not connect
453 kΩ to PIN 6
Voltage supply: +12 to +30 VDC
Shield
Maximum admissible load resistor in Ω:
( Supply Voltage(V) – 12V ) / 0,02A
DU2000 / DU2001
FCC68, 8-pin, male
Pin 1 white/orange:
Pin 2 orange:
Pin 3 white/green:
Pin 4 blue:
Pin 5 white/bue:
Pin 6,7,8:
Voltage supply: +14,5 to +30 VDC
GND
Output 2 - 10 VDC
8,2 kΩ to Pin 2
Signal ground
do not connect
3
7
5
2
4
1
6
