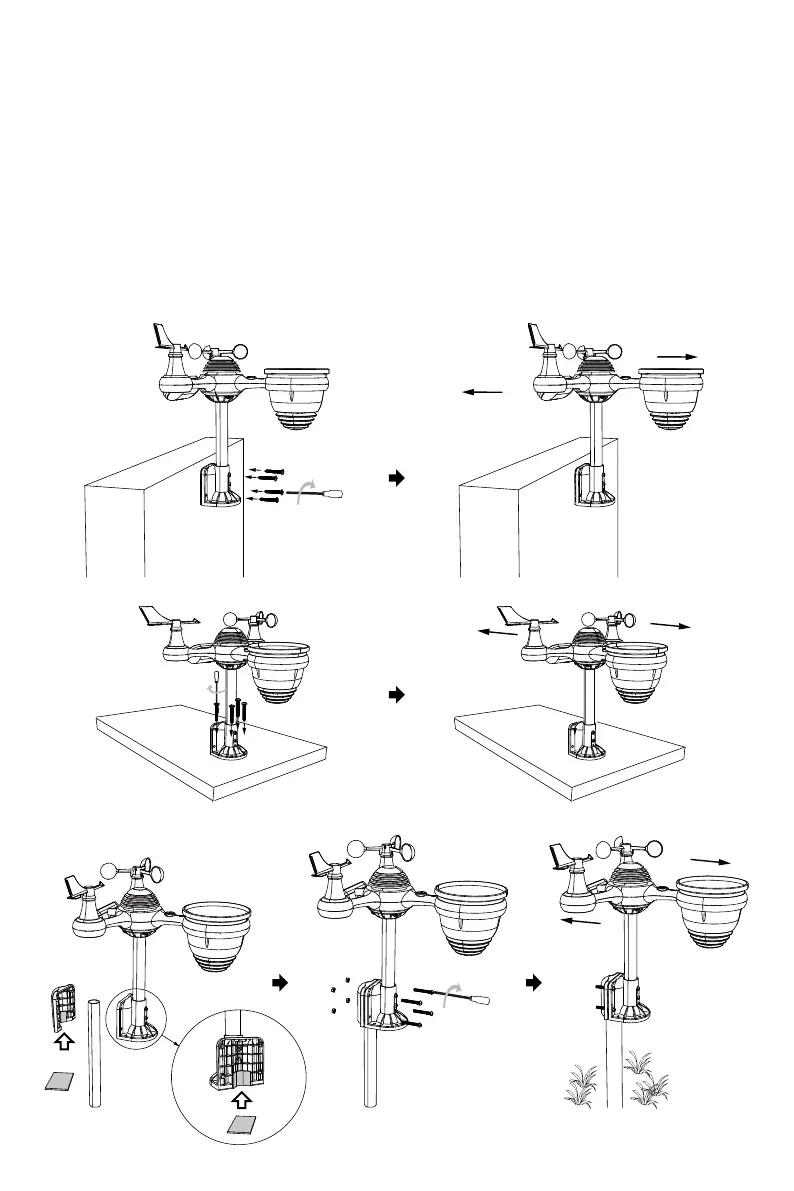

MOUNTING THE WIRELESS 7-IN-1 OUTDOOR SENSOR
Pick a location for the 7-in-1 outdoor sensor that is open with no obstructions.
Tighten the mounting brackets to a surface/wall using four tapping screws (included), or
tighten the mount pole to your existing mounting pole with four φ5 Bolts and M5 Nuts
assembly.
Add rubber pads onto the mounting bracket before fastening the mounting bracket on
the sensor.
Make sure the rain collector faces north and the solar panel faces south before fastening
the screws (included).
Please ensure that the sensor is fixed particularly tightly, otherwise windy conditions
cause the transmitter to shake and thus misread the rainfall data.
●
●
●
●
●
Stick
Stick
Point to
NORTH
Point to
NORTH
Point to
NORTH
Point to
SOUTH
Point to
SOUTH
Point to
SOUTH
