LG 26LG3DCH User Manual

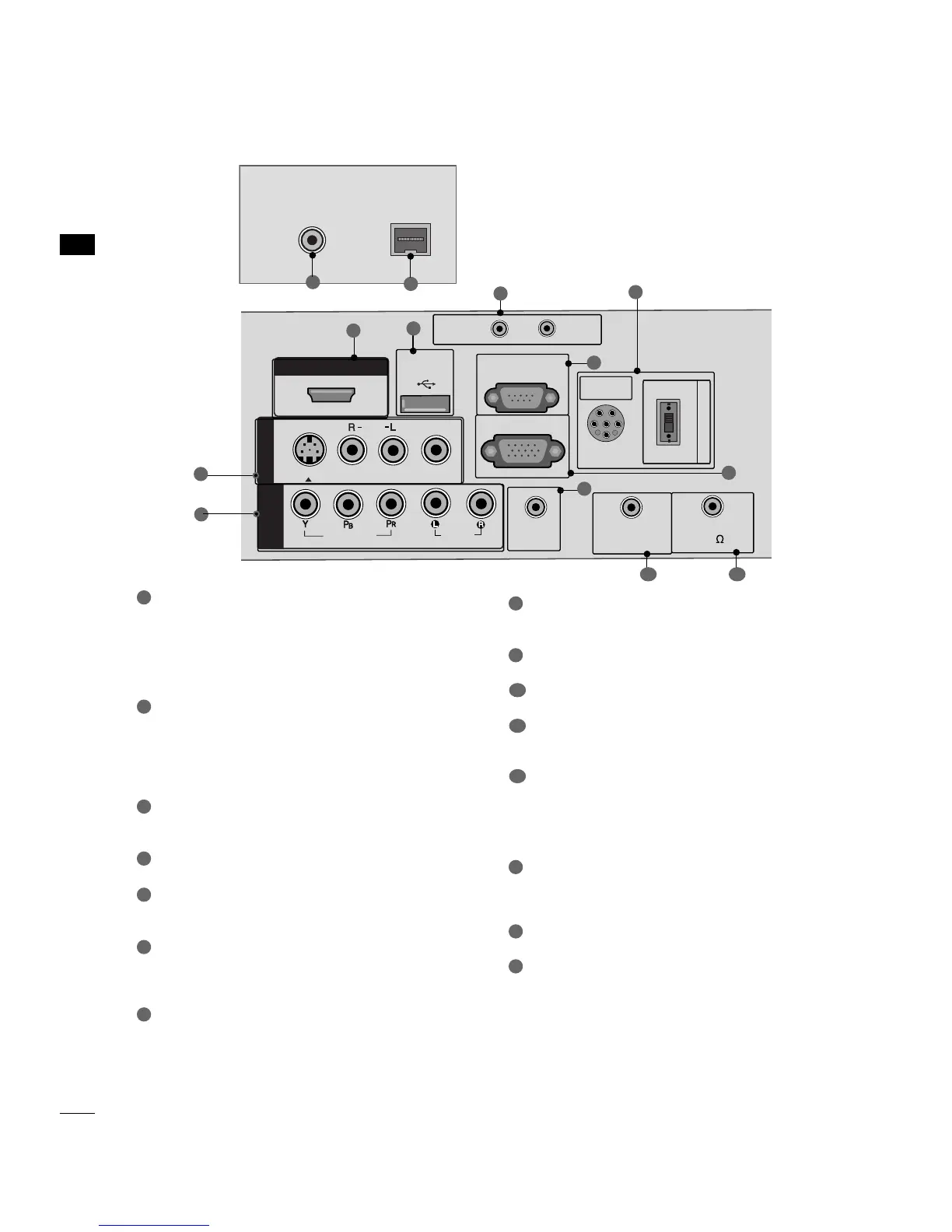

AUDIO IN (RGB/DVI)
Connect the audio from a PC or DTV.
REMOTE CONTROL OUT
SPEAKER OUT 8
Ω
H/P
Plug the headphone into the headphone socket.
Power Cord Socket
For operation with AC power.
Caution: Never attempt to operate the TV on DC
power.
ANTENNA IN
Connect over-the air signals to this jack.
M.P. I.
PILLOW SPEAKER (only 26/32LG3DCH model)
Used to connect to pillow speaker.
SPEAKER SWITCH (only 26/32LG3DCH model)
Used to select the speaker output switch.
Note: If Pillow Speaker is selected, no Sound will be
heard from TV speakers.
Switch (NORMAL SPEAKER or PILLOW SPEAKER.)
AV (Audio/Video) IN
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
HDMI/DVI IN
Digital Connection. Supports HD video and Digital
audio.
Accepts DVI video using an adapter or HDMI to
DVI cable (not included)
USB IN SERVICE ONLY
Used for software updates.
UPDATE / RESET
RS-232C IN (SERVICE ONLY)
Used by third party devices.
RGB IN (PC)
Connect the output from a PC. Connect over-the
air signals to this jack.
COMPONENT IN
Connect a component video/audio device to
these jacks.
PREPARATION
10
PREPARATION
1
2
3
4
5
9
8
6
7
AUDIO IN
(RGB/DVI)
VIDEO
AUDIOAUDIO
HDMI/DVI INHDMI/DVI IN
USB INUSB IN
SERVUCE ONLYSERVUCE ONLY
AV IN 1
VIDEOVIDEO
MONO
( )
AUDIOAUDIO
S-VIDEO
COMPONENTCOMPONENT IN
RGB IN (PC)
RESET
UPDATE
RS-232C INRS-232C IN
(SERVICE ONLY)(SERVICE ONLY)
REMOTE
CONTROL OUT
SPEAKER OUT
8
R
PILLOW
SPEAKER
NORMALNORMAL
SPEAKERSPEAKER
PILLOWPILLOW
SPEAKERSPEAKER
SPEAKER SWITCH
PILLOW
SPEAKER
NORMAL
SPEAKER
PILLOW
SPEAKER
SPEAKER SWITCH
6
5
10
11
7
1
8
12
2
3
4
( )
ANTENNA INANTENNA IN
M.P.I.M.P.I.
13
14
13
14
9 10
15
15
(only 26/32LG3DCH model)
