3.1. EDID Process

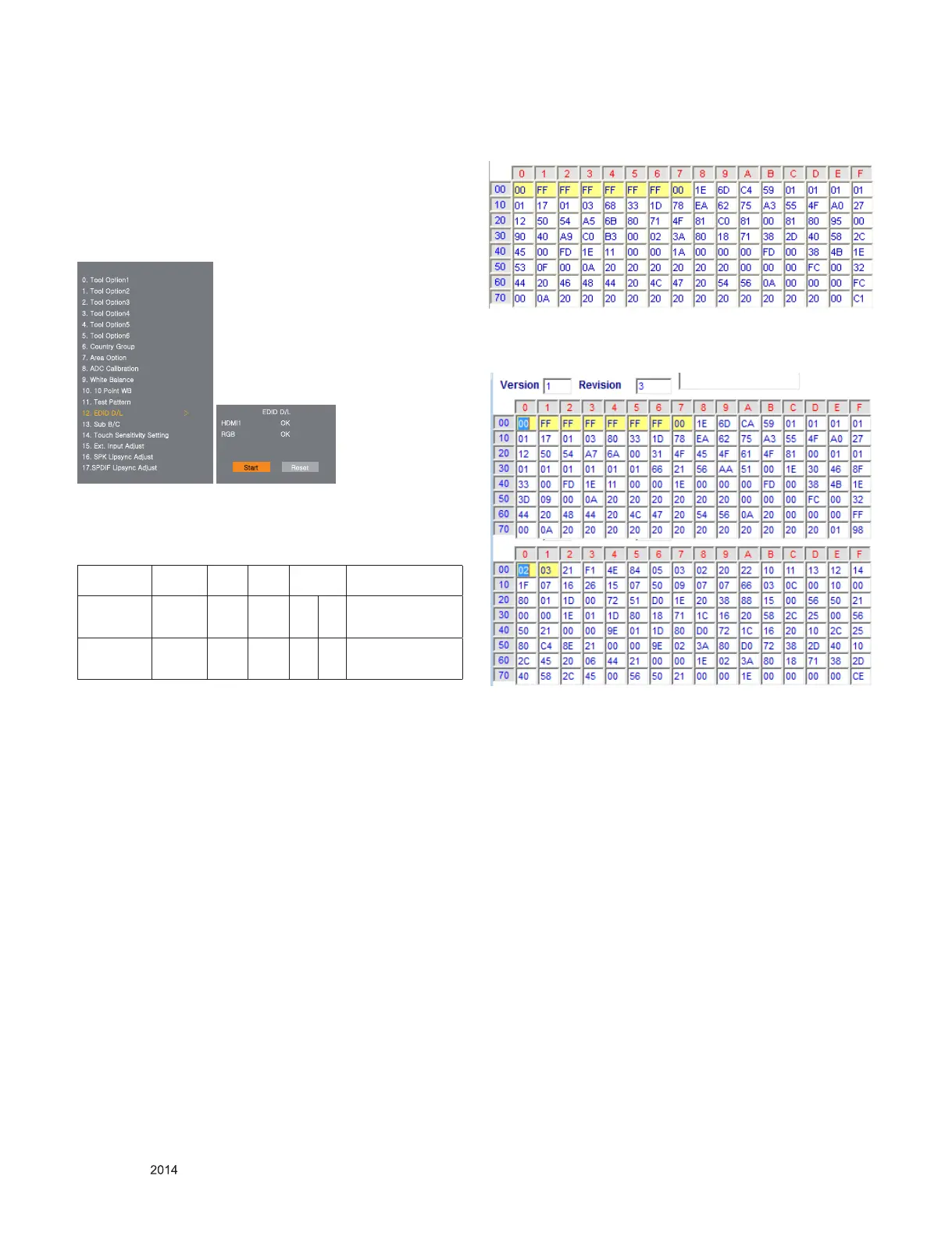

3.1.1. EDID download
1) Press “Power only” key of service remote controller.
2) Press the “ADJ” Key of service remote controller.
3) Enter EDID D/L mode by pushing “►” key at “EDID D/L”.
4) Select “Start” menu to download EDID data.
5) Check the “OK” message.
6) Press EXIT key on R/C.
→ Caution: - Do not connect HDMI & D-sub Cable when
download EDID.
* Edid data and Model option download (RS232)
3.1.2. RGB EDID Data
▪ RGB EDID Data (Rev2, 2012.08.29) - Checksum : C1
3.1.3. HDMI EDID Data
▪ HDMI EDID Data - Checksum : 98,C1
3.2. Function Check
3.2.1. Check display and sound
*Check Input and Signal items. (cf. work instructions)
1) TV
2) AV (SCART/CVBS)
3) COMPONENT (480i)
4) HDMI(PC : 1920 x 1080 @ 60 Hz)
5) RGB
* Display and Sound check is executed by Remote controller
→ Caution : Not to push the INSTOP KEY after completion if
the function inspection.
