STAND INSTRUCTIONS
(For 32/37/42/47LD450, 37/42/47LD450C, 42/47/55LD630, 42/47LD451C, 32/37/42/47LD452C,
32/37/42/47LD452B, 26LD352C)
ᯫ
Image shown may differ from your TV.
!
NOTE
Ź When assembling the desk type stand,
make sure the screws are fully tightened (If
not tightened fully, the TV can tilt forward
after the product installation). Do not over
tighten.

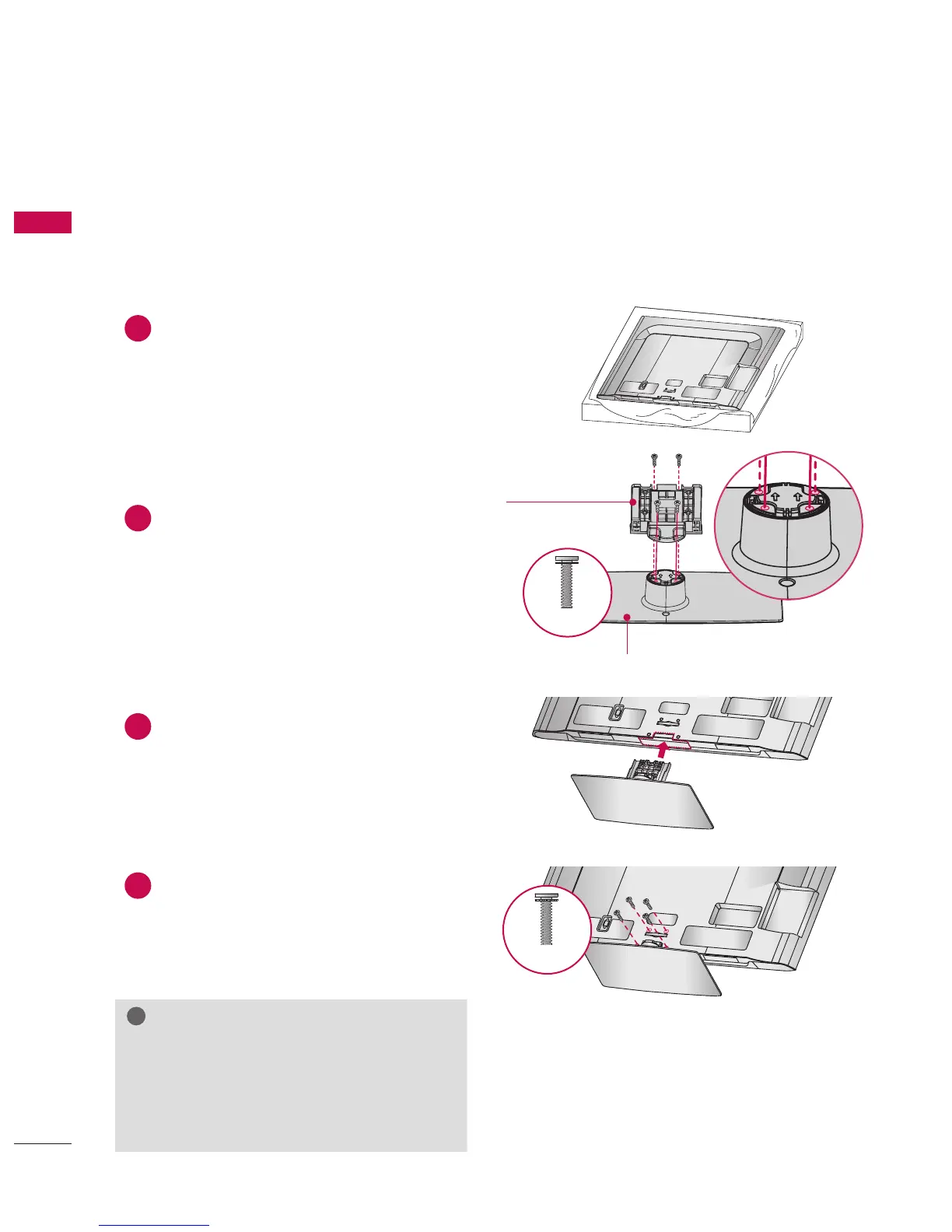

1
Carefully place the TV screen side down on
a cushioned surface to protect the screen
from damage.
3
Assemble the TV as shown.
4
Install the 4 screws into the holes shown.
AC IN
CA
B
LE MA
N
AGE
ME
N
T
AC IN
CABLE MANAGEMENT
AC IN
CABLE MANAGEMENT
INSTALLATION
2
Assemble the parts of the STAND BODY
with the STAND BASE of the TV.
STAND BASE
STAND BODY
M4 x 20
M4 x 20
