LG 32CS410 - Audio and Signal Troubleshooting

- 15 -
LGE Internal Use OnlyCopyright © LG Electronics. Inc. All rights reserved.
Only for training and service purposes

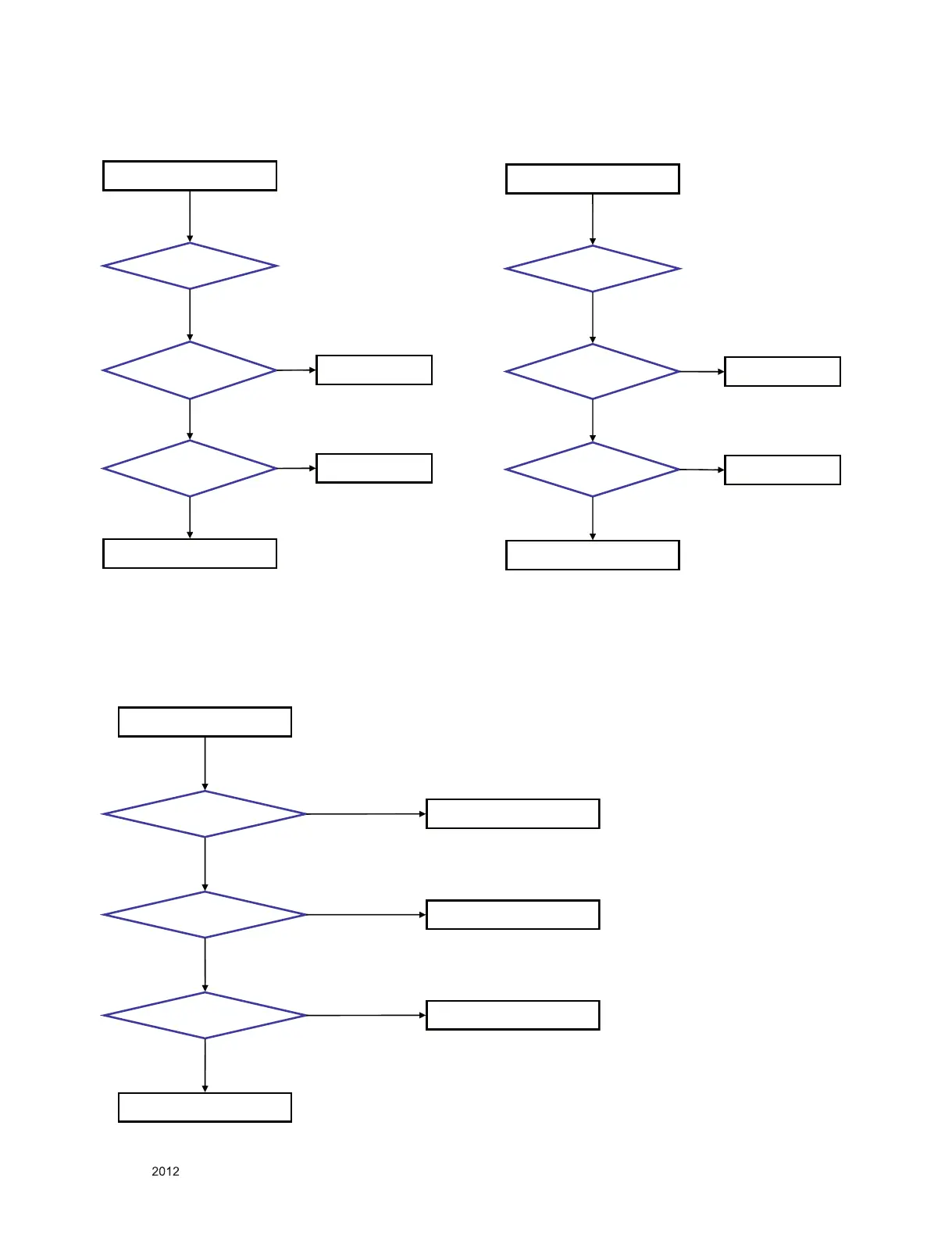

No Raster On AV Video Signal
No Signal On TV(RF) Signal
Check Input source
Cable And Jack
Pass
Check Input source
Cable And Jack
Pass
Check The Input/Output
Of JK101
Pass
Re-soldering or
Change the defect part
Pass
Fail
Pass
Repeat [A]/[A-1], & [B] Process
Check the Input/Output
Of IC501
Fail
Re-soldering or
Change the defect part
Pass
Check The Input/Output
Of TU401
Pass
Re-soldering or
Change the defect part
Pass
Fail
Check the Input/Output
Of IC501
Fail
Re-soldering or
Change the defect part
Repeat [A]/[A-1], & [B] Process
No Sound
Check The Input Source
Check The Input/Output
Of IC301
Re-soldering or
Change the defect part
Fail
Pass
Pass
Check The Speaker
Change Speaker
Fail
Check The Speaker Wire
Pass
Change The Source Input
Fail
