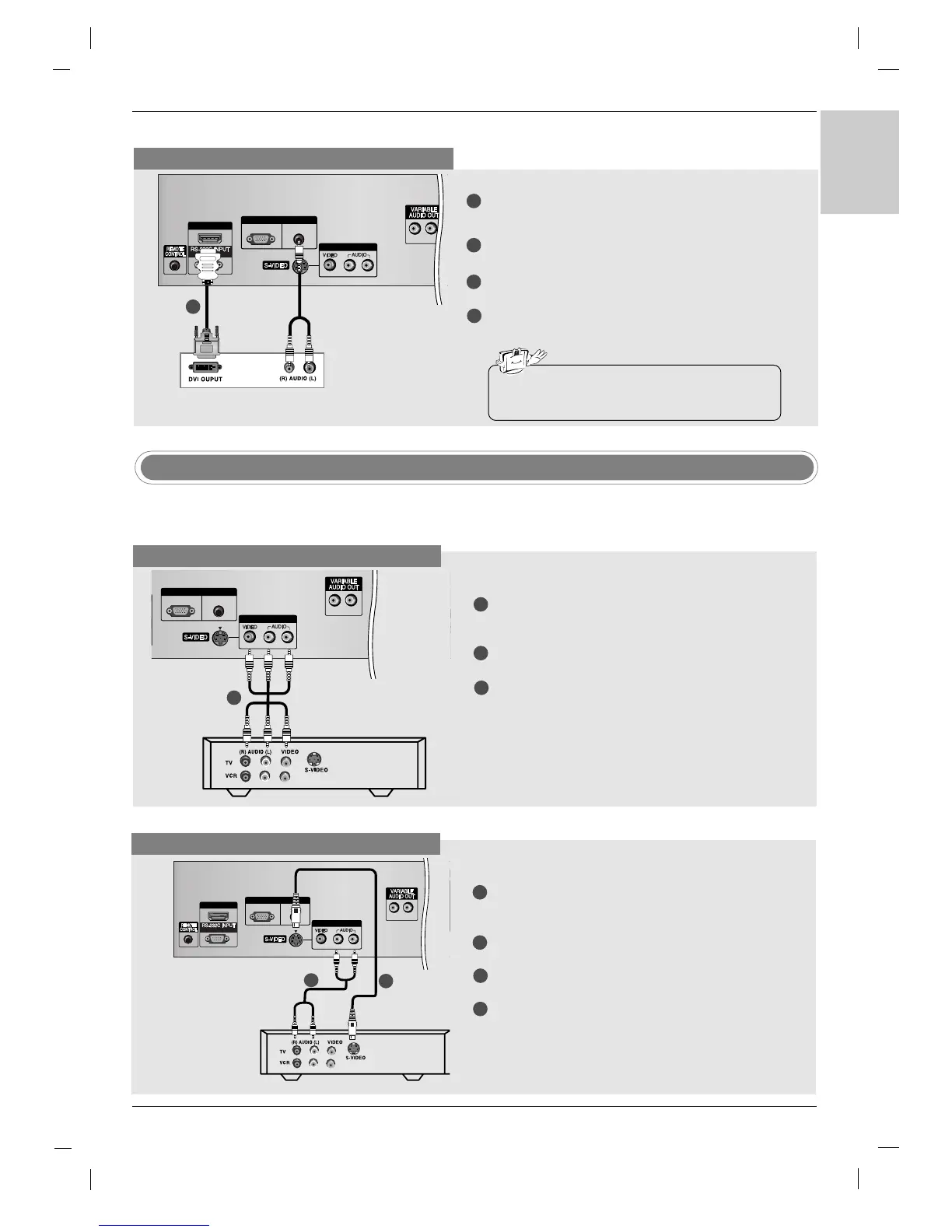

LG 32LB1R Series - Cable TV Setup

19
ENGLISH
HDMI/DVI IN
(CONTROL & SERVICE)
LR
RGB IN
AUDIO(RGB/DVI) RGB(PC-DTV)
AV IN 3
R
L
(MONO)
When connecting with a HDMI to DVI cable
1
1
2
3
Connect the DVI output of the digital set-top box to the
HDMI/DVI IN jack on the set.
Connect the audio outputs of the set-top box to the AUDIO
(RGB/DVI) jack on the set.
Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)
Select
HDMI DTV input source with using the INPUT
button on the remote control.
DTV Receiver (Set-top Box)
TV Back panel
Cable TV Setup
- After subscribing to a local cable TV service and installing a converter, you can watch cable TV programmes.
- For further cable TV information, contact a local cable service provider.
When connecting with an S-Video cable
1
2
Cable Box
HDMI/DVI IN
(CONTROL & SERVICE)
LR
RGB IN
AUDIO(RGB/DVI) RGB(PC-DTV)
AV IN 3
R
L
(MONO)
AV 1
1
2
3
4
Connect the S-VIDEO output of the Cable Box to the
S-VIDEO input on the set. The picture quality is
improved.
Connect the AUDIO jacks between TV and Cable
Box.
Select
S-Video input source with using the INPUT
button on the remote control.
Select programmes with the cable box remote con-
trol.
TV Back panel
When connecting with a RCA cable
1
Cable Box
LR
RGB IN
AUDIO(RGB/DVI) RGB(PC-DTV)
AV IN 3
R
L
(MONO)
ANT
1
2
3
Connect the AUDIO/VIDEO jacks between TV and
Cable Box. Match the jack colours (Video = yellow,
Audio Left = white, and Audio Right = red)
Select
AV 3 input source with using the INPUT button
on the remote control.
Select programmes with the cable box remote con-
trol.
TV Back panel
4
• If the STB has a DVI output and no HDMI output,
a separated audio connection is necessary.
