External Equipment Connections
External Equipment Connections
Installation Instruction
Installation Instruction
- To avoid picture noise (interference), leave an adequate distance between the VCR and TV.
- Typically a frozen still picture from a VCR. If the 4:3 picture format is used; the fixed images on the sides of the screen
may remain visible on the screen.
VCR Setup

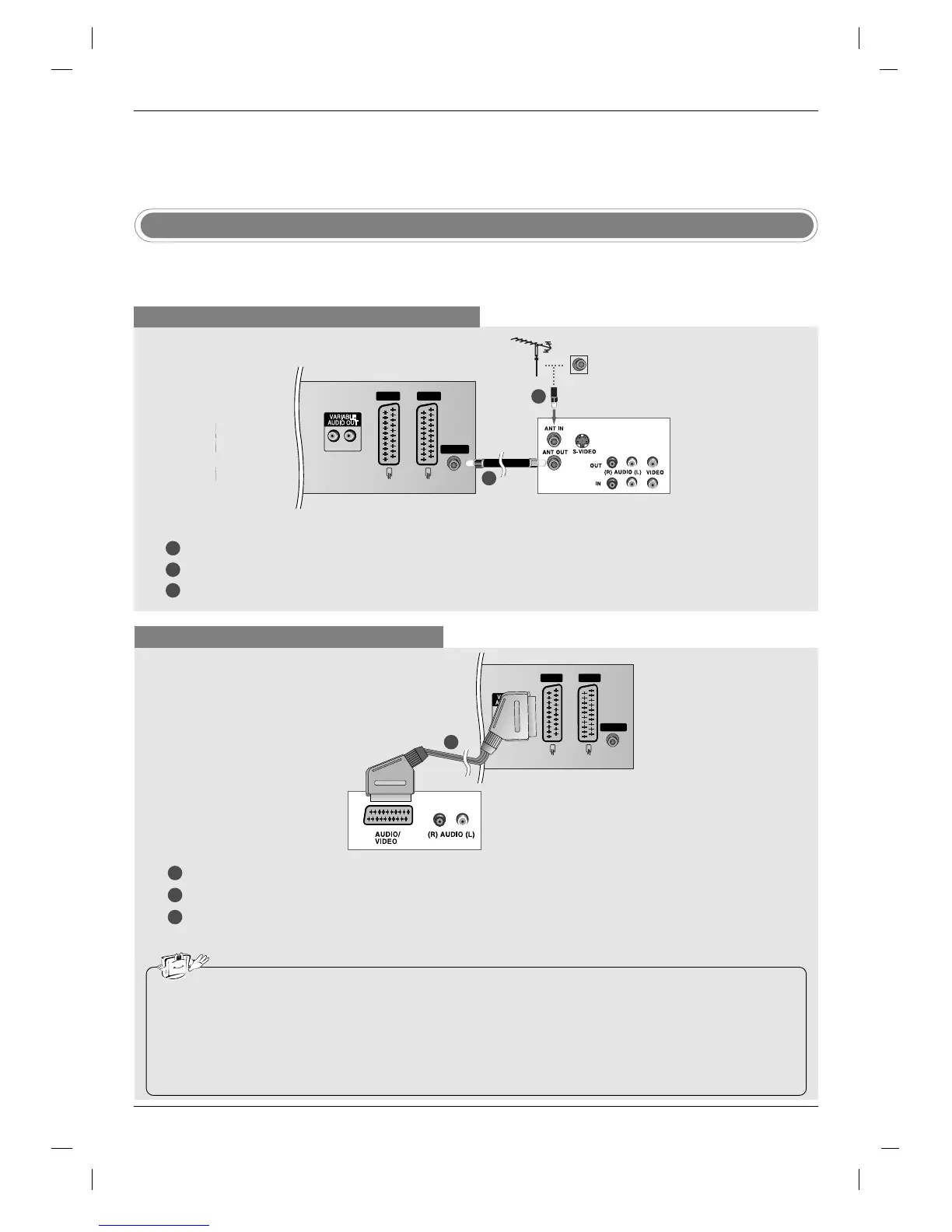

When connecting with an antenna cable
1
2
3
Connect the ANT OUT socket of the VCR to the Antenna socket on the set.
Connect the antenna cable to the ANT IN socket of the VCR.
Press the PLAY button on the VCR and match the appropriate programme between the TV and VCR for viewing.
When connecting with a Scart cable
• If your VCR outputs an AV switching signal via the AV1 or AV2 scart sockets, the set will switch to AV1 input source automati-
cally. But if you want to keep on watching TV mode, press the PR
DD
/
EE
or number buttons.
• You can also record programmes received by the TV on video tape.
• The signal type RGB (the signals red, green and blue) can only be selected for the AV1 scart socket and the AV1 input source
can be received. These signals are transmitted, for example, by a pay TV decoder, game machine or photo CD unit, etc and that
digital signal can be recorded via AV1 scart socket.
• If the AV1, AV2 scart sockets have been connected to the VCRs simultaneously, only the AV2 input source can be received.
1
2
3
Connect the scart socket of the VCR to the AV1 scart socket on the set. Please use shielded scart cable.
Insert a video tape into the VCR and press PLAY on the VCR. (Refer to the VCR owner’s manual.)
Select
AV 1 input source with using the INPUT button on the remote control.
- If connected to AV2 scart socket, select
AV 2 input source.
1
2
TV Back panel
VCR
VCR
1
TV Back panel
